Genmac LION
8.5 m Light Tower with Generator
8.5 m - 4/6 x 320 W
Generator
5000÷7800 sqm
Warranty 2
years
Shipped on Pallet
Genmac LION - Light Towers 3.5÷5 kW with 240 L Diesel Generator up to 436 h autonomy

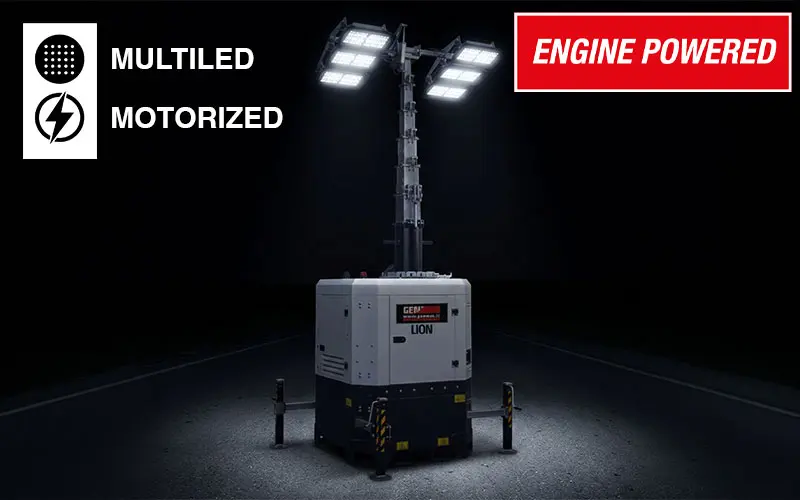

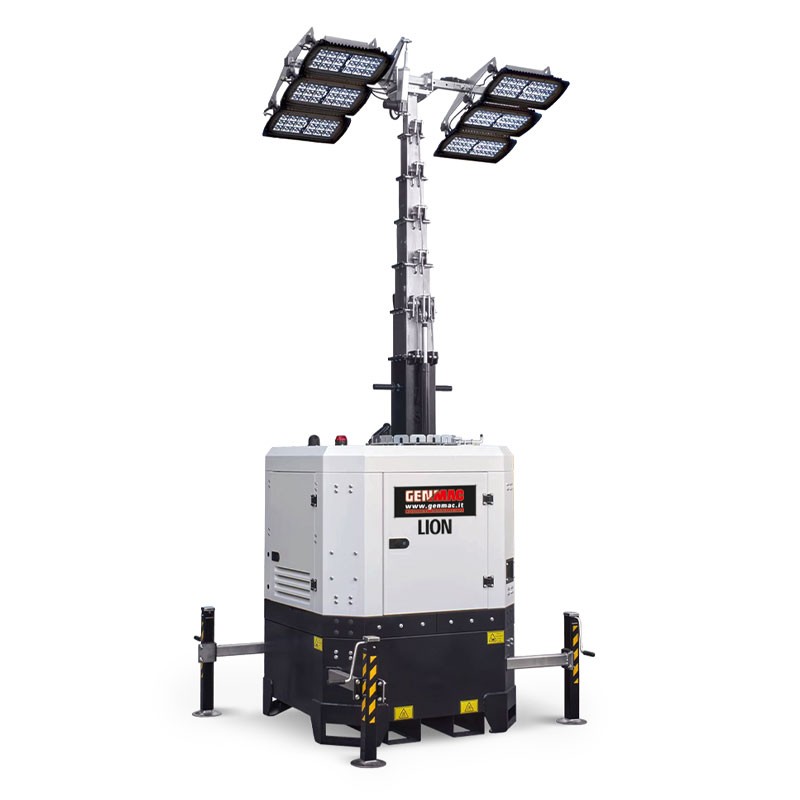

The Genmac Lion light tower is the most complete solution in the range for lighting construction sites, industrial areas, events, and emergency interventions. Available in TI9Y-M5 models with 4 LEDs x 320 W and with 6 LEDs x 320 W, it is a telescopic light tower with a hydraulic mast made of galvanized steel, 8.5 m high, and a silenced diesel generator set with a Yanmar Stage V engine.
All options are included as standard to ensure maximum operational efficiency. The advanced control system and MultiLED LED light tower technology reduce consumption and emissions, making the Lion compliant with current regulations.
Available Models

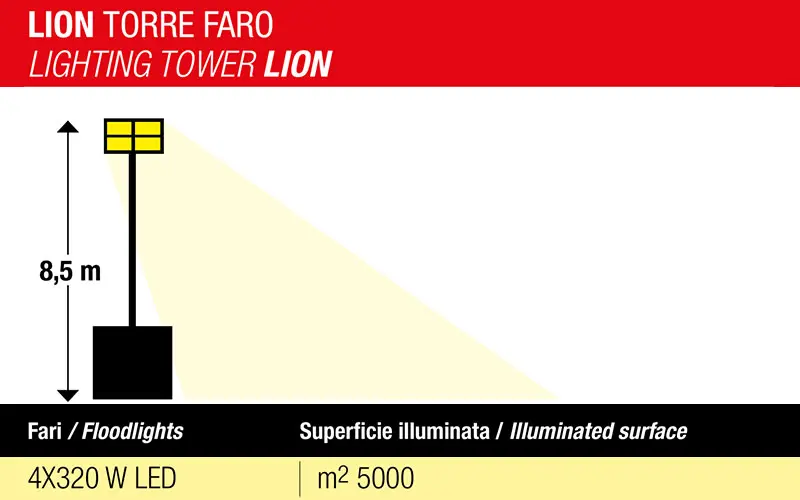

- 4 LEDs x 320 W - 5000 sqm at 20 lux / 9300 sqm at 01 lux
- 6 LEDs x 320 W - 7800 sqm at 20 lux / 13200 sqm at 01 lux
Technical Specifications
The Genmac Lion features a Diesel generator set with a 240 L tank. With a liquid-cooled engine, both available versions operate at 1500 RPM with a Linz Alumen alternator.
The 4x320W model uses the Yanmar 2TNV70 twin-cylinder engine, delivering 3.5 kW, while the 6x320W model uses the Yanmar 3TNM68 three-cylinder engine, delivering 5 kW. The 4x320W and 6x320W versions emit 180,000 and 270,000 lumens respectively. Autonomy reaches 436 hours for the 4x320W LED model and 400 hours for the 6x320W LED model. The telescopic mast can withstand wind gusts up to 110 km/h.
Features
- Telescopic galvanized steel hydraulic mast, extending up to 8.5 m
- 355° rotation of mast and light bar
- MultiLED LED lights
- On/Off switch for each light
- Silenced Yanmar Stage V diesel engine (61 dBA at 7 m)
- DeepSea L401 control unit
- Twilight sensor with automatic on/off
- 4 extendable and height-adjustable stabilizers
- Forklift pockets and central lifting hook
- Autonomy up to 400 / 436 hours
Technical Data
| 4 x 320 W | 6 x 320 W | |
| Power Source | Diesel | Diesel |
| Lumens | 180000 lm | 270000 lm |
| Maximum Extension | 8.5 m | 8.5 m |
| Power | 3.5 kW | 5 kW |
| Lifting | Hydraulic | Hydraulic |
| Generator | Included | Included |
| Maximum Reachable Area | 5000 sqm at 20 lux / 9300 sqm at 01 lux | 7800 sqm at 20 lux / 13200 sqm at 01 lux |
| Rotation | 355° | 355° |
| Structure | Fixed with forklift pockets | Fixed with forklift pockets |
| Stabilizers | 4 adjustable and retractable stabilizers | 4 adjustable and retractable stabilizers |
| Insulation Class | I | I |
| Protection Class | IK 08 | IK 08 |
| Photobiological Risk | RG 0 | RG 0 |
| Color Temperature | 5000 K | 5000 K |
| Operating Temperature | -40° / +50 °C | -40° / +50 °C |
| Twilight Sensor | YES | YES |
| Dimensions | 112 x 112 x 240 cm | 112 x 112 x 240 cm |
| Weight | 765 kg | 850 kg |
