Genmac BATTRIX
8.5 m Light Tower + Generator and Road Trailer
MPN: TI9BY-M5
8.5 m - 6 x 100 W
Generator
3000 m²
Warranty 2
years
Shipped on Pallet

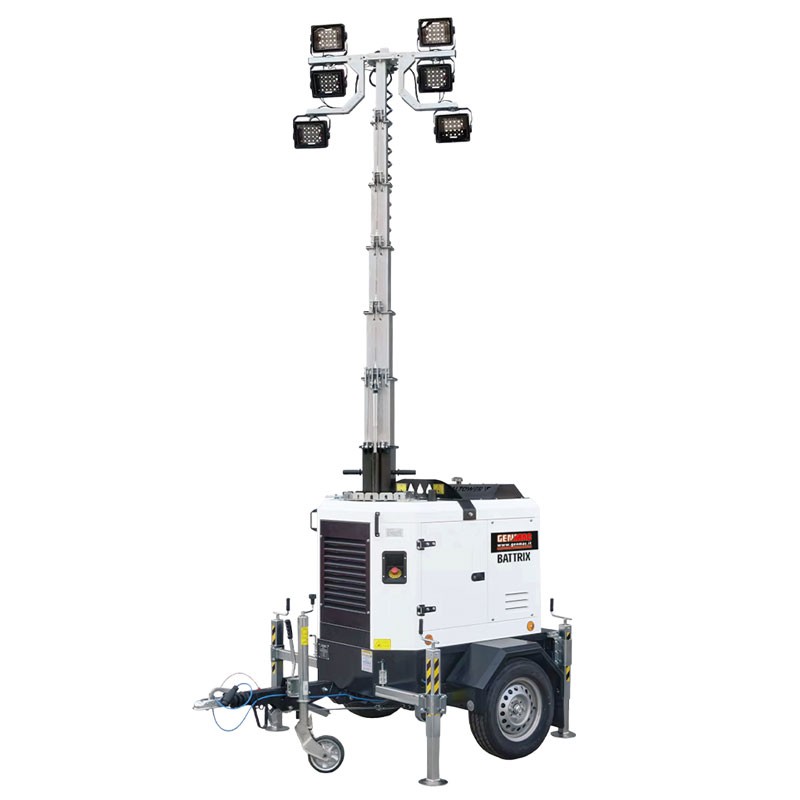

Genmac BATTRIX - 3.5 kW Hydraulic Lifting Telescopic Light Tower up to 8.5 m
The Battrix light tower by GENMAC is designed for construction sites, large events, and emergency interventions where powerful lighting and full operational autonomy are required. It features an 8.5 m galvanized steel telescopic mast and a soundproofed Yanmar Stage V diesel generator set at only 61 dB(A), equipped with 6 x 100 W LED floodlights for an illuminated area of up to 3000 m².
The hydraulic lifting of the light mast is powered by the integrated lithium battery pack, enabling zero-noise, zero-emission maneuvers and up to 11.3 hours of autonomous operation. A complete solution for those seeking a robust yet silent light tower.
Technical Specifications
The Genmac Battrix features a Yanmar 2TNV70 Stage V diesel engine, 1500 RPM, twin-cylinder, liquid-cooled for low wear over time. The Linz Alumen alternator delivers a power output of 3.5 kW at 230 V, sufficient to simultaneously power all floodlights and onboard accessories. Energy is managed and distributed via the DeepSea L401 MKII control unit, which handles starting, monitoring, and electrical protections. The light mast lifting is managed by the 25.9 Vdc 200 Ah lithium battery pack, with a charging time of 4 hours and up to 11.3 hours of battery autonomy.
With 6 x 100 W LED floodlights for a total of 80,000 lumens, this LED light tower illuminates up to 3000 m², an ideal output for construction sites, yards, and large events. The 110 L diesel tank ensures up to 200 hours of continuous operation, while the structure can withstand wind gusts up to 110 km/h and features 4 height-adjustable stabilizers. Equipped with an approved road trailer.
Features
- 8.5 m telescopic mast in galvanized steel with hydraulic lifting
- 350° rotation of the light mast
- 6x100W LEDs – 80,000 lumens
- Illuminated area 3000 m²
- Yanmar 2TNV70 Stage V diesel engine, 1500 rpm, liquid-cooled
- Soundproof generator set at 61 dB(A) at 7 m distance
- 25.9 Vdc 200 Ah lithium battery pack - up to 11 h 30 of battery autonomy
- DeepSea L401 MKII control unit with GPS remote control and monitoring
- 4 extendable and height-adjustable stabilizers
- AMOSS KIT – mast safety system with handbrake lock
- Mounted on an approved road trailer with lockable doors
Technical Data
| Power Supply | Diesel + Battery |
| Floodlights | LED 6 x 100 W |
| Lumens | 80000 lm |
| Maximum Extension | 8.5 m |
| Lifting | Hydraulic |
| Generator | Included |
| Max Reachable Area | 3000 m² |
| Rotation | 350° |
| Structure | Mobile |
| Stabilizers | 4 adjustable and retractable stabilizers |
| Insulation Class | I |
| Protection Class | IK 08 |
| Photobiological Risk | RG 0 |
| Color Temperature | 5000 K |
| Operating Temperature | - 30 + 50° C |
| Twilight Sensor | - |
| Dimensions | 237 x 147 x 240 cm |
| Weight | 1000 kg |
