Genmac BRILLEN
7 m Light Tower + Road Trailer and Generator
MPN: 03102
7 m - 6 x 160 W
Generator
4300 m²
Warranty 2
years
Shipped on Pallet

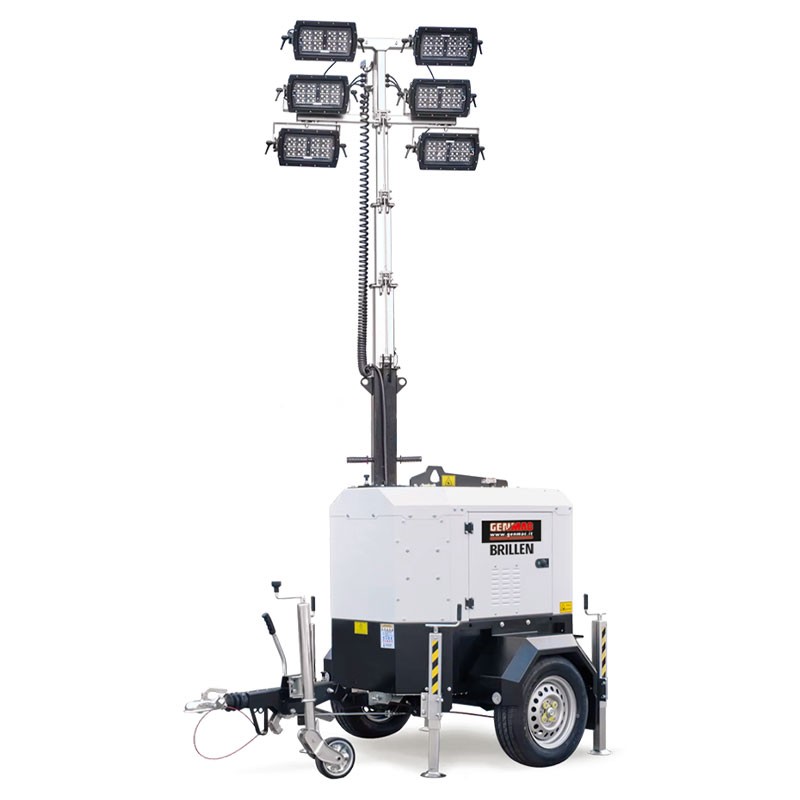

Genmac BRILLEN - 7 m Diesel Multiled Light Tower with 110 L Tank

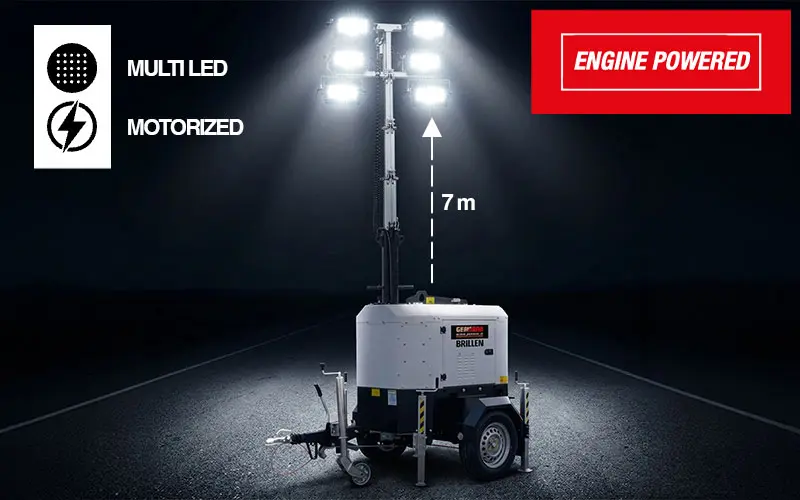

The Genmac Brillen Light Tower is the professional solution for illuminating construction sites, work areas, and operational zones that require light for many consecutive hours. With a 7-meter telescopic mast made of galvanized steel with manual lifting, it features 6 x 160 W LED lights, capable of illuminating up to 4300 m².
Designed as a diesel LED light tower, it has a Stage V Engine and guarantees constant performance with minimal downtime thanks to the large 110 L tank. The twilight sensor for automatic switching on and off and the road trailer for transport make it a practical choice for those looking for a ready-to-use wheeled light tower.
Technical Specifications

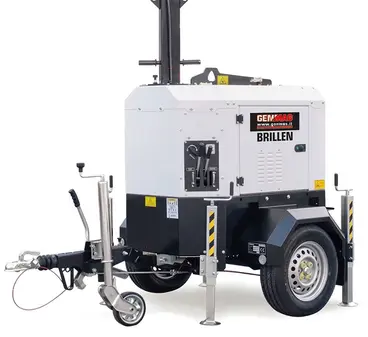

The Genmac Brillen is powered by a 4 kW diesel generator set operating at 1500 rpm, with a 110-liter tank for prolonged use. The unit is silenced, with a noise level of 61 dBA at 7 meters, and is managed by the DeepSea DSE 3110 control unit.

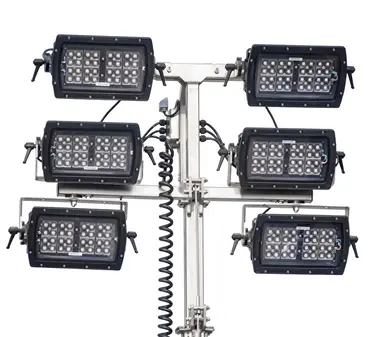

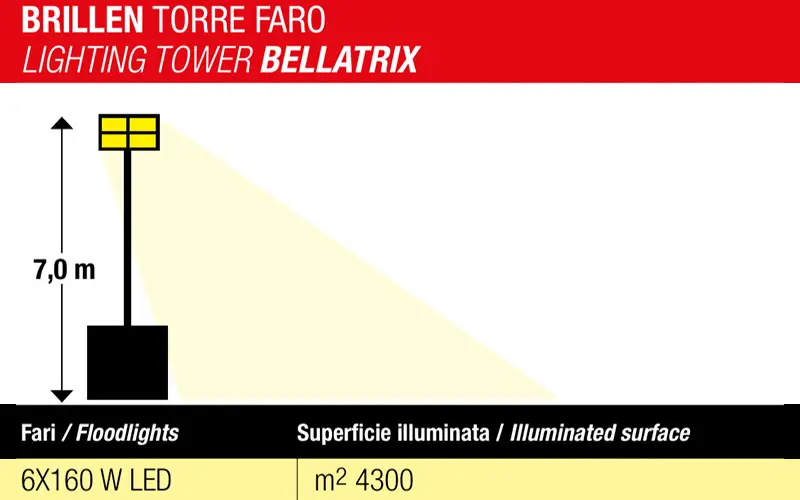

The maximum height reaches 7 meters with manual lifting of the galvanized steel telescopic mast. The lighting column rotates 350° and features 6 LED projectors of 160 W each, for a luminous output of 4300 m². The tower is mounted on an approved road trailer, with 4 extendable and height-adjustable stabilizers.
Features
- 7 m telescopic mast in galvanized steel
- Manual lifting
- 350° rotation of the lighting column
- 6 x 160 W LED lights, 4300 m²
- On/Off switch for each light
- Silenced (61 dBA at 7 m)
- DeepSea DSE 3110 control unit
- Stage V Engine
- Diesel powered
- 110-liter tank
- Approved road trailer with 4 stabilizers
- Twilight sensor and battery disconnect switch
Technical Data
| Power Supply | Diesel |
| Lights | LED 6 x 160 W |
| Lumens | 135000 lm |
| Maximum Extension | 7 m |
| Lifting | Manual |
| Generator | Included |
| Max Reachable Area | 4300 m² |
| Rotation | 350° |
| Structure | Mobile |
| Stabilizers | 4 adjustable and retractable stabilizers |
| Insulation Class | I |
| Protection Class | IK 08 |
| Photobiological Risk | RG 0 |
| Color Temperature | 5000 K |
| Operating Temperature | - 30 + 50° C |
| Twilight Sensor | YES |
| Dimensions | 230 x 160 x 250 cm |
| Weight | 605 kg |
