Multipower MI85YBHC
Diesel/Battery Powered Light Tower

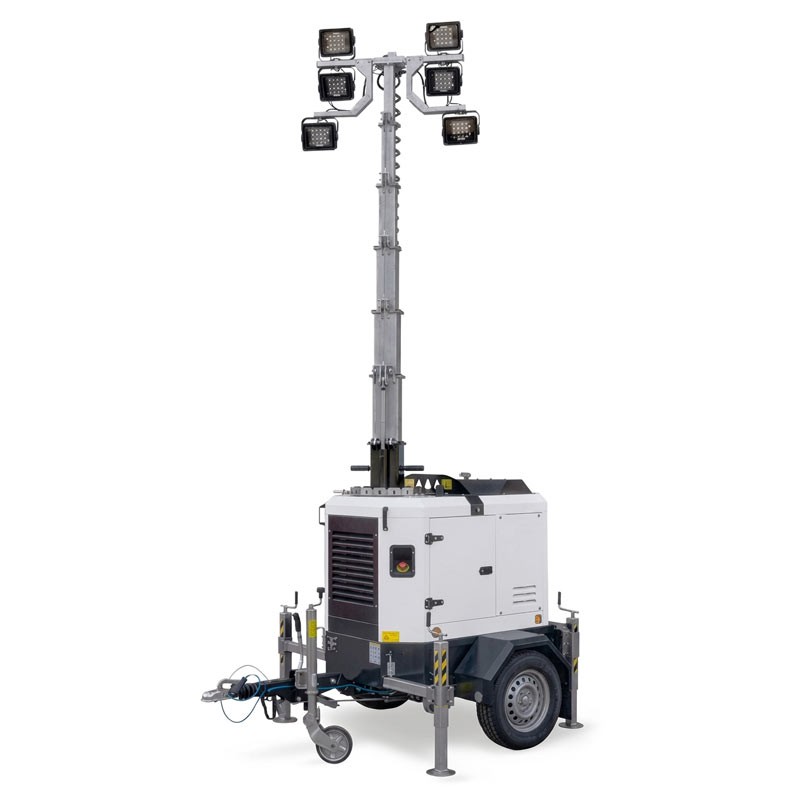

Multipower MI85YBHC - Professional Hybrid LED Light Tower

Multipower MI85YBHC, a professional hybrid LED light tower for continuous and efficient lighting on construction sites, industrial plants, mining operations, infrastructure projects, and emergency situations.

6 x 100 W MultiLED floodlights, luminous flux up to 80000 lm, illuminated area up to 4400 m² at 1 lux.

Hybrid system with batteries and Yanmar Stage V diesel generator set, which activates only when necessary, for reduced consumption, emissions, and operating costs.

8.5 m hydraulic mast, 350° rotation, wind resistance up to 110 km/h, and GPS remote control.

Functional Specifications

High-Efficiency LED Lighting

The 6 x 100 W LED floodlights produce up to 80000 lumens, ensuring powerful and uniform illumination with reduced energy consumption.

Large Illuminated Area

The professional light tower illuminates up to 3000 m² at 20 lux and 4400 m² at 1 lux, providing extensive coverage in operational areas.

Intelligent Hybrid System

The power supply combines a battery pack and a diesel generator set: the engine automatically starts when needed for recharging or to ensure power continuity.

Telescopic Hydraulic Mast

The galvanized steel telescopic hydraulic mast reaches a maximum height of 8.5 m, allowing for optimal positioning of the floodlights.

Automatic Lighting Control

The floodlights can be manually controlled via three switches or through automatic dusk-to-dawn activation, for simplified lighting management.

Stage V Diesel Engine

The generator set is equipped with a Yanmar 2TNV70 Stage V engine, twin-cylinder, liquid-cooled, with an autonomy of up to 200 hours.

Remote Management and Control

The ComAp AMF25 control unit, the standard mains selector, and GPS remote control enable advanced management of the machine and its operation.

Stability and Resistance

The structure is designed to operate in demanding conditions, with wind resistance up to 110 km/h, four extendable and height-adjustable stabilizers, and a road-legal trailer chassis.

Professional Handling

The wheeled frame features forklift pockets, a central lifting eye, and a design optimized for easy transport, positioning, and handling on site.

Features

• Professional hybrid LED light tower
• 6 x 100 W MultiLED floodlights
• Luminous flux up to 80000 lm
• Illuminated area up to 4400 m² at 1 lux
• 8.5 m telescopic hydraulic mast
• 350° mast rotation
• Hybrid power system: batteries + diesel
• Yanmar 2TNV70 Stage V engine
• Engine autonomy up to 200 h
• GPS remote control
• Automatic dusk-to-dawn activation
• ComAp AMF25 control unit
• Alternator power 2.7 kW
• 230V power supply
• 110 L diesel tank with spill containment
• Wind resistance up to 110 km/h
• Noise level 61 dB(A) at 7 m
• 4 extendable and adjustable stabilizers
• Road-legal trailer chassis
• Battery isolator and oil extraction pump included
