Multipower MI85YHC
8.5 m LED Light Tower with Built-in Generator
MPN: 10038
Manual lifting up to 8.5 m
180000 Lumens - 9300 m²
Built-in generator
Warranty 2 years
Shipped on Pallet

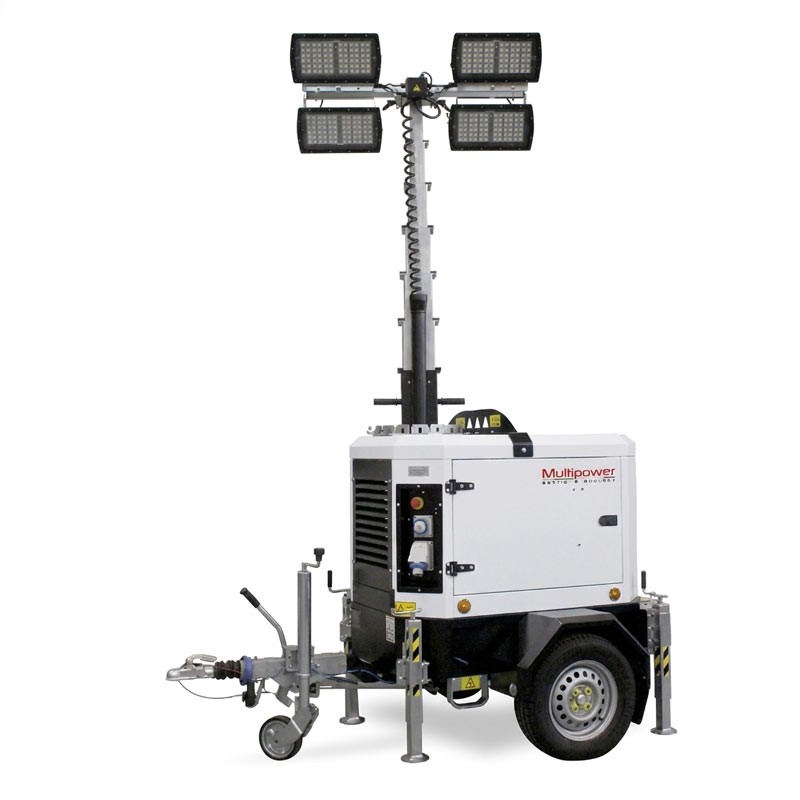

Multipower MI85YHC - LED Light Tower with Built-in Generator and Hydraulic Mast
Multipower MI85YHC, a professional LED light tower with a built-in diesel generator, for autonomous and continuous lighting on construction sites, infrastructure projects, industrial activities, mining, events, and emergency response.
4 x 320 W LED floodlights, luminous flux up to 180,000 lm, illuminating up to 9,300 m² at 1 lux.
8.5 m telescopic hydraulic mast, 355° rotation, wind resistance up to 110 km/h.
Yanmar Stage V engine, 3.5 kW power, 110 L tank, and autonomy up to 200 h.
Functional Specifications
High-efficiency LED Lighting
The 4 x 320 W MultiLED floodlights produce up to 180,000 lumens, ensuring powerful illumination with low energy consumption.
Wide Illuminated Area
The professional light tower illuminates an area up to 9,300 m² at 1 lux, ideal for large operating areas and construction sites.
Hydraulic Telescopic Mast
The hydraulic telescopic mast reaches a maximum height of 8.5 m and allows for quick adjustment of the lighting setup.
355° Rotation
The lighting head offers 355° rotation, enabling effective aiming of the light beam over the work area.
Integrated Diesel Generator
The integrated diesel generator uses a liquid-cooled, two-cylinder Yanmar 2TNV70 Stage V engine, with a power output of 3.5 kW and 230V supply.
High Operational Autonomy
The 110 L diesel tank provides an autonomy of up to 200 h, reducing the frequency of refueling during prolonged use.
Automatic Twilight Control
The floodlights can be activated via automatic twilight control, in addition to manual management with two ON/OFF switches.
Professional Use Structure
The wheeled chassis integrates 4 extendable and height-adjustable stabilizers, forklift pockets, and a central lifting eye, ensuring convenience in handling and positioning operations.
Weather Resistance
The structure and the galvanized steel mast are designed for use in demanding operating conditions, with resistance to wind up to 110 km/h.
Management and Monitoring
The DeepSea L401 MKII control unit and the standard mains selector simplify the management of the unit and the monitoring of key operational functions.
Features
- Professional LED light tower with integrated diesel generator
- 4 x 320W MultiLED floodlights
- Maximum luminous flux 180,000 lm
- Illuminated area up to 9,300 m² at 1 lux
- Telescopic hydraulic mast up to 8.5 m
- 355° floodlight rotation
- Yanmar 2TNV70 Stage V twin-cylinder engine
- Generator power 3.5 kW
- 230V power supply
- 110 L diesel tank
- Engine autonomy up to 200 h
- Noise level 61 dB(A) at 7 m
- Wind resistance up to 110 km/h
- DeepSea L401 MKII control unit
- Automatic twilight activation
- Galvanized steel mast
- Approved road trailer
- 4 extendable and adjustable stabilizers
- Battery isolator and oil extraction pump included
Technical Data
| Power Supply | Diesel |
| Engine | Yanmar 2TNV70 1500 RPM Stage V |
| Cooling | Liquid |
| Cylinders | 2 |
| Output Voltage | 230V |
| Power | 3.5 kW |
| Autonomy | 200 h |
| Control Unit | L401 MKII DeepSea |
| Mains Selector | Optional |
| Tank | 110 L with liquid containment basin |
| Illuminated Area | 5000 m² 20 lux / 9300 m² 01 lux |
| Light Type | MultiLED |
| Floodlights | 4x320W LED |
| Lumens | 180000 lm |
| Lifting | Self-braking winch |
| Rotation | 355° |
| Maximum Height | 8.5 m |
| Wind Resistance | 110 km/h |
| Alternator | Linz Allumen |
| Integrated Trailer | Approved road type |
| Noise Level | 61 dB |
| Dimensions | 236 x 149 x 241 cm |
| Weight | 855 kg |
