Multipower MI85YMC
8.5 m LED Light Tower with Integrated Generator
MPN: 10039
Manual Lifting up to 8.5 m
180000 Lumens - 9300 m²
Integrated Generator
Warranty 2
years
Shipped on Pallet

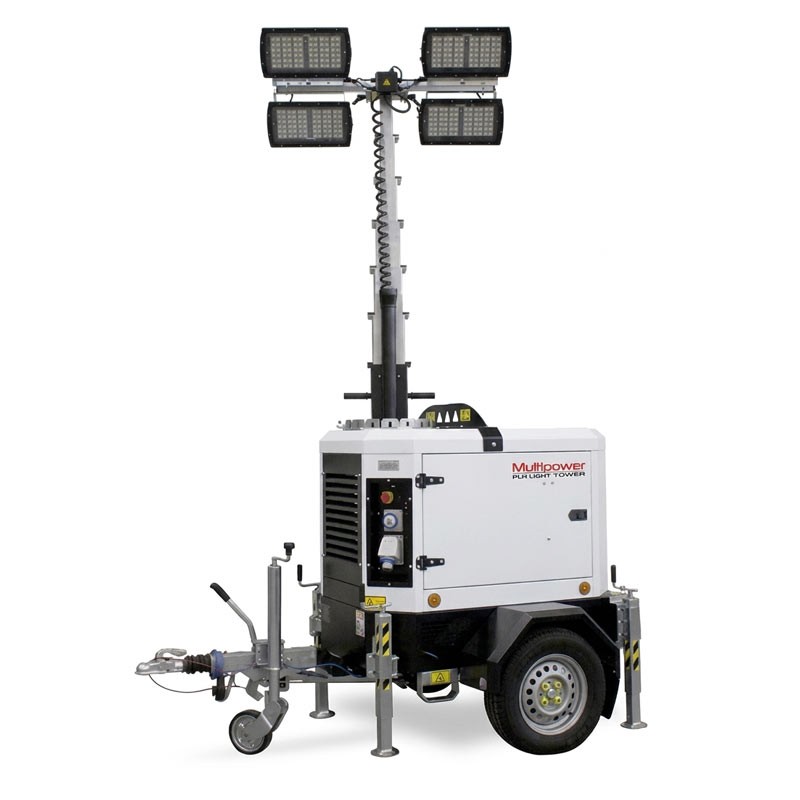

Multipower MI85YMC - 8.5 m LED Light Tower with Integrated Generator
Multipower MI85YMC professional LED light tower with integrated 3.5 kW diesel generator and 4 x 320 W MultiLED floodlights.
Light output up to 180000 lm and illuminated area up to 9300 m².
Manual telescopic mast up to 8.5 m and 350° rotation, Yanmar Stage V engine for 182 h of autonomy.
For construction sites, industry, infrastructure, mining operations, events, and emergency response.
Functional Specifications
High-efficiency LED Lighting
The 4 x 320 W LED floodlights produce up to 180000 lumens, ensuring professional and uniform lighting with low consumption.
Large Illuminated Area
The LED light tower provides an illuminated area up to 9300 m² at 1 lux, ideal for large operating areas and construction sites.
Integrated Diesel Generator
The built-in generator set provides 3.5 kW at 230V, making the light tower fully autonomous and suitable for use without a mains power supply.
Yanmar Stage V Engine
The liquid-cooled, two-cylinder Yanmar 2TNV70 Stage V engine ensures efficiency, reliability, and reduced emissions for prolonged professional use.
High Operational Autonomy
The 100 L diesel tank allows for up to 182 hours of autonomy, reducing the frequency of refueling during work shifts.
Professional Telescopic Mast
The galvanized steel telescopic mast reaches a maximum height of 8.5 m, with lifting via a self-braking winch and 350° rotation.
Manual and Automatic Start
The floodlights can be controlled via 2 manual ON/OFF switches or through automatic activation with a dusk sensor.
Outdoor Use Structure
The structure is designed for demanding operating conditions and ensures wind resistance up to 110 km/h.
Handling and Transport
The integrated slow-tow trailer, forklift slots, central lifting hook, and 4 extendable and adjustable stabilizers facilitate handling, positioning, and stabilization.
Electronic Control
The DSE 3110 DeepSea control unit ensures reliable management of the generator set's main operating parameters.
Features
- Professional LED light tower with integrated generator
- 4 x 320 W MultiLED floodlights
- Light output up to 180000 lm
- Illuminated area up to 9300 m²
- 3.5 kW 230 V diesel generator
- Yanmar 2TNV70 Stage V engine
- Up to 182 hours of autonomy
- 100 L fuel tank
- 8.5 m manual telescopic mast
- 350° mast rotation
- Wind resistance up to 110 km/h
- Manual and automatic dusk-activated floodlight start
- DSE 3110 DeepSea control unit
- Noise level 61 dB(A) at 7 m
- Integrated slow-tow trailer (for construction sites)
- 4 extendable and adjustable stabilizers
- Forklift lifting slots
- Central lifting hook
- Linz Allumen alternator
- Liquid cooling
- Battery isolator included
Technical Data
| Power Supply | Diesel |
| Engine | Yanmar 2TNV70 1500 RPM Stage V |
| Cooling | Liquid |
| Cylinders | 2 |
| Output Voltage | 230V |
| Power | 3.5 kW |
| Autonomy | 182 h |
| Control Unit | Comap AMF5 |
| Mains Selector | Optional |
| Tank | 100 L with containment basin |
| Illuminated Area | 5000 m² 20 lux / 9300 m² 01 lux |
| Light Type | MultiLED |
| Floodlights | 4x320W LED |
| Lumens | 180000 lm |
| Lifting | Self-braking winch |
| Rotation | 350° |
| Maximum Height | 8.5 m |
| Wind Resistance | 110 km/h |
| Alternator | Linz Allumen |
| Integrated Trailer | Slow-tow |
| Noise Level | 61 dB |
| Dimensions | 203 x 114 x 249 cm |
| Weight | 540 kg |
