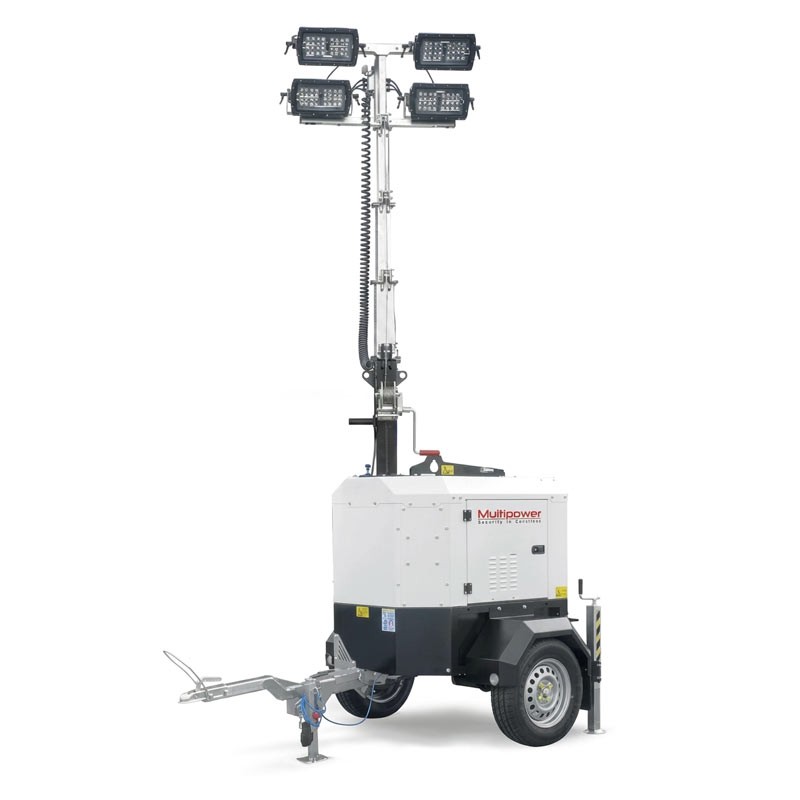

Multipower MI70YMC
7 m LED Light Tower with Built-in Generator

Multipower MI70YMC - 7 m LED Light Tower with Built-in Generator

Multipower MI70YMC professional LED light tower with 3.5 kW Yanmar Stage V diesel generator and 6 x 160 W MultiLED floodlights.

Light output up to 135000 lm and illuminated area up to 7000 m² at 01 lux.

Manual telescopic mast up to 7 m high, 350° rotation, and wind resistance up to 110 km/h.

110 L tank, up to 200 h of autonomy, approved road-towable chassis, and adjustable stabilizers.

For construction sites, industrial plants, mining activities, infrastructure, and emergency use.

Functional Specifications

High-efficiency LED lighting

The 6 x 160 W MultiLED floodlights produce up to 135000 lumens, ensuring powerful and uniform illumination with low energy consumption.

Large illuminated area

The LED light tower illuminates up to 4300 m² at 20 lux and 7000 m² at 01 lux, adapting to different operational needs.

7-meter telescopic mast

The galvanized steel manual telescopic mast reaches a maximum height of 7 m and is operated via a self-braking winch.

350° floodlight rotation

The mast rotation up to 350° allows for quick and precise orientation of the lighting onto the work area.

Integrated diesel generator

The generator set with a Yanmar 2TNV70 Stage V engine, two-cylinder, and liquid-cooled, provides autonomous 230V power with a 3.5 kW output.

High operational autonomy

The 110 L diesel tank allows for an engine autonomy of up to 200 h, reducing refueling frequency during prolonged use.

Manual and automatic control

Floodlight activation can be managed manually via 3 ON/OFF switches or automatically using a dusk sensor.

Control and protection

The ComAp AMF5 control unit manages the main operational functions, while the liquid containment bund contributes to the safety and management of the generator set.

Mobility and stability

The approved road trailer, provisions for forklift lifting, and central lifting eye facilitate transport and handling. The 3 extendable and adjustable stabilizers ensure stable positioning.

Use in demanding environmental conditions

The robust structure and galvanized mast are designed for professional outdoor use, with wind resistance up to 110 km/h and low noise levels at 61 dB(A) at 7 m.

Features

• Professional LED light tower
• Integrated diesel generator
• 6 x 160 W MultiLED floodlights
• Light output up to 135000 lm
• Illuminated area up to 7000 m² at 01 lux
• 7 m manual telescopic mast
• 350° mast rotation
• Yanmar 2TNV70 Stage V engine
• Generator power 3.5 kW at 230V
• Autonomy up to 200 h
• 110 L fuel tank
• Manual or automatic dusk-activated floodlight start
• ComAp AMF5 control unit
• Approved road trailer
• 2+1 extendable and adjustable stabilizers
• Wind resistance up to 110 km/h
• Linz Allumen alternator
• Battery isolator and oil extraction pump included
