Multipower MI7000YMC
7 m LED Light Tower with Integrated Generator

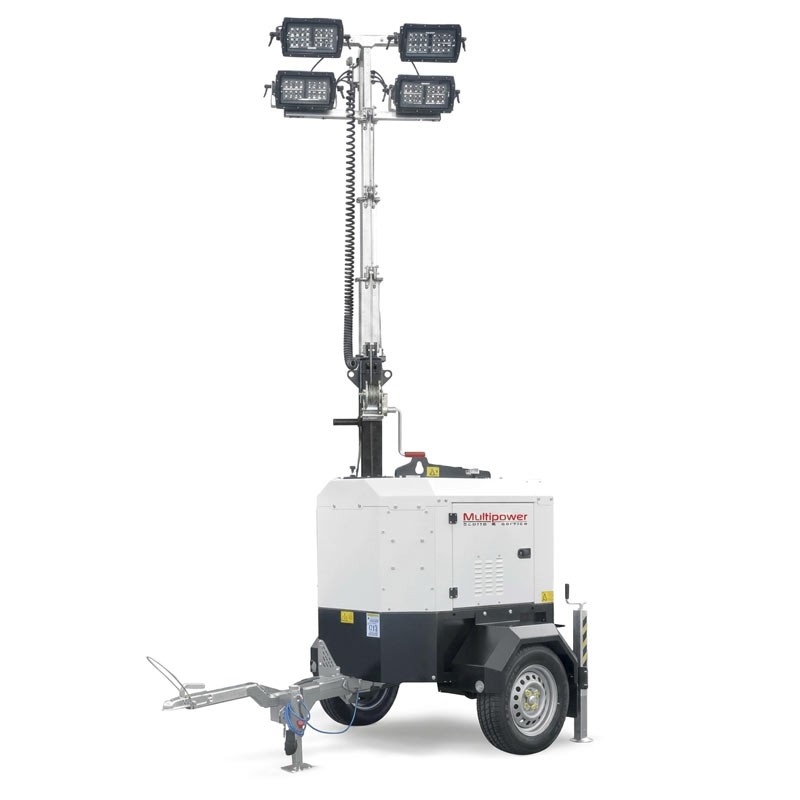

Multipower MI7000YMC - 7 m LED Light Tower with Integrated Generator

Multipower MI7000YMC, a professional LED light tower with an integrated diesel generator, for autonomous and reliable lighting on construction sites, industrial plants, infrastructure, mining activities, events, and emergency interventions.

4 x 320 W MultiLED floodlights producing up to 180,000 lumens, with an illuminated area of up to 9300 m² at 1 lux.

3.5 kW Yanmar L70V Stage V engine, up to 72 h autonomy.

Manual telescopic mast up to 7 m with 350° rotation.

Road-towable structure, adjustable stabilizers, and 230V power supply.

Functional Specifications

High-efficiency LED Lighting

The 4 x 320 W LED floodlights ensure high luminous intensity with 180,000 lumens, optimizing consumption and operational life.

Large Illuminated Area

The professional light tower illuminates up to 5000 m² at 20 lux and 9300 m² at 1 lux, providing effective coverage for extended work areas.

7-meter Telescopic Mast

The galvanized steel telescopic mast reaches a maximum height of 7 m and is equipped with a self-braking winch lifting system.

350° Floodlight Rotation

The mast rotation system up to 350° allows directing the lighting onto the operational area according to site requirements.

Manual and Automatic Start-up

The floodlights can be managed via 2 manual ON/OFF switches or through automatic start-up with a photocell sensor.

Integrated Diesel Generator

The generator set with a Yanmar L70V Stage V engine, single-cylinder, and air-cooled, delivers 3.5 kW at 230V and offers up to 72 hours of autonomy.

AMF5 Automatic Control

The ComAp AMF5 control unit and the standard mains selector ensure professional management of the generator set and power supply.

Professional Use Structure

The road-towable frame integrates 2+1 extendable and height-adjustable stabilizers, forklift pockets, and a central lifting eye for easy handling and positioning.

Weather Resistance

The robust construction is designed for outdoor use and ensures resistance to wind up to 110 km/h.

Operational Cost Containment

High-efficiency LED technology and the Stage V engine help contain fuel consumption, emissions, and operating costs while maintaining high luminous performance.

Features

• Professional LED light tower
• Integrated diesel generator
• 4 x 320 W MultiLED floodlights
• Luminous power up to 180,000 lumens
• Illuminated area up to 9300 m² at 1 lux
• Yanmar L70V 3000 RPM Stage V engine
• Generator power 3.5 kW
• 230V power supply
• Up to 72 h autonomy
• Manual telescopic mast up to 7 m
• 350° mast rotation
• Lifting with self-braking winch
• Manual and automatic photocell start-up for floodlights
• ComAp AMF5 control unit
• Standard mains selector
• Noise level 65 dB(A) at 7 m
• 40 L diesel tank with spill containment
• Wind resistance up to 110 km/h
• Approved road trailer
• 2+1 extendable and adjustable stabilizers
• Battery isolator and oil extraction pump included
