Harry HR 5200 SXQ
4-in-1 Multifunction Lawnmower, 173 cc Engine

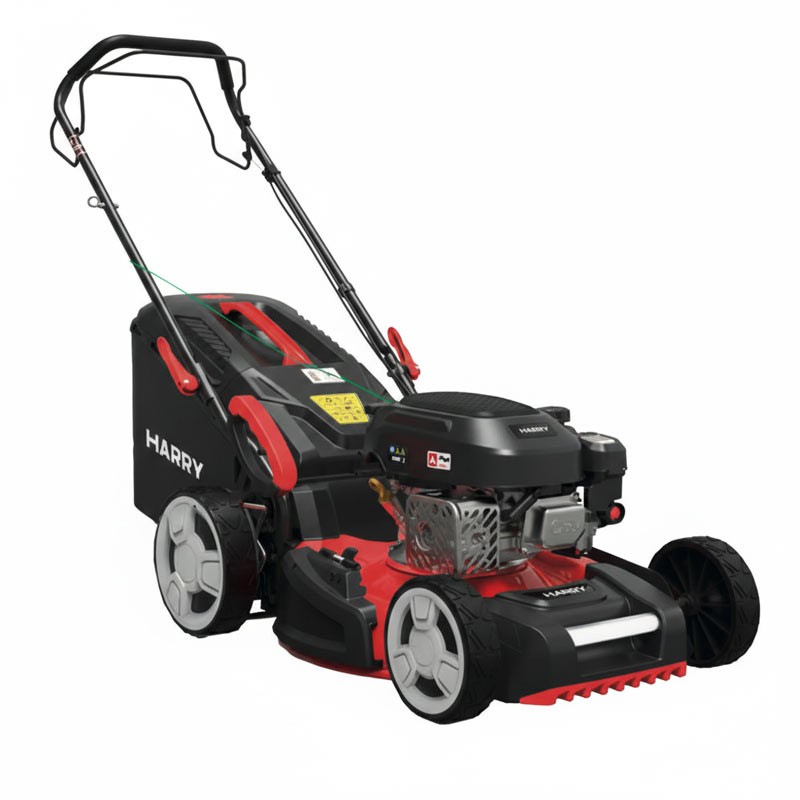

Harry HR 5200 SXQ - 4-in-1 Multifunction Petrol Lawnmower with 173cc Engine

The Harry HR 5200 SXQ is a multifunctional petrol lawnmower designed for professional use in greenery care and management. It is aimed specifically at gardeners , maintenance workers , and operators who work on medium-large grassy areas and require a solid, reliable, and high-performance machine. The steel frame combined with large wheels ensures mechanical resistance, operational stability, and ease of movement even on uneven or uneven terrain. The integration of Vacuum Flow technology and the 4-in-1 system allows for high-quality cutting and flexible grass management, offering side discharge, rear discharge, grass collection, and mulching functions in a single machine.

Thanks to a 52 cm cutting width and the 173 cc SP175 OHV engine, the Harry HR 5200 SXQ lawnmower ensures consistent performance and adequate working capacity for areas up to 1600 m² . The balance between engine power, cutting performance and integrated safety devices, such as the stone guard , makes this model an ideal choice for professionals who require precision work, operational continuity and a long life even in intensive use.

TECHNICAL SPECIFICATIONS

The Harry HR 5200 SXQ petrol lawnmower is equipped with a 173 cc SP175 OHV engine, capable of delivering approximately 3.5 kW (4.5 HP) of power at 3600 rpm , allowing it to work effectively even on dense lawns and large surfaces. The single-speed traction ensures smooth and well-controlled progress, reducing operator fatigue, while the steel frame gives the machine high structural strength and a long operating life even in intensive work environments.

In terms of cutting performance, the model offers a working width of 52 cm and a 65 L collection bag , sized to limit stops while mowing. The centralized cutting height adjustment system, adjustable from 30 to 80 mm , allows the machine to be quickly adapted to different lawn conditions. Weighing 29.5 kg and equipped with large-diameter wheels , the lawnmower maintains excellent maneuverability and stability. It is recommended for the maintenance of green areas up to 1600 m² , making it suitable for both professional and semi-professional use, where construction reliability, precision and advanced functionality are required.

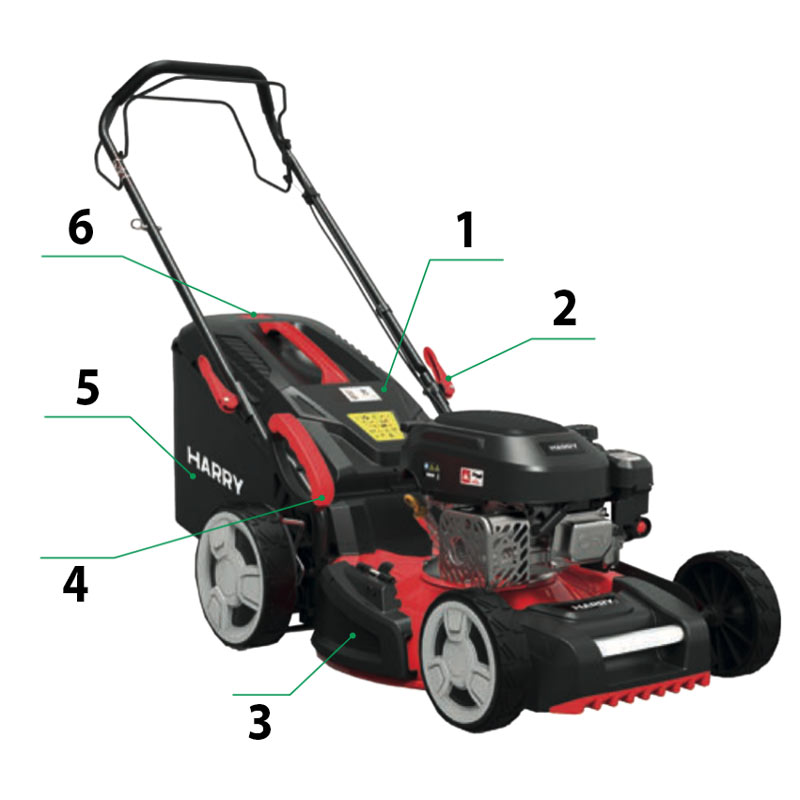

1. Integrated safety guard
2. Folding handle
3. Side exhaust
4. Centralized cutting height adjustment
5. Canvas collection bag with dustproof top
6. Full bag indicator

FUNCTIONAL SPECIFICATIONS

Vacuum Flow technology for optimised collection performance

Vacuum Flow technology is designed to generate continuous, controlled air circulation inside the body, helping to lift the grass before cutting and effectively conveying the material into the collection system. This principle significantly improves the performance of the 65 L grass catcher , reducing the risk of blockages and allowing for longer work sessions without frequent stops for emptying.

4-in-1 multifunction system for maximum operational versatility

The lawnmower features an advanced 4-in-1 system that allows you to select the most suitable discharge mode: side discharge, rear discharge, collection in the bag, or mulching . This configuration makes the machine extremely adaptable to different lawn conditions and operational needs, improving overall efficiency and limiting the use of additional equipment.

Centralized cutting height adjustment

The centralized cutting height adjustment allows you to quickly set the desired cutting height within a range of 30 to 80 mm using a single control. This system ensures uniformity and precision across the entire working surface, making it easier to work on lawns with irregular growth without the need for repeated adjustments or complex manual interventions.

Integrated stone guard for increased operational safety

The integrated safety guard plays a key role in protecting the operator and the surrounding area by intercepting any debris during operation. Its robust structure helps maintain high safety standards even on gravel or small obstacles, without negatively impacting cutting performance, making the machine suitable for continuous professional use.

Collection bag with dust cover and full indicator

The canvas collection bag , equipped with a dust-proof top , is designed to effectively contain large volumes of cutting waste while limiting the dispersion of particles into the air. The integrated full bag indicator allows the operator to constantly monitor the fill level, optimizing work times and maintaining a constant and uniform cut quality.

Folding handle and large diameter wheels

The foldable handle makes transport and storage easier, reducing the machine's footprint when not in use. The large-diameter wheels improve smoothness and stability during movement, even on uneven surfaces, ensuring more precise control and smooth operation throughout the cutting process.

Characteristics

• 4-in-1 petrol lawnmower
• SP175 OHV 173 cc engine
• Power 3.5 kW - 4.5 HP
• Working width 52 cm
• Cutting capacity 50 cm
• Centralized working height from 30 to 80 mm
• Collection bag capacity 65 L
• Recommended areas 1600 m²
• Rear, side, bag or mulching discharge
• Made in Italy
