Lampacrescia MGM TRX 87 HYBRID
Robot Trinciatutto Basculante

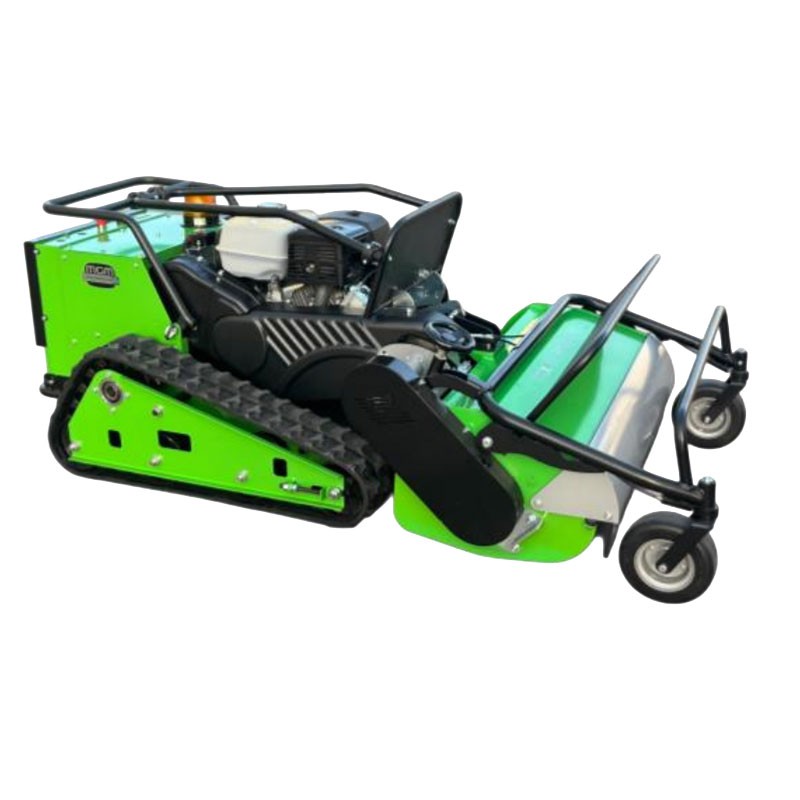

Lampacrescia MGM TRX 87 HYBRID - Radio-controlled tilting shredder

The Lampacrescia MGM TRX 87 HYBRID is equipped with a Honda GX390 11.7 HP (8.7 kW) petrol engine with electric start . The hybrid power system uses an integrated 2500 W generation system that powers the two independent 1000 W electric traction motors and the main on-board services. The machine is also equipped with two integrated batteries that ensure correct management of the electrical system and traction.

This tilting shredder offers a working width of 87 cm with millimetric height adjustment up to 80 mm . The electro-hydraulic lifting of the shredder and the electric engagement/disengagement of the blades are completely manageable via radio control . The safety system stops the rotor in just 5-7 seconds. The movement is provided by rubber tracks .

REMOTE CONTROL INCLUDED

Functional specifications

Hybrid system with dual electric traction

The MGM TRX 87 HYBRID Robot Flail Mower adopts an innovative hybrid power system in which the Honda GX390 engine drives an integrated 2500 W alternator , responsible for powering the two independent 1000 W electric traction motors and on-board services. This configuration ensures immediate torque delivery, efficient energy management and consistently smooth traction, improving machine control.

High productivity professional cutting group

The 87 cm tilting cutting unit follows the contours of the ground, improving shredding quality even on uneven surfaces. The cutting height can be adjusted with millimetre precision up to 80 mm , allowing the machine to be quickly adapted to different types of vegetation and operational needs.

Radio Control for Complete Control

The remote control allows you to manage all the main functions of the machine while keeping the operator at a distance from the work area. The remote control allows you to engage and disengage the blades electrically and control the electro-hydraulic lifting of the shredder unit, making it easier to overcome obstacles and adapt to different terrain conditions.

Professional tracks for difficult terrain

Movement is entrusted to 150 x 37 x 60 rubber tracks which ensure high stability, excellent weight distribution and effective traction even on uneven, grassy or sloping terrain.

TECHNICAL SPECIFICATIONS

The Lampacrescia MGM TRX 87 HYBRID has a Honda GX390 petrol engine with 11.7 HP (8.7 kW) and electric start . The hybrid power system uses an integrated 2500 W alternator that powers the two independent 1000 W electric traction motors and the main on-board services. The machine is also equipped with two integrated 24 V - 40 Ah batteries for the correct management of the electrical system and traction.

Working width 87 cm with millimetric height adjustment up to 80 mm . The electro-hydraulic lifting of the flail mower and the electric engagement/disengagement of the blades are completely manageable via radio control . The safety system stops the rotor in just 5-7 seconds.

Characteristics

• Tilting Cutting Group
• Cutting width 87 cm
• Millimetric cutting height adjustment up to 80 mm
• Electro-hydraulic shredder lifting
• Electric blade engagement and disengagement with remote control
• Generation system with integrated 2500 W alternator
• Safety system to stop the rotor in 5/7 seconds
• 2 traction motors of 1000 W each with separate gearbox
• Rubber tracks 150 x 37 x 60
• 2 integrated batteries 40 A - 24V
