Garland Crusher 503 NRQG-V22
69 cm Petrol Lawn Mower with 8.8 HP Engine

Garland Crusher 503 NRQG-V22 - 69 cm Petrol Lawn Mower with 8.8 HP Engine

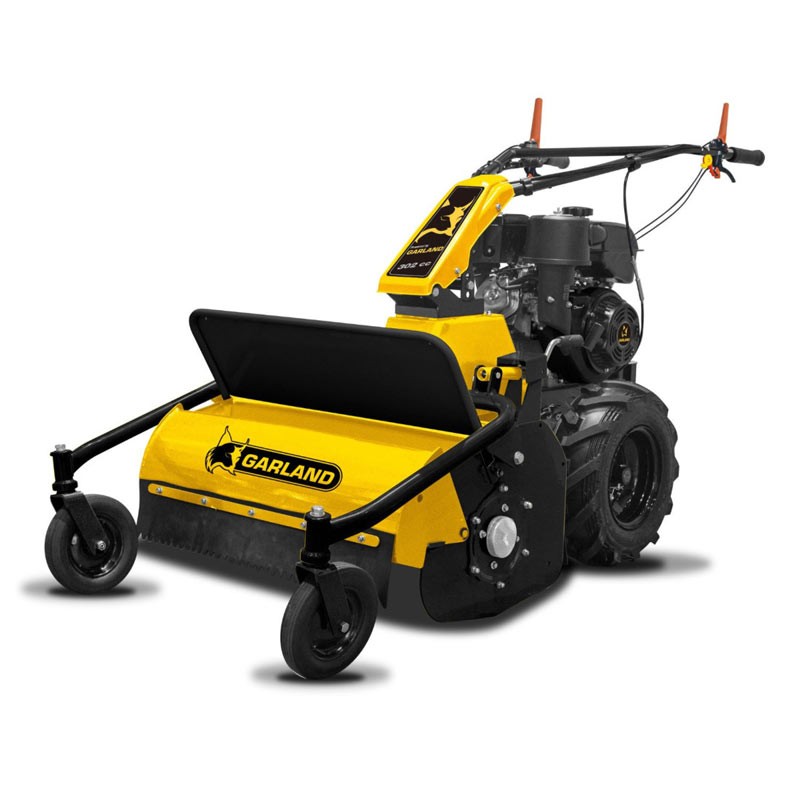

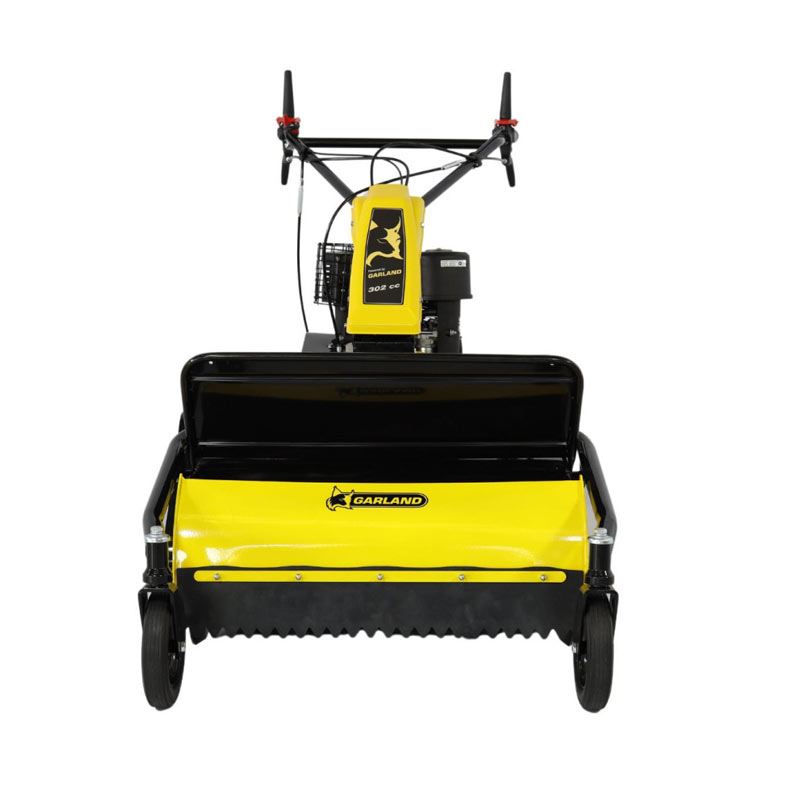

The Garland Crusher 503 NRQG-V22 flail mower is a professional machine designed to ensure maximum cutting efficiency in any position. Designed for intensive use in agriculture , forestry and for the maintenance of large green areas , this flail mower offers high-level performance thanks to its 302 cc Garland 4T engine and a power of 6.5 kW, capable of ensuring torque and continuity of work even in the most demanding conditions. Its 690 mm cutting width and height adjustment between 3 and 8 cm make it extremely versatile for tackling tall grass , brushwood and plant residues quickly and evenly.

Built to last, the Garland Crusher 503 NRQG-V22 stands out for its structural robustness, high mobility and operating comfort. Thanks to the 3-speed forward + 1-speed reverse gearbox, belt drive and 650x8 pneumatic rear wheels with wheel locks , it guarantees constant traction and easy maneuverability even on uneven terrain. The presence of a height-adjustable handlebar ensures ergonomic and safe use in any work situation.

Technical Specifications

The Garland Crusher 503 NRQG-V22 flail mower is equipped with a 302 cc 4-stroke engine that complies with the Euro V standard, synonymous with efficiency and low emissions. With a power output of 6.5 kW and a maximum torque of 18 Nm at 2800 rpm , the engine guarantees constant thrust even during prolonged use on dense vegetation. The 6.5 L fuel tank and 1.1 L engine oil capacity allow for extended working hours, minimizing downtime. The recommended oil is SAE 10W-40 , ideal for maintaining constant lubrication even under high stress conditions.

The Crusher 503 NRQG-V22 is driven by a belt with belt tensioner , with an oil capacity of 1.5 L , ensuring reliability and longevity over time. The gearbox features three forward speeds ( 0.98 – 1.58 – 2.56 km/h ) and one reverse speed ( 1.18 km/h ), offering precise speed control based on the needs of the terrain. With a dry weight of 180 kg , the machine maintains an optimal balance between stability and handling. The sound pressure level at the operator is 104.7 dB(A), with a guaranteed sound power level of ≥110 dB(A) , while vibrations on the handlebars remain limited (5.8 m/s² on the left and 6.4 m/s² on the right).

Functional Specifications

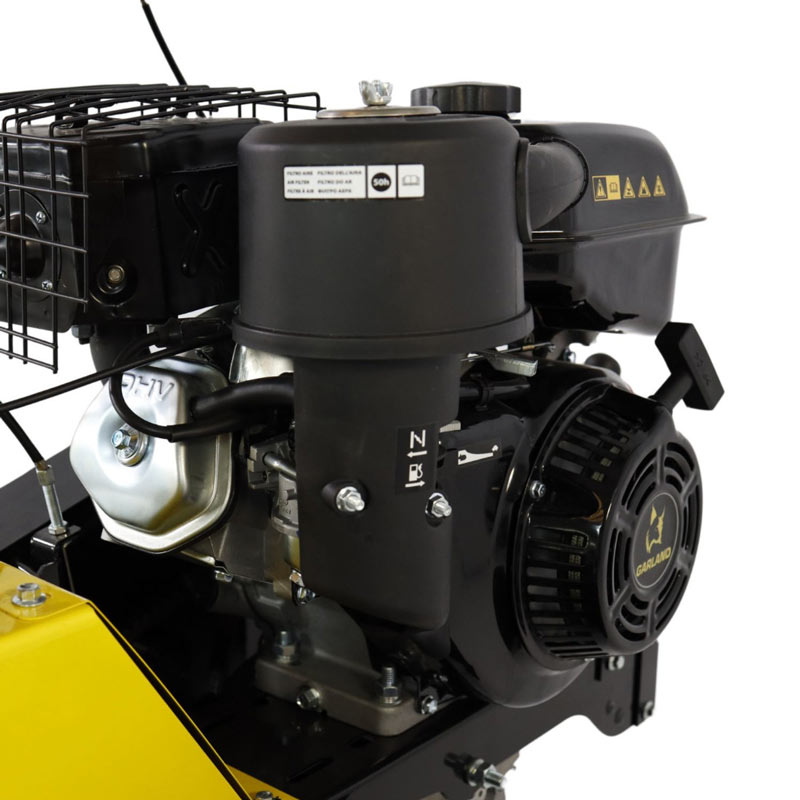

High-performance Garland 4T engine

The heart of the Garland Crusher 503 NRQG-V22 flail mower is the powerful 302 cc 4-stroke engine , designed to deliver maximum torque and operational reliability. This Euro V- compliant power unit ensures efficient combustion and low fuel consumption, guaranteeing consistent performance even during prolonged work sessions.

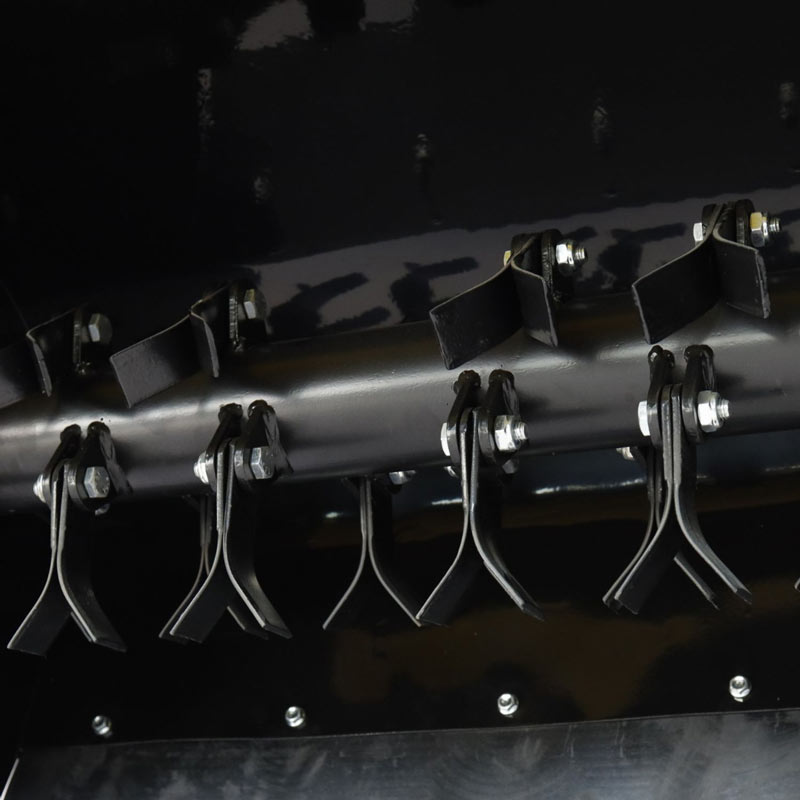

Hammer cutting system with 36 Y-blades

The hammer shredding system with 36 Y-shaped blades allows for the uniform shredding of grass , brushwood , and woody debris , ensuring a precise and even cut on any type of terrain. The 69 cm working width allows for rapid coverage of large areas, while the cutting height adjustment from 3 to 8 cm guarantees maximum versatility of use.

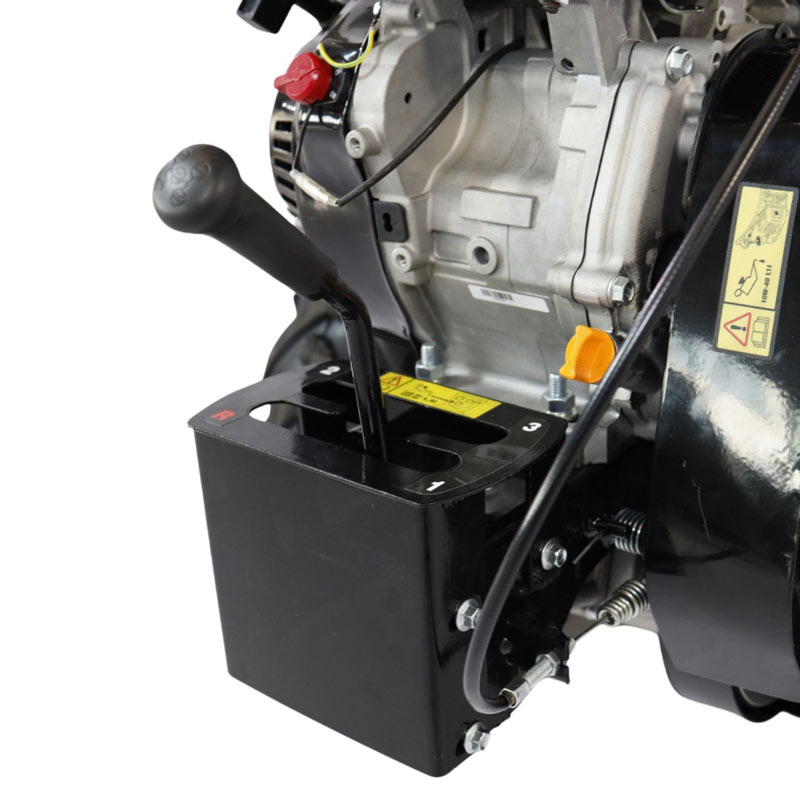

Belt drive and 3+1 speed gearbox

The belt drive with belt tensioner ensures smooth power transfer, reducing vibration and increasing system life. The mechanical gearbox with 3 forward gears and 1 reverse allows you to adapt the speed to the operating conditions, offering total control even on slopes or uneven terrain.

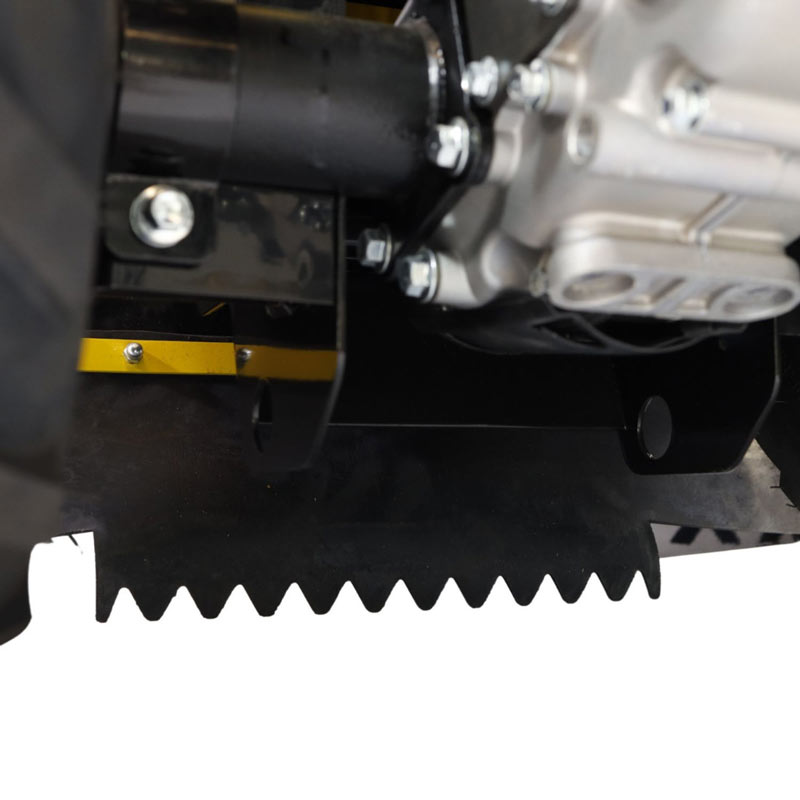

650x8 pneumatic wheels and switchable rear roller

The 650x8 pneumatic wheels ensure excellent grip and stability, while the rear roller , activated from the handlebars, improves working precision and soil finish. The wheel lock facilitates reversing maneuvers, increasing safety and speed of operations.

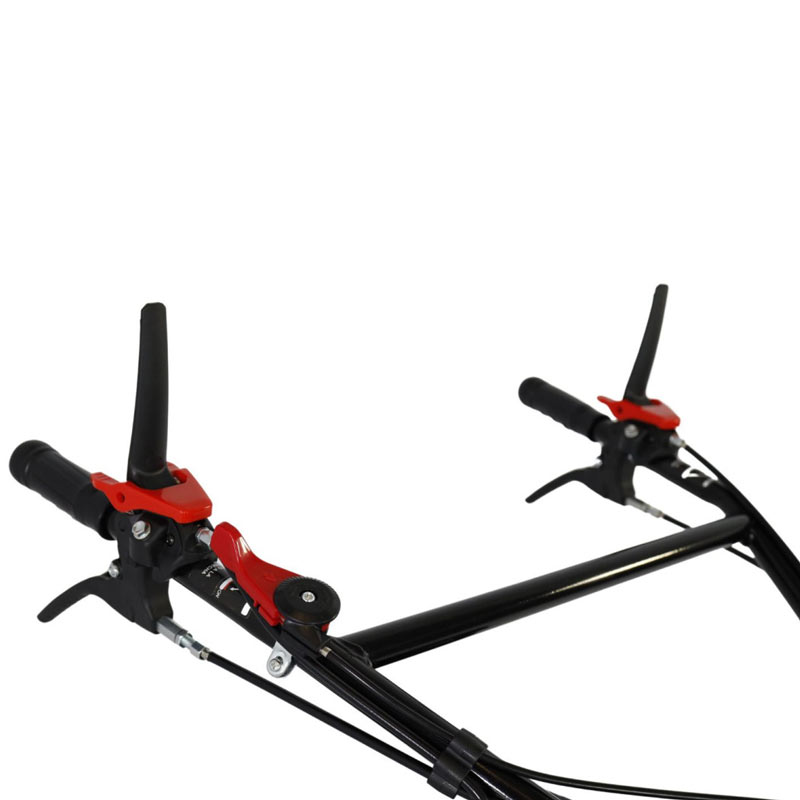

Ergonomic height-adjustable handlebar

To ensure comfort and total control, the height-adjustable handlebar allows the operator to work in a natural position, reducing fatigue during prolonged use. The intuitive layout of the controls facilitates practical and immediate use, even for professional operators who require precision and operational continuity.

Watch the videos

Characteristics

• Professional petrol lawnmower
• Garland 4T 302cc engine
• Power 6.5 kW - 8.8 HP
• Maximum torque 18 Nm at 2800 RPM
• Petrol power supply
• Manual recoil start
• 3 forward gears + 1 reverse
• Forward speed 0.98 - 1.58 - 2.56 km/h
• Reverse speed 1.18 km/h
• Fuel tank 6.5 L
• Cutting width 690 mm
• Adjustable cutting height from 30 to 80 mm
• Hammer cutting system with 36 Y-blades
• 650x8 pneumatic rear wheels
• Rear roller
• Height-adjustable handlebar
• Noise level 104.7 dB(A)
• Dry weight 180 kg

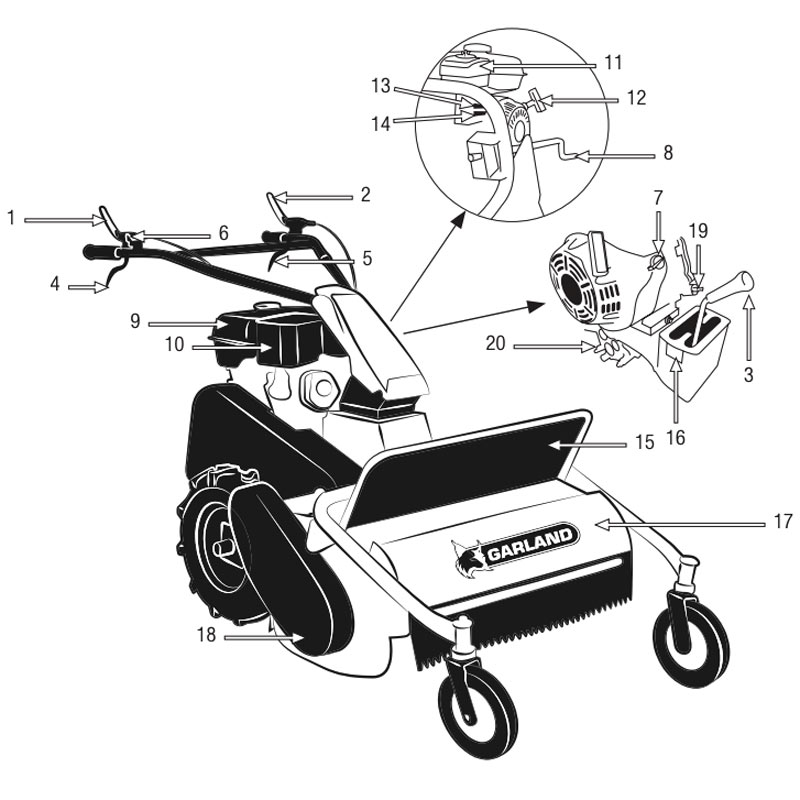

1. Blade operating lever
2. Wheel traction lever
3. Gear lever
4. Right steering lever
5. Left steering lever
6. Accelerator
7. ON/OFF switch
8. Height adjustment
9. Fuel tank
10. Muffler/silencer
11. Air filter
12. Recoil starter
13. Air lever
14. Fuel lever
15. Splash guard/protection
16. Gearbox filler caps
17. Blade protection
18. Belt cover
19. Engine oil cap
20. Gearbox oil drain plug
