Zanon MTZ 860C
86 cm Tracked Flail Mower
14 HP Loncin Engine

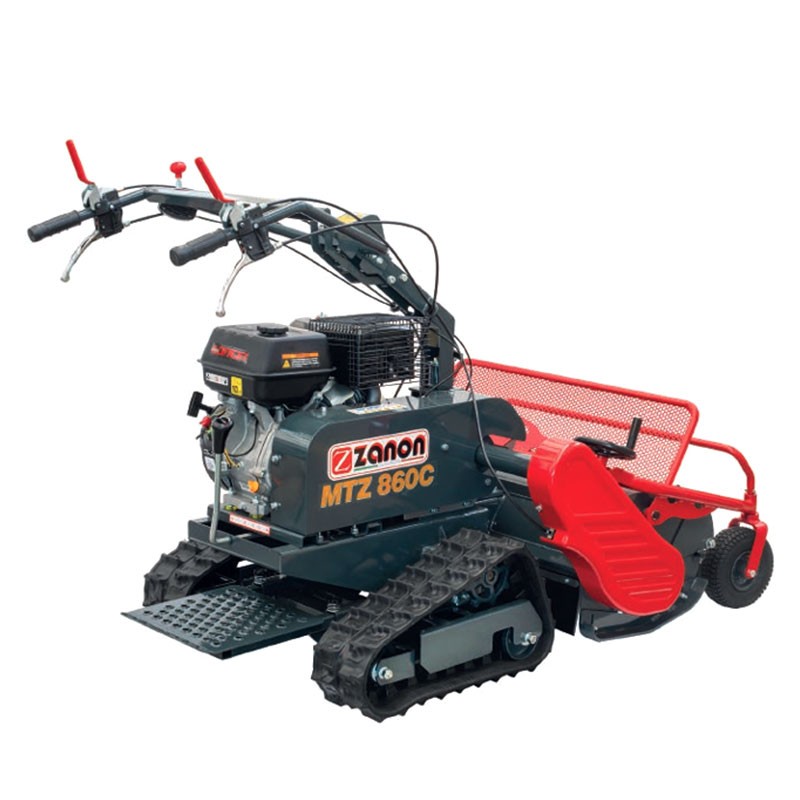

Zanon MTZ 860C - Professional Tracked Shredder 86 cm

The MTZ 860C tracked flail mower is designed to tackle demanding mowing tasks on agricultural fields with very tall, weedy and overgrown grass. Thanks to its sturdy tracks , it guarantees excellent traction even on steep or difficult terrain, making it ideal for professional users or intensive needs. The powerful 14 HP 420 cc Loncin engine drives a rotor with 48 knives that operate at 2600–2800 rpm , effectively shredding brambles, brushwood and shrubs up to 2.5 cm in diameter . Its cutting width is 86 cm , with adjustable height from 2 to 8 cm .

Ideal for the maintenance of olive groves, vineyards, orchards and the reclamation of abandoned land, it works safely up to slopes of 20° (35%) . The 3-speed forward + 1-speed reverse gearbox , the robust frame and the weight of 285 kg make it a professional, efficient and highly stable machine.

Loncin petrol engine, pull start

Functional specifications

Tracked flail mower with Loncin engine

The Zanon MTZ 860C is a professional tracked flail mower designed to tackle the most challenging situations. The 14 HP Loncin engine provides consistent and reliable power, ideal for mowing tall, overgrown, or weedy grass, even on neglected fields. The 48-blade rotor ensures effective shredding of brambles, shrubs, and brushwood up to 2.5 cm in diameter. Perfect for demanding farmers who require high performance and immediate results.

Thick tracked shredder for greater grip

The real strength of the Zanon MTZ 860C lies in its wide and resistant tracks (18x3 cm) , which ensure grip and stability even on slopes of 20° (35%) and on difficult terrain. This makes it usable on hills, muddy fields, rocky or uneven terrain . The mechanical transmission with 3 forward gears + 1 reverse allows for precise maneuverability in all working conditions, even in narrow spaces or areas with poor accessibility. This flail mower moves forward at a speed of 4.2 km/h and in reverse at 1.5 km/h .

Maintenance of Orchards, Vineyards and Olive Groves

The Zanon MTZ 860C is perfect for maintaining orchards, vineyards, and olive groves , especially those overgrown or poorly maintained. Its ability to work in harsh environments also makes it the ideal solution for reclaiming abandoned areas, ensuring effective and long-lasting cleaning.

Loncin 14 HP engine

The heart of the MTZ 860 is the 420 cc (14 HP) Loncin engine , designed to provide the necessary power even in the most demanding conditions. This engine allows the flail mower to cut not only grass, but also brambles and brushwood with a diameter of up to 2.5 cm , making it perfect for clearing abandoned land or land overgrown with resistant vegetation.

Safety and standard features

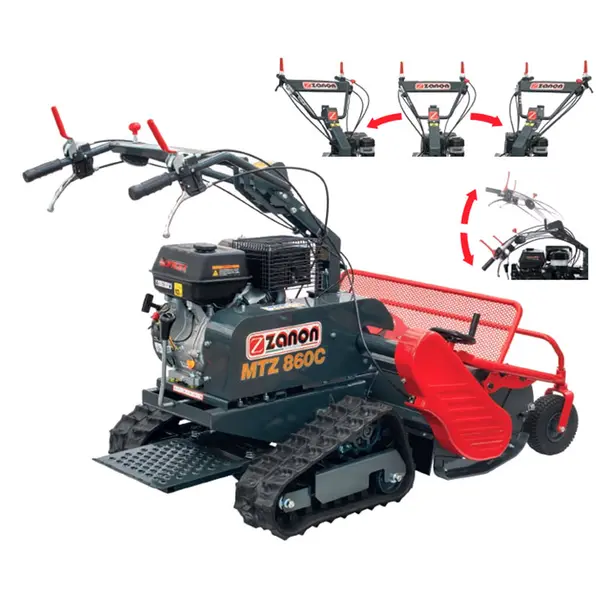

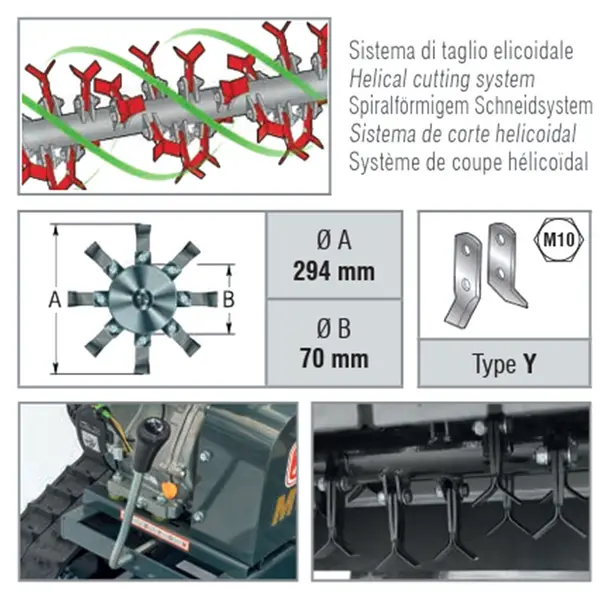

The Zanon MTZ 860C tracked flail mower is equipped with a rotor with a helical cutting system , with steel knives and belt transmission. The handlebar of this Zanon flail mower is adjustable in height, in the centre, to the right and to the left . It has a front rubber protection. Complies with CE regulations for safety protection and with the provisions of Directive 2000/14/EC for the limitation of environmental noise (103 dB) .

Advantages of tracked shredders

Compared to the more common wheeled flail mowers, tracked flail mowers such as the Zanon MTZ 860C are advantageous for:

• Greater traction and stability on difficult terrain : Tracked vehicles offer excellent traction and stability on muddy, slippery, or rocky surfaces. They don't slip and are less likely to sink into the ground than wheeled flail mowers.
• Work along impervious areas: these tracked flail mowers can operate on slopes, ditches, embankments and uncultivated land where wheeled machines would hardly advance in a stable and safe manner.
• Less physical effort in handling : being more stable, a tracked shredder does not require any particular holding effort from the operator.

Scope of use

Below are some examples of how to use the Zanon MTZ 860C:

• Orchards, vineyards and olive groves : ideal for shredding grass between rows
• Uncultivated Land : for the reclamation of abandoned areas or those invaded by brambles/undergrowth
• Hilly or sloping areas (up to 25%) : thanks to the ability of Zanon MTZ 860 to overcome slopes with ease
• Cleaning roadsides, ditches, and embankments: ideal for localized and precise events.
• Maintenance of green areas: especially parks, agricultural land, and rustic gardens.

Zanon: Professional Agricultural Machinery

ZANON products cover numerous application areas, from purely agricultural to more specialized applications. An Italian brand with dedicated support, it has always been synonymous with quality and reliability.

Characteristics

• Professional tracked lawn mower
• Thick tracks for greater grip
• Hammer cutting system - 48 knives
• 14 HP Loncin engine
• Diameter Ø 2.5 cm
• Cutting Width 86 cm
• Adjustable height from 20 to 80 cm
• Forward speed 4.2 km/h and reverse speed
• Overcoming slopes up to 35%
• High Technical Quality
