Laser LC-P-1000L
Professional Laser Cleaner
1000 W Pulsed Fiber
MPN: LC-P-1000
400V - 3,5 kW
1000 W - 1064 nm
8 pattern - Laser JPT
Warranty 3
years
Shipped on Pallet

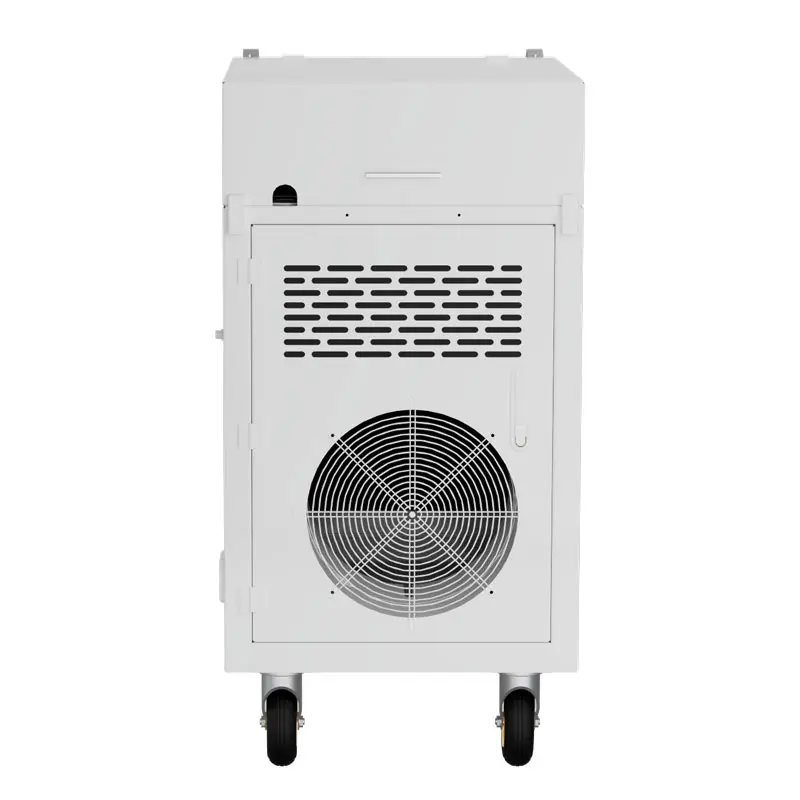

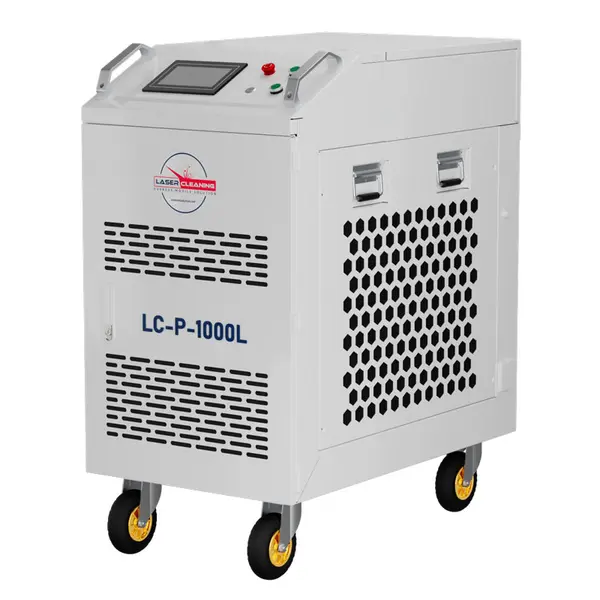

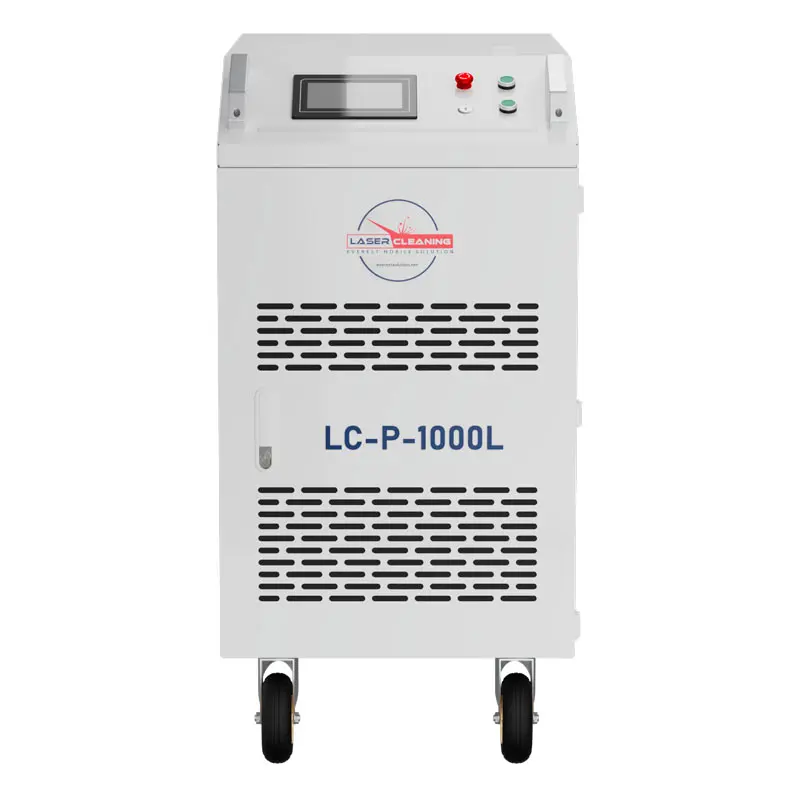

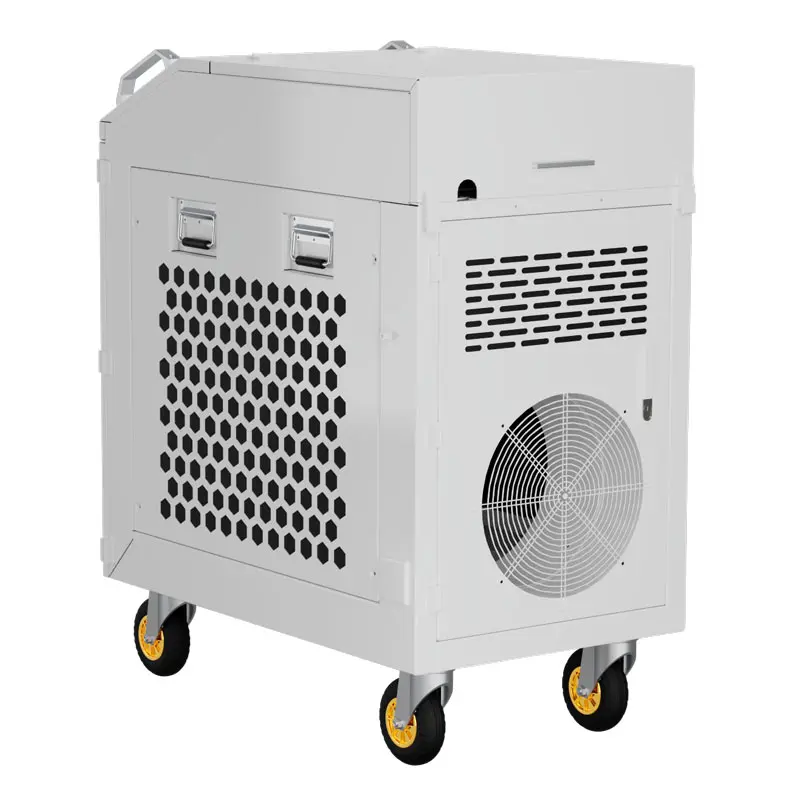

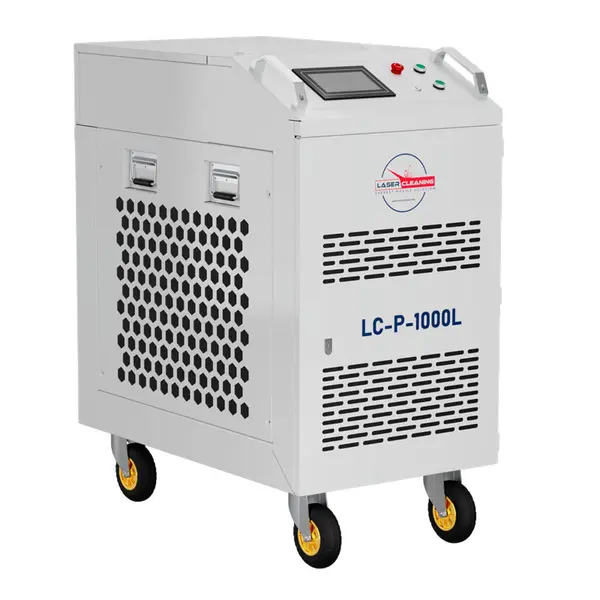

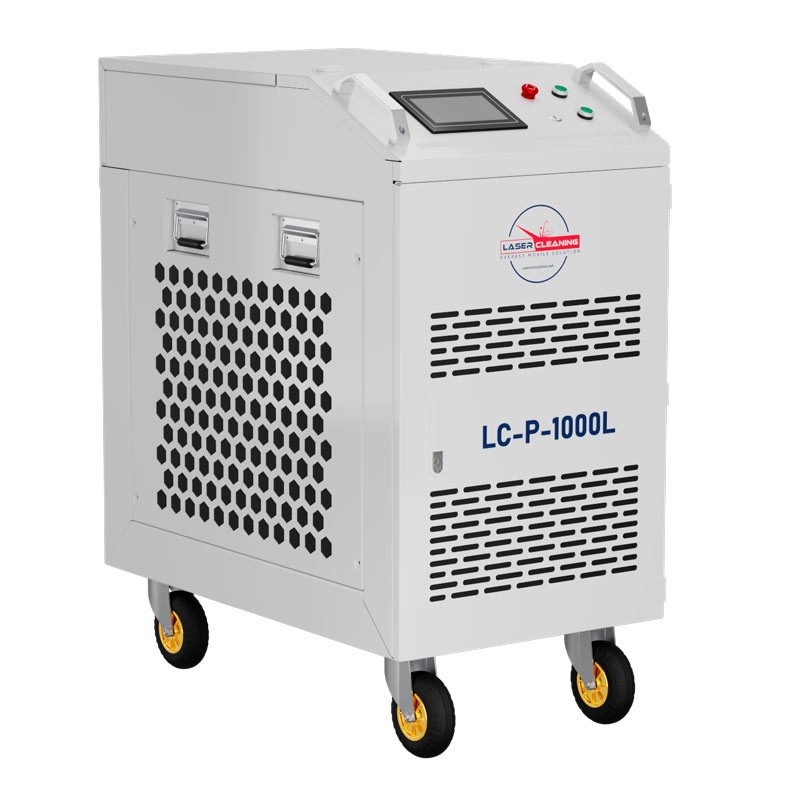

Laser LC-P-1000L - Professional 1000W Water-Cooled Laser Cleaner
LC-P-1000L is a 1000W industrial pulsed fiber laser cleaner for laser pickling , oxide, paint and contaminant removal applications.
1000W pulsed fiber JPT laser source , 15-50 mJ pulse energy, 8 scanning patterns , water cooling and integration into industrial processes .
Functional Specifications
JPT 1000W laser source
The 1000W JPT laser source ensures beam stability and operational continuity in industrial laser cleaning processes.
1064 nm pulsed fiber laser
The system operates at 1064 nm with pulsed technology ( 15–50 mJ ), optimizing the selective removal of coatings without damaging the substrate.
Dual-axis scanner head
The dual-axis head ensures scanning uniformity and high precision in surface treatments.
Multiple processing patterns
The 8 cleaning patterns allow for flexible operating configurations based on material type and contamination.
Automation provision
Dedicated interfaces allow integration into automated lines and industrial systems.
Integrated security
System with interlock , key/password lock and temperature alarm for advanced operational control.
- Laser beam
- Material substrate
- Original surface
- Oxidized layer
- Corrosion layer
What is Laser Cleaning?
Laser Cleaning (or laser cleaning ) is an innovative and ecological technology designed to degrease, strip paint and deoxidise surfaces quickly, effectively and completely dry.
How it works:
- Targeted and selective action : The machine projects a concentrated laser beam onto the surface. The light energy is absorbed only by the layer of dirt (such as rust, paint, scale, or soot), causing it to evaporate immediately.
- No damage to the base material : The underlying material (metal, stone, wood, or composites) reflects light or remains below the damaging heat threshold. The original surface is thus perfectly cleaned, without scratches, wear, or geometric alterations.
- Contactless technology : As there is no mechanical friction or the use of abrasive particles (as in sandblasting), the process is completely non-invasive.
- 100% Eco-Friendly : The system operates without the use of water, acids, or chemical solvents. This eliminates the production of sludge or toxic residues, drastically reducing operating and disposal costs.

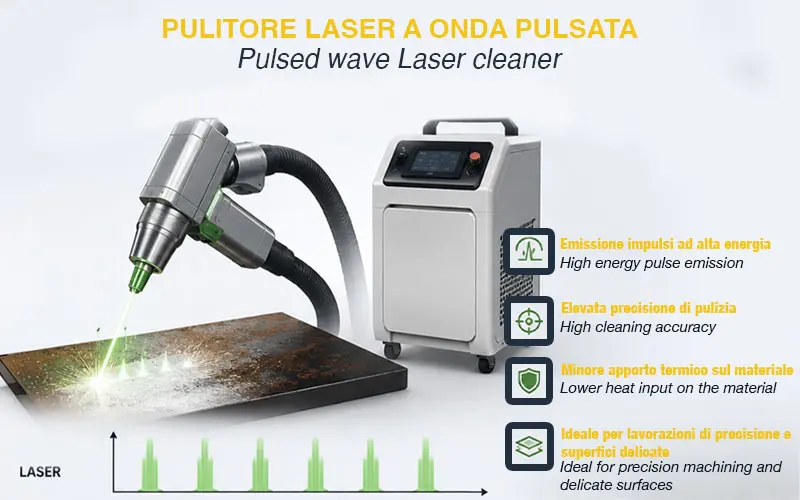

Pulsed Light Technology (MOPA)
- High Intensity Pulses : Releases energy in the form of trains of very short pulses (in the order of nanoseconds) with extremely high instantaneous power peaks.
- Photomechanical Interaction : Pulverizes the contaminant using the shock wave of light; the speed of the pulse prevents heat transfer to the substrate.
- Application : Specifically designed for high-precision machining and the treatment of delicate or thermally sensitive surfaces. Ideal for the conservative restoration of cultural heritage, precision industrial molds, thin car bodies, wood, and composite materials.
How to choose the energy level based on mJ
The laser energy determines the spatial distribution profile: low energies produce concentrated Gaussian distributions with high peak intensity, while high energies generate TopHat profiles with reduced intensity and enlarged footprint.
- 2-5 mJ : maximum aggressiveness on refractory contaminants, high risk of damage to the substrate
- 15 mJ : hybrid profile, good compromise between effectiveness and control
- 50-100 mJ : uniform distribution, minimizes interaction with substrate, reduced aggressiveness
Materials Treatable with Laser Cleaning
- Aluminum and composite alloys
- Plaster and natural stone
- Wood
- Brass and gold
- Polymers and rubber
- Copper and iron
- Travertine and granite
- Ceramics and glass
- Composites and fiberglass
- Terracotta and marble
Fields of application
- Automotive and aeronautical
- Conservative restoration and cultural heritage
- Industrial maintenance and molds
- Naval and maritime
- Building and construction
- Welding and heat treatments
- Tire cleaning and restoration
- Energy and oil gas
- Electronics and microelectronics
- Wood and furniture processing
CHARACTERISTICS
- 1000W Industrial Laser Cleaner
- 1064 nm pulsed fiber technology
- JPT laser source
- High-precision laser pickling
- 8 working patterns
- Dual-axis scanner head
- 400 V three-phase power supply
- Power consumption 3.5 kW
- Pulse energy 15–50 mJ
- Industrial automation integration
- Safety interlock system
- Lock with key and password
- Air cooling
- Optics F=160 / 254 / 300 mm
Standard Equipment
- Goggles
- Toolkit
- Protective lenses
Optional Equipment
- Optional lenses
- Protective mask
Technical Data
| Power Supply | 400V |
| Absorption | 3.5 kW |
| Laser Source | JPT |
| Power | 1000 W - Pulsed fiber |
| Wave Length | 1064 nm |
| Energy | 15 mJ / 50 mJ |
| Focal Lens | F=160 mm / F=254 mm / F=300 mm |
| Cooling System | Waterfall |
| Cleaning Models | 8 patterns |
| Working Temperature | 0÷45 °C |
| Humidity Operation | 10÷80% |
| Cable | Fiber - 10 m |

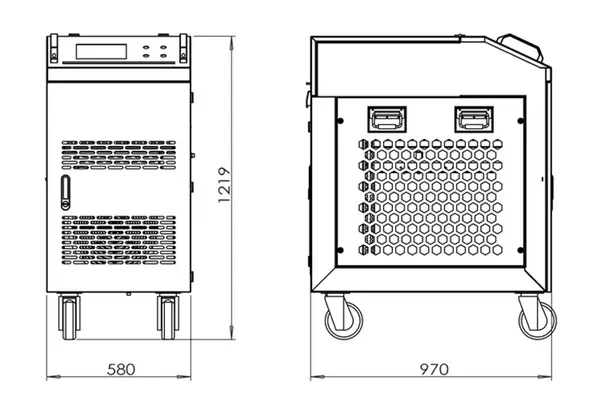

| Dimensions | 97 x 58 x 121.9 cm |
| Weight | 260 kg |
