Laser LC-P-500L
500W Laser Cleaner
Water Cooling
MPN: LC-P-500L
230V - 4 kW
500 W - 1064 nm
8 pattern - Laser JPT
Warranty 3
years
Shipped on Pallet

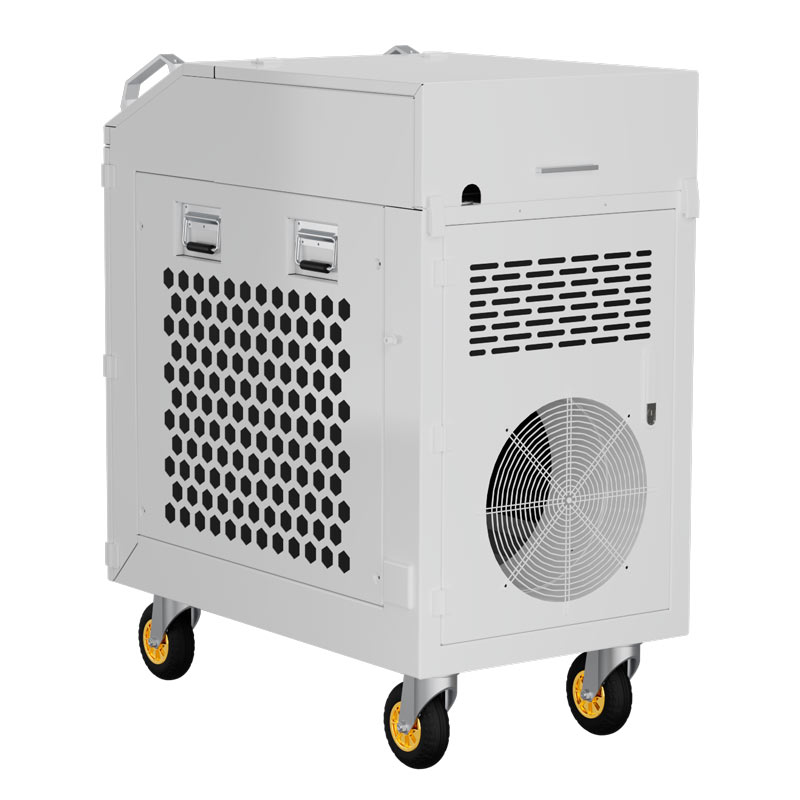

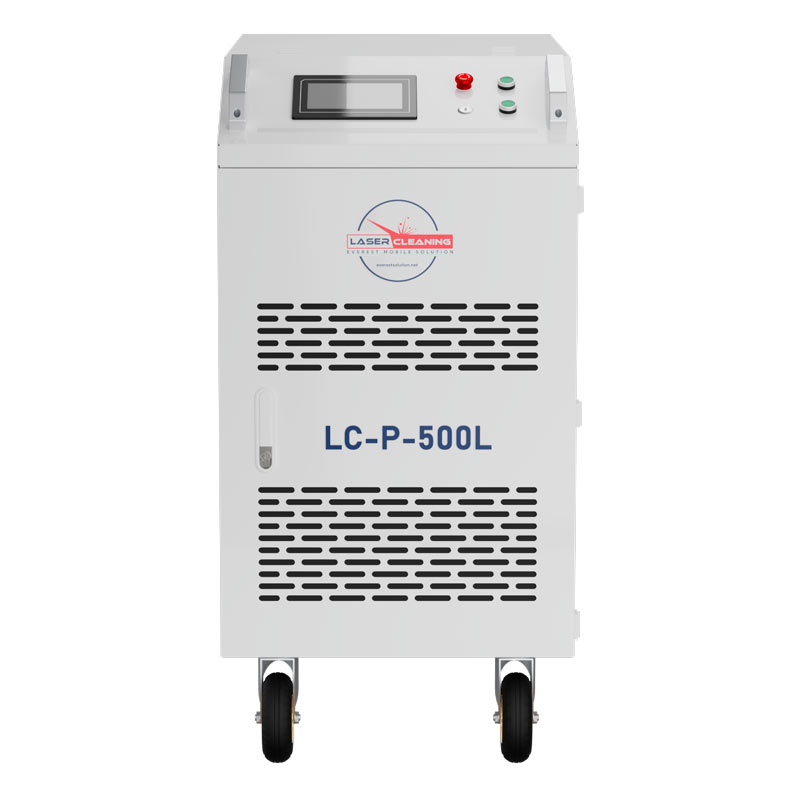

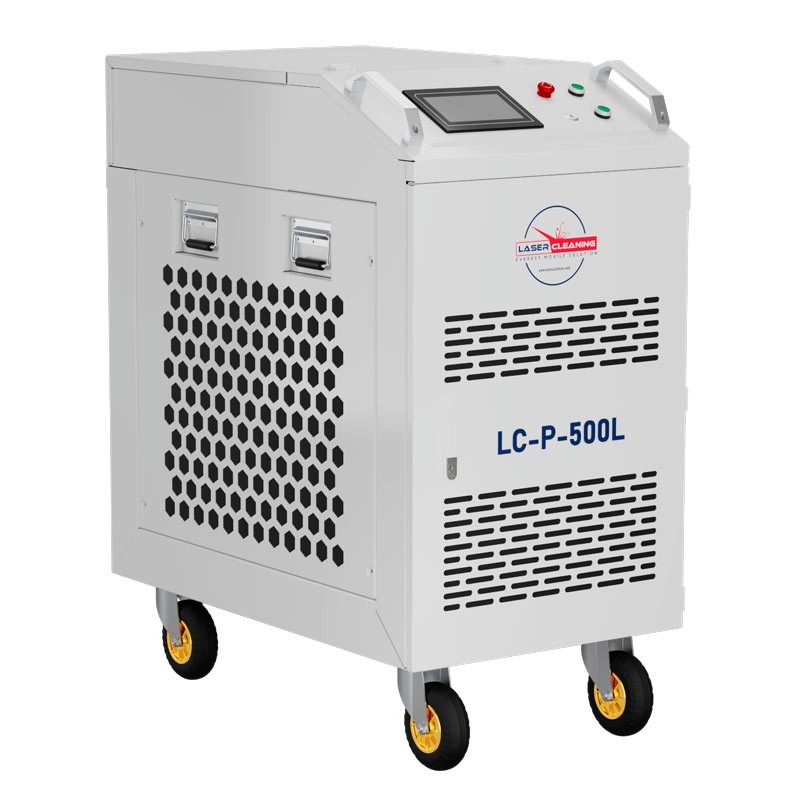

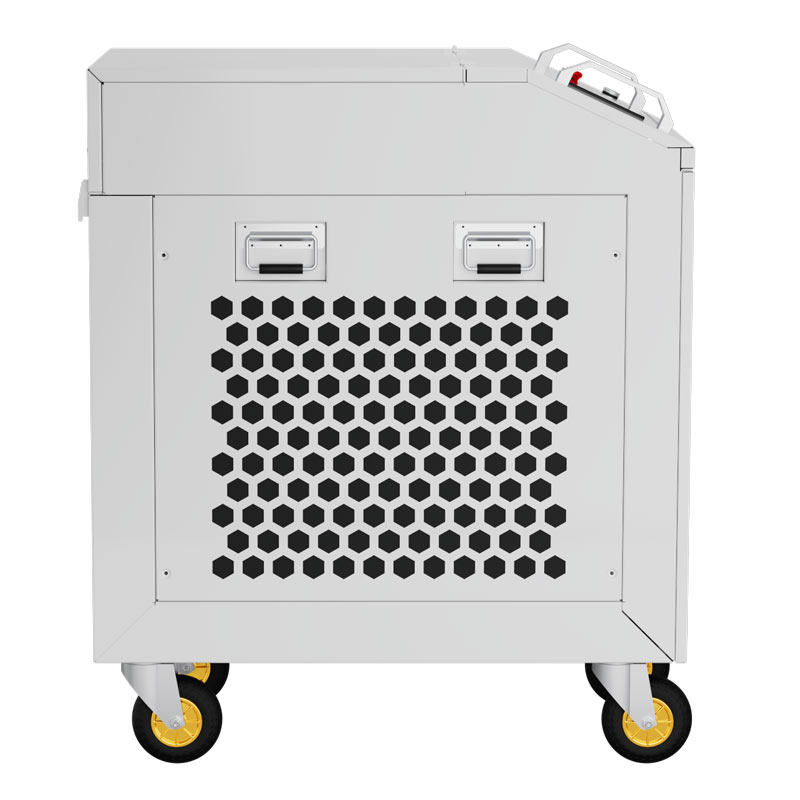

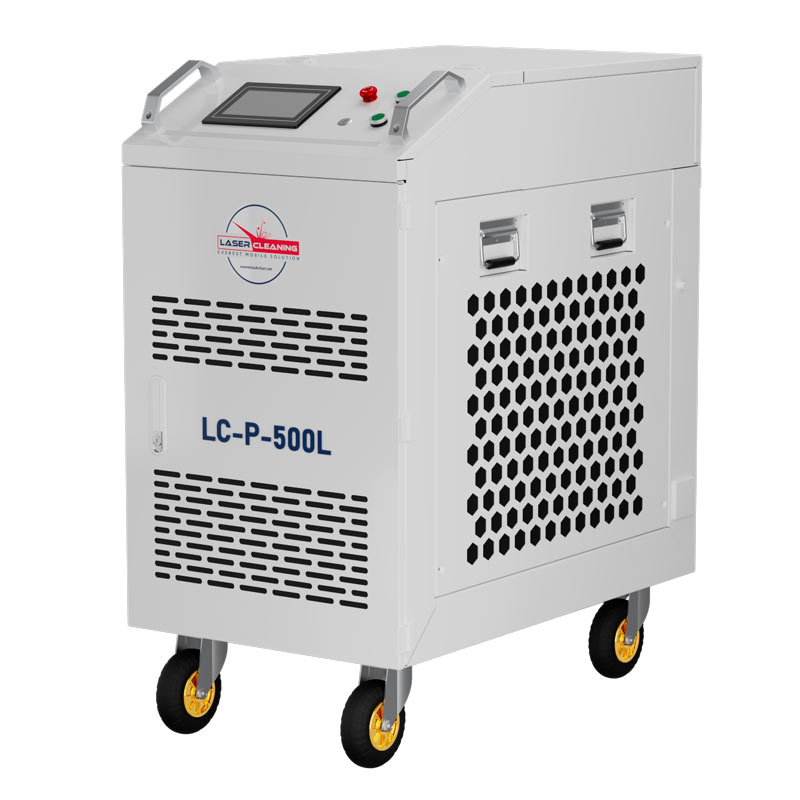

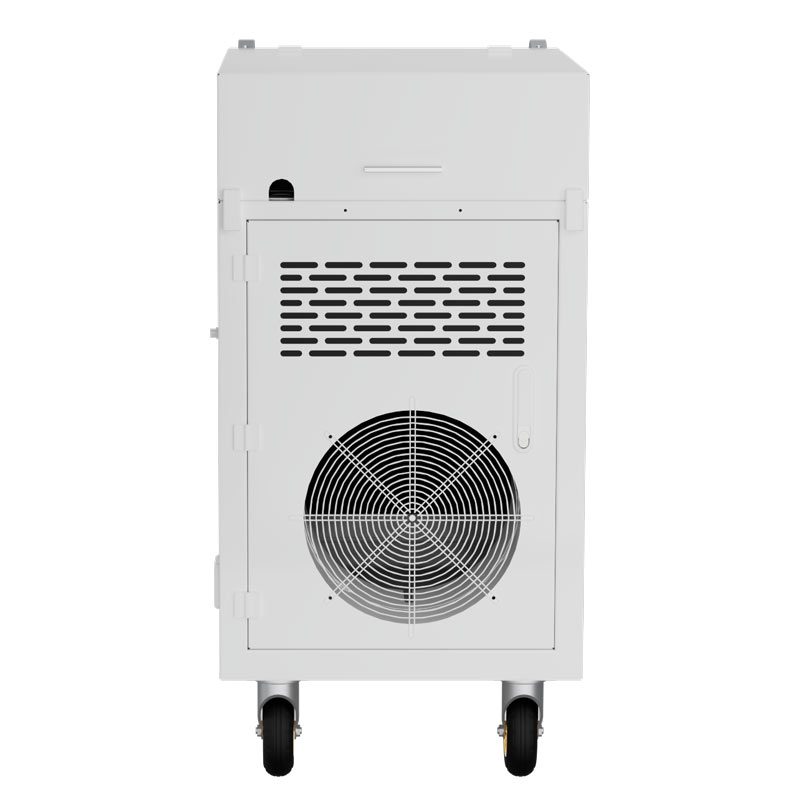

Laser LC-P-500L - Professional 500W Water-Cooled Laser Cleaner
LC-P-500L is a professional laser cleaner for laser pickling operations, removal of oxides, paints and surface contaminants.
500W pulsed fiber JPT laser source , 15-50 mJ pulse energy , 8 scanning patterns , water cooling and integration into industrial processes .
Functional Specifications
JPT laser source
The 500W JPT laser source ensures high performance and beam stability in laser cleaning applications.
Adjustable pulse energy
Two energy levels ( 15 mJ and 50 mJ ) to adapt the treatment to different processes.
Dual-axis laser head
The dual-axis laser head ensures uniform and precise scanning, improving the quality of processing.
Cleaning configuration
The 8 scanning patterns and interchangeable focal lenses allow the treatment to be adapted to different applications.
Integrated security
Safety interlock , machine lock with key and password and temperature alarm ensure use compliant with industrial standards.
- Laser beam
- Material substrate
- Original surface
- Oxidized layer
- Corrosion layer
What is Laser Cleaning?
Laser Cleaning (or laser cleaning ) is an innovative and ecological technology designed to degrease, strip paint and deoxidise surfaces quickly, effectively and completely dry.
How it works:
- Targeted and selective action : The machine projects a concentrated laser beam onto the surface. The light energy is absorbed only by the layer of dirt (such as rust, paint, scale, or soot), causing it to evaporate immediately.
- No damage to the base material : The underlying material (metal, stone, wood, or composites) reflects light or remains below the damaging heat threshold. The original surface is thus perfectly cleaned, without scratches, wear, or geometric alterations.
- Contactless technology : As there is no mechanical friction or the use of abrasive particles (as in sandblasting), the process is completely non-invasive.
- 100% Eco-Friendly : The system operates without the use of water, acids, or chemical solvents. This eliminates the production of sludge or toxic residues, drastically reducing operating and disposal costs.
Pulsed Light Technology (MOPA)
- High Intensity Pulses : Releases energy in the form of trains of very short pulses (in the order of nanoseconds) with extremely high instantaneous power peaks.
- Photomechanical Interaction : Pulverizes the contaminant using the shock wave of light; the speed of the pulse prevents heat transfer to the substrate.
- Application : Specifically designed for high-precision machining and the treatment of delicate or thermally sensitive surfaces. Ideal for the conservative restoration of cultural heritage, precision industrial molds, thin car bodies, wood, and composite materials.
How to choose the energy level based on mJ
The laser energy determines the spatial distribution profile: low energies produce concentrated Gaussian distributions with high peak intensity, while high energies generate TopHat profiles with reduced intensity and enlarged footprint.
- 2-5 mJ : maximum aggressiveness on refractory contaminants, high risk of damage to the substrate
- 15 mJ : hybrid profile, good compromise between effectiveness and control
- 50-100 mJ : uniform distribution, minimizes interaction with substrate, reduced aggressiveness
Materials Treatable with Laser Cleaning
- Aluminum and composite alloys
- Plaster and natural stone
- Wood
- Brass and gold
- Polymers and rubber
- Copper and iron
- Travertine and granite
- Ceramics and glass
- Composites and fiberglass
- Terracotta and marble
Fields of application
- Automotive and aeronautical
- Conservative restoration and cultural heritage
- Industrial maintenance and molds
- Naval and maritime
- Building and construction
- Welding and heat treatments
- Tire cleaning and restoration
- Energy and oil gas
- Electronics and microelectronics
- Wood and furniture processing
CHARACTERISTICS
- Professional laser cleaner
- Industrial laser pickling
- JPT laser source
- Power 500 W
- Pulsed fiber laser
- Pulse energy 15-50 mJ
- Wavelength 1064 nm
- Power supply 230 V single phase
- Power consumption 4 kW
- Dual-axis laser head
- 8 cleaning patterns
- Focal lenses F=160 / F=254 / F=300 mm
- Air cooling
- 10m fiber optic cable
- Connections for automation
- Safety interlock
- Lock with key and password
- Temperature alarm
- Working temperature 0-45 °C
Standard Equipment
- Goggles
- Toolkit
- Protective lenses
Optional Equipment
- Optional lenses
- Protective mask
Technical Data
| Power Supply | 230V |
| Absorption | 4 kW |
| Laser Source | JPT |
| Power | 500 W - Pulsed fiber |
| Wave Length | 1064 nm |
| Energy | 15 mJ / 50 mJ |
| Focal Lens | F=160 mm / F=254 mm / F=300 mm |
| Cooling System | Waterfall |
| Cleaning Models | 8 patterns |
| Working Temperature | 0÷45 °C |
| Humidity Operation | 10÷80% |
| Cable | Fiber - 10 m |

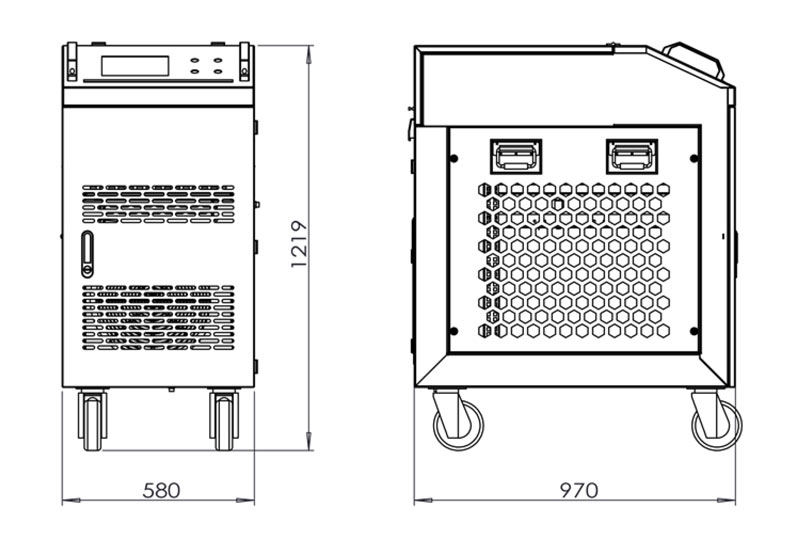

| Dimensions | 97 x 58 x 121.9 cm |
| Weight | 230 kg |
