Laser LC-P-500A
500W Laser Cleaner
Air Cooling
MPN: LC-P-500A
230V - 3 kW
500 W - 1064 nm
10 pattern - Laser JPT
Warranty 3
years
Shipped on Pallet

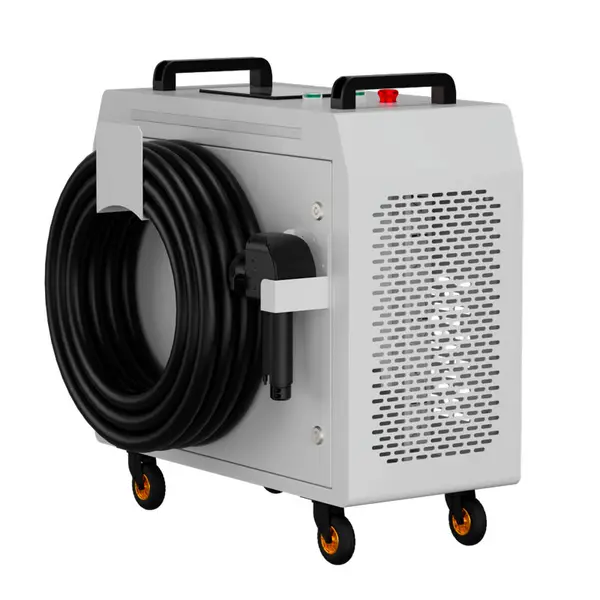

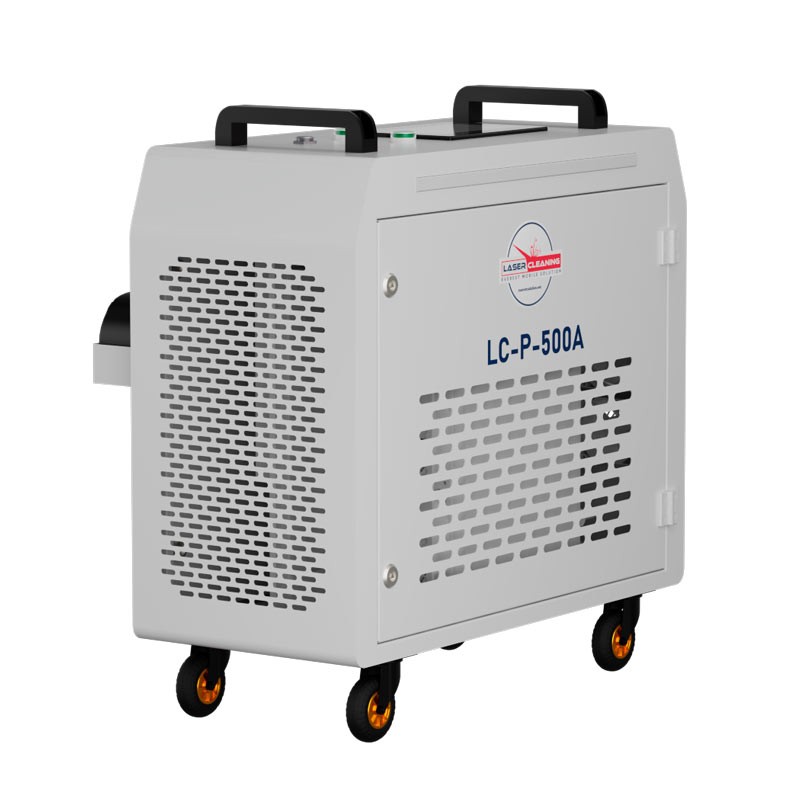

Laser LC-P-500A - Professional 500W Air-Cooled Laser Cleaner
LC-P-500A is a professional laser cleaner for laser pickling and industrial cleaning operations.
JPT 500W pulsed fiber laser source , pulse configurations up to 50 mJ and ready for integration into automated systems .
Functional Specifications
JPT laser source
500W pulsed fiber laser with 1064 nm wavelength, designed for industrial cleaning and pickling applications.
Adjustable pulse energy
Three energy levels ( 1.5 mJ, 15 mJ and 50 mJ ) to adapt the treatment to different processes.
Professional laser head
Dual-axis head with 10 cleaning patterns and the ability to use F=160, F=254 and F=300 mm focal lenses.
Security and automation
Safety interlock , key and password lock , temperature alarm and connections dedicated to industrial automation .
- Laser beam
- Material substrate
- Original surface
- Oxidized layer
- Corrosion layer
What is Laser Cleaning?
Laser Cleaning (or laser cleaning ) is an innovative and ecological technology designed to degrease, strip paint and deoxidise surfaces quickly, effectively and completely dry.
How it works:
- Targeted and selective action : The machine projects a concentrated laser beam onto the surface. The light energy is absorbed only by the layer of dirt (such as rust, paint, scale, or soot), causing it to evaporate immediately.
- No damage to the base material : The underlying material (metal, stone, wood, or composites) reflects light or remains below the damaging heat threshold. The original surface is thus perfectly cleaned, without scratches, wear, or geometric alterations.
- Contactless technology : As there is no mechanical friction or the use of abrasive particles (as in sandblasting), the process is completely non-invasive.
- 100% Eco-Friendly : The system operates without the use of water, acids, or chemical solvents. This eliminates the production of sludge or toxic residues, drastically reducing operating and disposal costs.

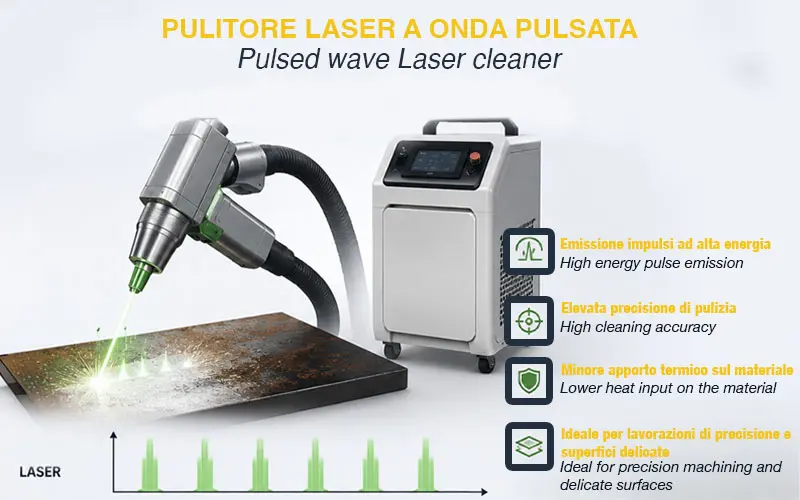

Pulsed Light Technology (MOPA)
- High Intensity Pulses : Releases energy in the form of trains of very short pulses (in the order of nanoseconds) with extremely high instantaneous power peaks.
- Photomechanical Interaction : Pulverizes the contaminant using the shock wave of light; the speed of the pulse prevents heat transfer to the substrate.
- Application : Specifically designed for high-precision machining and the treatment of delicate or thermally sensitive surfaces. Ideal for the conservative restoration of cultural heritage, precision industrial molds, thin car bodies, wood, and composite materials.
How to choose the energy level based on mJ
The laser energy determines the spatial distribution profile: low energies produce concentrated Gaussian distributions with high peak intensity, while high energies generate TopHat profiles with reduced intensity and enlarged footprint.
- 2-5 mJ : maximum aggressiveness on refractory contaminants, high risk of damage to the substrate
- 15 mJ : hybrid profile, good compromise between effectiveness and control
- 50-100 mJ : uniform distribution, minimizes interaction with substrate, reduced aggressiveness
Materials Treatable with Laser Cleaning
- Aluminum and composite alloys
- Plaster and natural stone
- Wood
- Brass and gold
- Polymers and rubber
- Copper and iron
- Travertine and granite
- Ceramics and glass
- Composites and fiberglass
- Terracotta and marble
Fields of application
- Automotive and aeronautical
- Conservative restoration and cultural heritage
- Industrial maintenance and molds
- Naval and maritime
- Building and construction
- Welding and heat treatments
- Tire cleaning and restoration
- Energy and oil gas
- Electronics and microelectronics
- Wood and furniture processing
CHARACTERISTICS
- Professional laser cleaner
- Industrial laser pickling
- JPT laser source
- Pulsed fiber laser
- Power 500 W
- Pulse energy 1.5 / 15 / 50 mJ
- Wavelength 1064 nm
- 230 V single-phase power supply
- Power consumption 3 kW
- Air cooling system
- Dual-axis laser head
- 10 cleaning patterns
- Connections for automation
- 10m fiber optic cable
- 10 protective lenses
- 2 OD7+ glasses
- Protective frame
Standard Equipment
- Goggles
- Toolkit
- Protective lenses
Optional Equipment
- Optional lenses
- Protective mask
Technical Data
| Power Supply | 230V |
| Absorption | 3 kW |
| Laser Source | JPT |
| Power | 500 W - Pulsed fiber |
| Wave Length | 1064 nm |
| Energy | 1.5 mJ / 15 mJ / 50 mJ |
| Focal Lens | F=160 mm / F=254 mm / F=300 mm |
| Cooling System | Air |
| Cleaning Models | 10 patterns |
| Working Temperature | 0÷45 °C |
| Humidity Operation | 10÷80% |
| Cable | Fiber - 10 m |

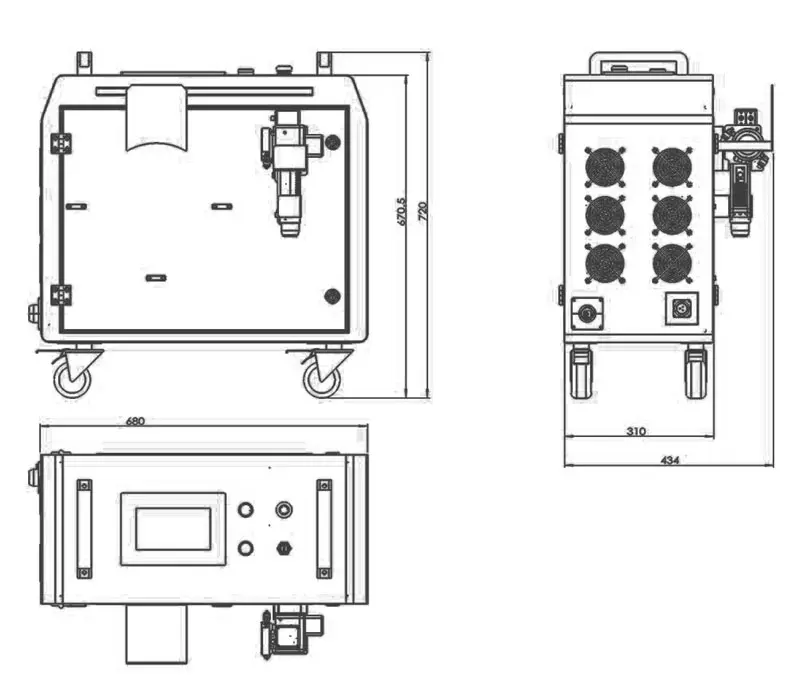

| Dimensions | 68 x 43.4 x 67 cm |
| Weight | 70 kg |
