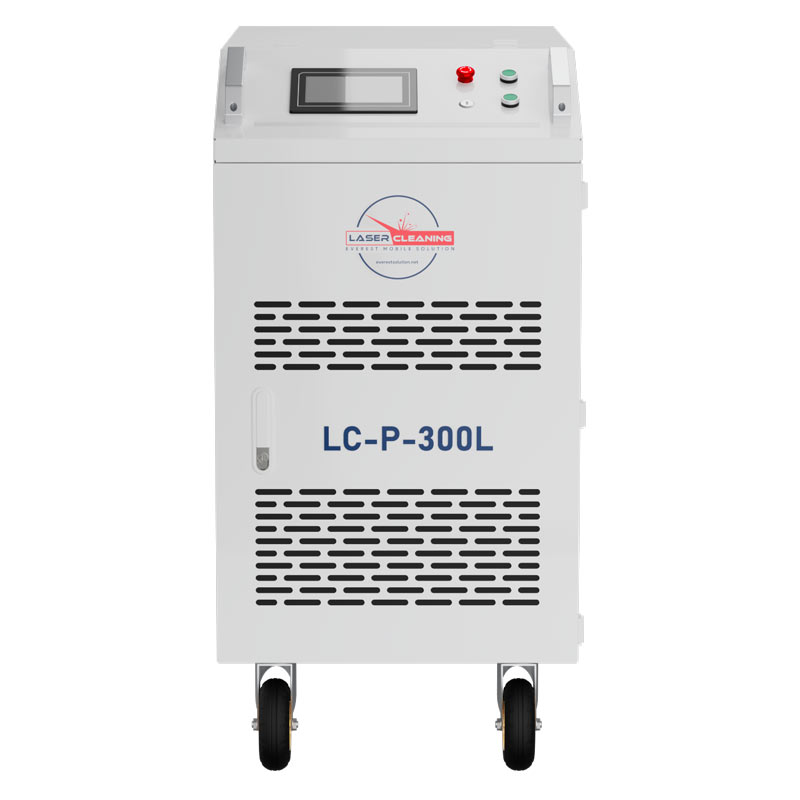

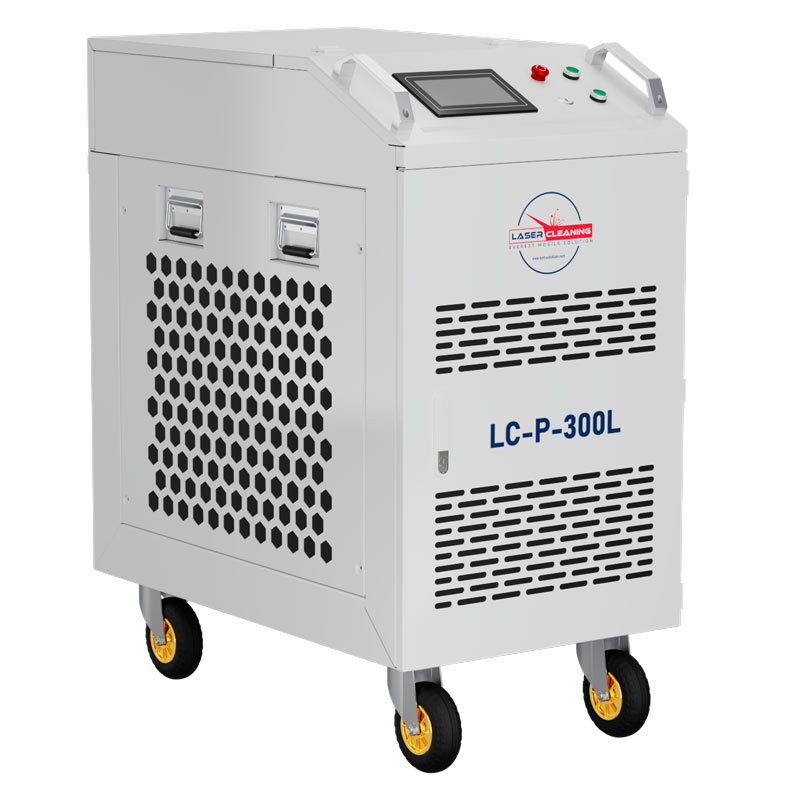

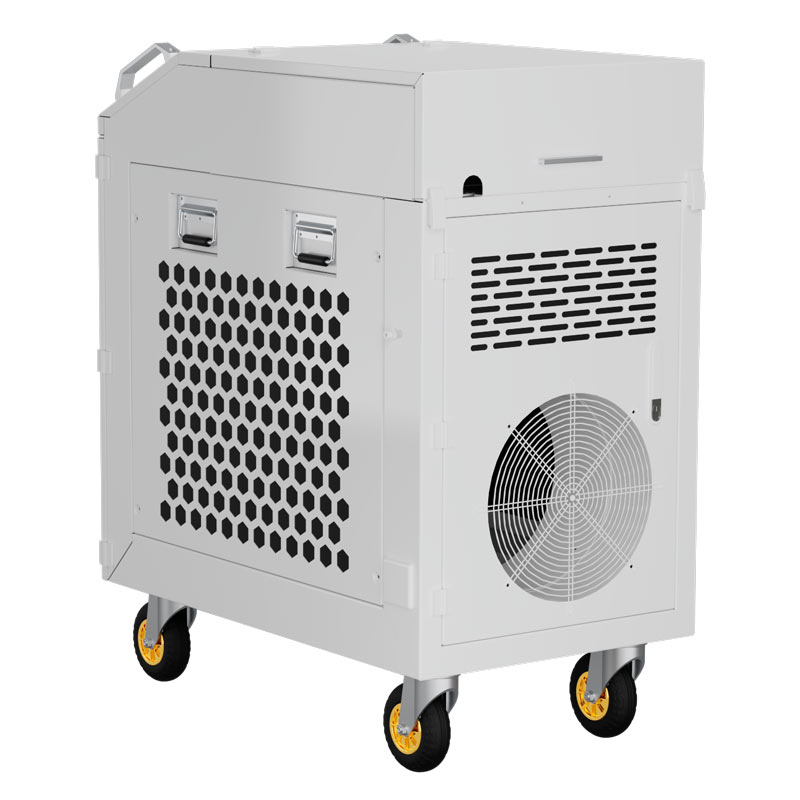

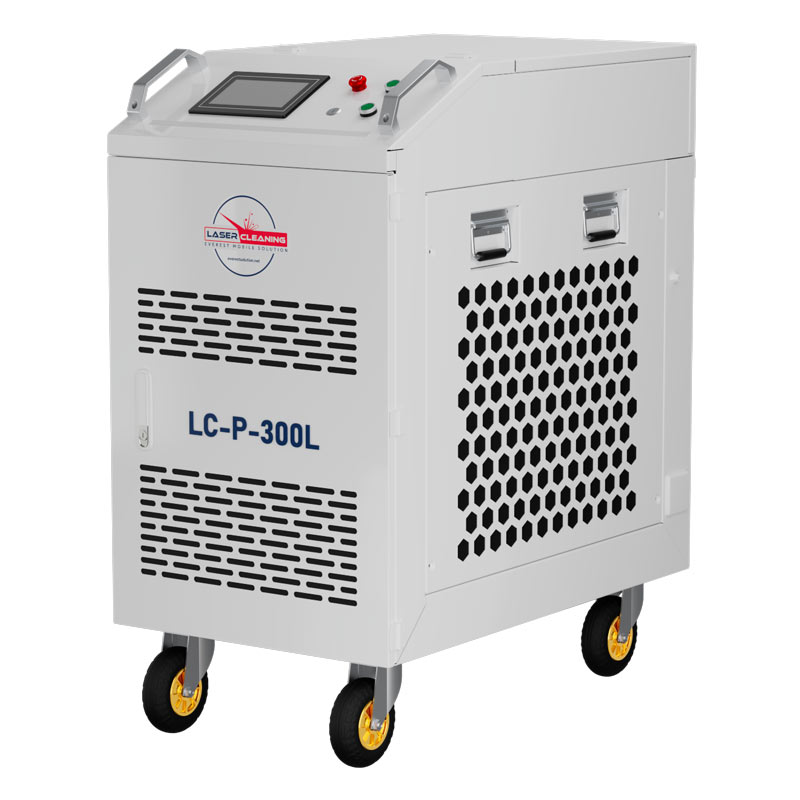

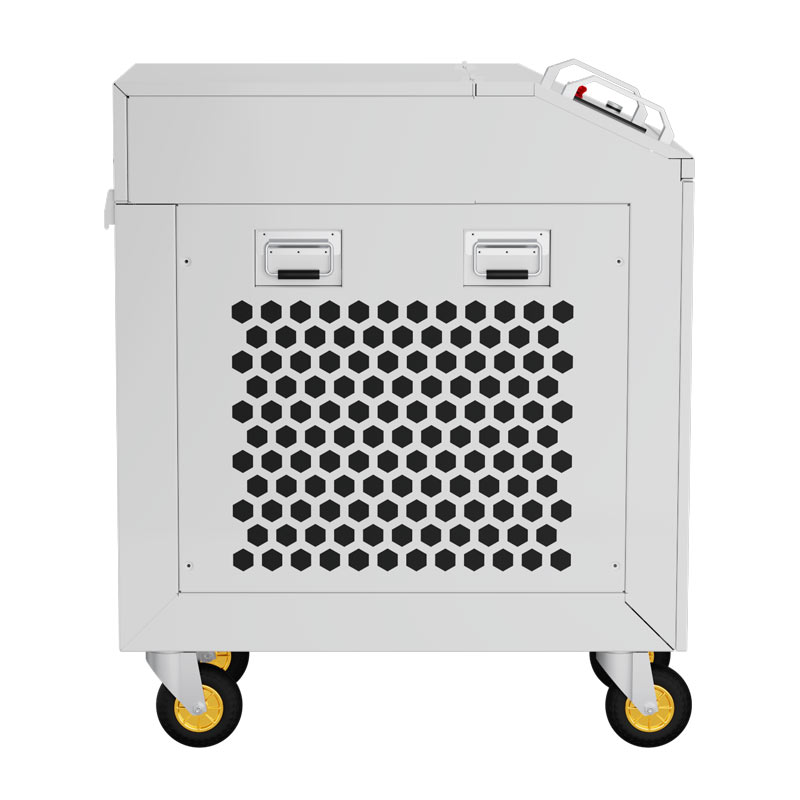

Laser LC-P-300L
300 W Laser Cleaner
Water Cooling
MPN: LC-P-300L
230V - 3 kW
300 W - 1064 nm
8 patterns - JPT Laser
Warranty 2
years
Shipped on Pallet
Laser LC-P-300L - 300 W Laser Cleaner Water Cooling
LC-P-300L is a professional laser cleaner for laser stripping operations and industrial surface cleaning.
300 W JPT laser source, up to 15 mJ energy, water cooling, provision for automation and integrated safety systems.
Functional Specifications
JPT Laser Source
300 W pulsed fiber laser with selectable energy levels from 1.5 mJ, 5 mJ, and 15 mJ to suit different applications.
Dual-Axis Laser Head
Ensures processing accuracy and cleaning uniformity thanks to the available 8 scanning patterns.
Integrated Safety
Equipped with safety interlock, machine lock with key and password, and temperature alarm.
Industrial Readiness
Dedicated connections for automation and water cooling for continuous use.
- Laser beam
- Material substrate
- Original surface
- Oxidized layer
- Corrosion layer
What is Laser Cleaning?
Laser Cleaning is an innovative and ecological technology designed to degrease, strip paint, and deoxidize surfaces quickly, effectively, and completely dry.
How it works:
- Targeted and Selective Action: The machine projects a focused laser beam onto the surface. The light energy is absorbed only by the dirt layer (such as rust, paint, scale, or soot), causing it to evaporate immediately.
- No Damage to Base Material: The underlying material (metals, stone, wood, or composites) reflects the light or remains below the damaging heat threshold. The original surface is thus cleaned perfectly, without scratches, wear, or geometric alterations.
- Contactless Technology: Since there is no mechanical friction or use of abrasive particles (as in sandblasting), the process is totally non-invasive.
- 100% Ecological: The system operates without the use of water, acids, or chemical solvents. This eliminates the production of sludge or toxic residues, drastically reducing operating and disposal costs.

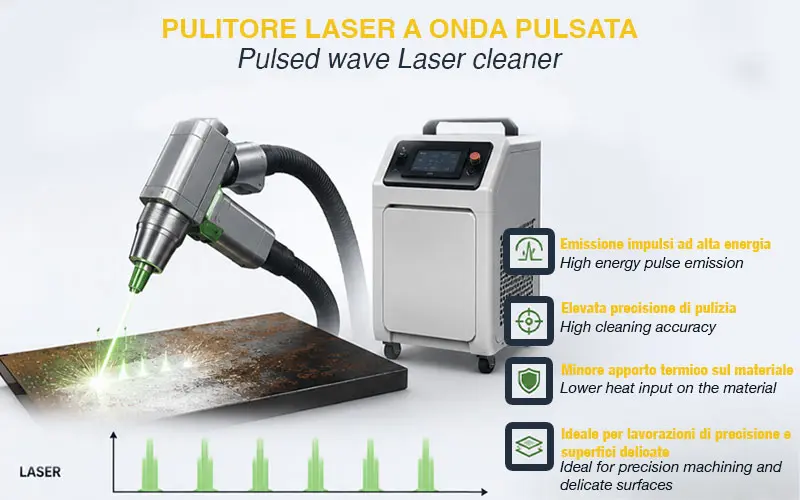

Pulsed Light Technology (MOPA)
- High Intensity Pulses: Releases energy in the form of very short pulse trains (in the nanosecond range) with extremely high instantaneous peak power.
- Photomechanical Interaction: Pulverizes the contaminant by exploiting the shock wave of light; the speed of the pulse prevents heat transfer to the substrate.
- Work Target: Specific for high-precision work and for treating surfaces that are delicate or sensitive to thermal shock. Ideal for conservation restoration of cultural heritage, precision industrial molds, thin car bodies, wood, and composite materials.
How to choose the energy level based on mJ
Laser energy determines the spatial distribution profile: low energies produce Gaussian distributions concentrated at high peak intensity, while high energies generate TopHat profiles with reduced intensity and a wider footprint.
- 2-5 mJ: maximum aggressiveness on refractory contaminants, high risk of substrate damage
- 15 mJ: hybrid profile, good compromise between effectiveness and control
- 50-100 mJ: uniform distribution, minimizes interaction with substrate, reduced aggressiveness
Materials Treatable with Laser Cleaning
- Aluminum and composite alloys
- Plaster and natural stone
- Wood
- Brass and gold
- Polymers and rubber
- Copper and iron
- Travertine and granite
- Ceramics and glass
- Composites and fiberglass
- Terracotta and marble
Application Fields
- Automotive and aerospace
- Conservation restoration and cultural heritage
- Industrial maintenance and molds
- Naval and maritime
- Building and construction
- Welding and heat treatments
- Tire cleaning and restoration
- Energy and oil & gas
- Electronics and microelectronics
- Wood and furniture processing
FEATURES
- Professional laser cleaner
- Laser stripping machine
- JPT laser source
- 300 W pulsed fiber laser
- Energy 1.5 / 5 / 15 mJ
- Wavelength 1064 nm
- Power supply 230 V single-phase
- Absorbed power 3 kW
- Water cooling system
- Dual-axis laser head
- 8 cleaning patterns
- Connections for automation
- Safety interlock
- Key and password lock
- 10 m fiber optic cable
- Focal lenses F=160 / F=254 / F=300 mm
- 10 protective lenses
- 2 OD7+ safety glasses
- Protective frame
Standard Equipment
- Protective glasses
- Tool kit
- Protective lenses
Optional Equipment
- Optional lenses
- Protective mask
Technical Data
| Power Supply | 230V |
| Consumption | 3 kW |
| Laser Source | JPT |
| Power | 300 W - Pulsed Fiber |
| Wavelength | 1064 nm |
| Energy | 1.5 mJ / 5 mJ / 15 mJ |
| Focal Lens | F=160 mm / F=254 mm / F=300 mm |
| Cooling System | Water |
| Cleaning Patterns | 8 patterns |
| Working Temperature | 0÷45 °C |
| Operating Humidity | 10÷80 % |
| Cable | Fiber - 10 m |

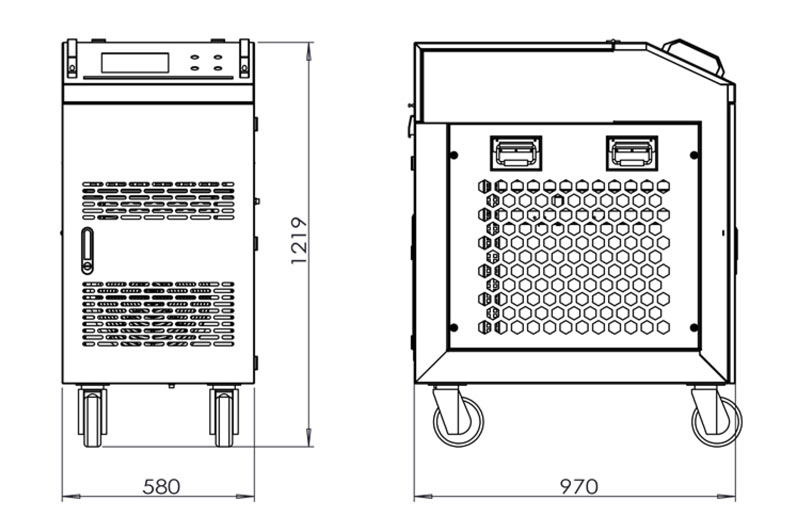

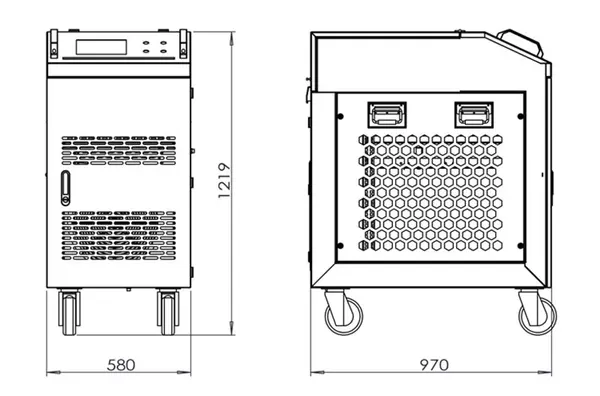

| Dimensions | 97 x 58 x 121.9 cm |
| Weight | 190 kg |
