Laser LC-P-300A
300W Laser Cleaner
Air Cooling
MPN: LC-P-300A
230V - 3 kW
300 W - 1064 nm
8 pattern - Laser JPT
Warranty 3
years
Shipped on Pallet

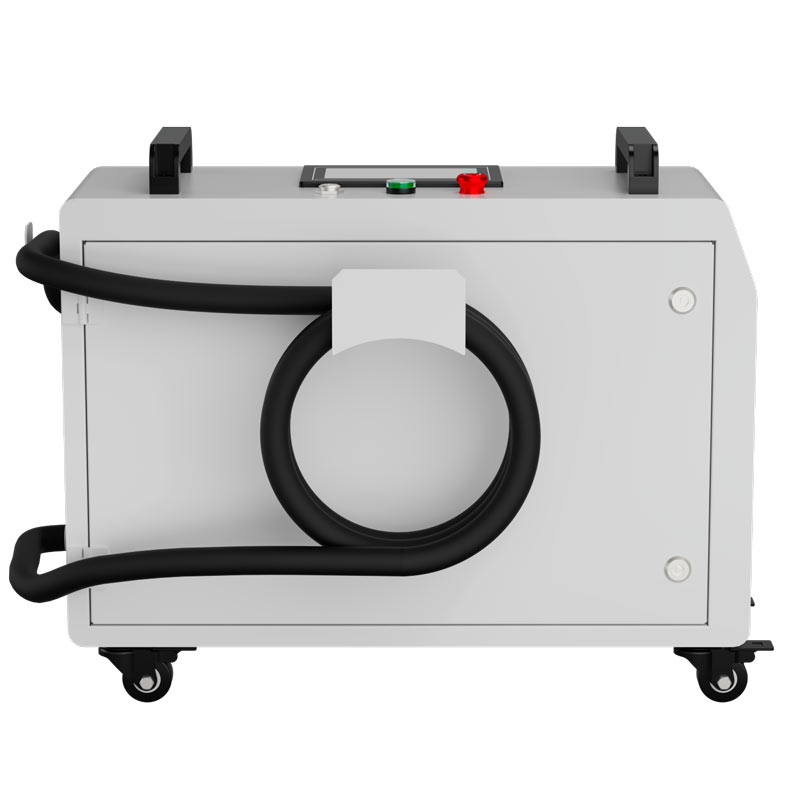

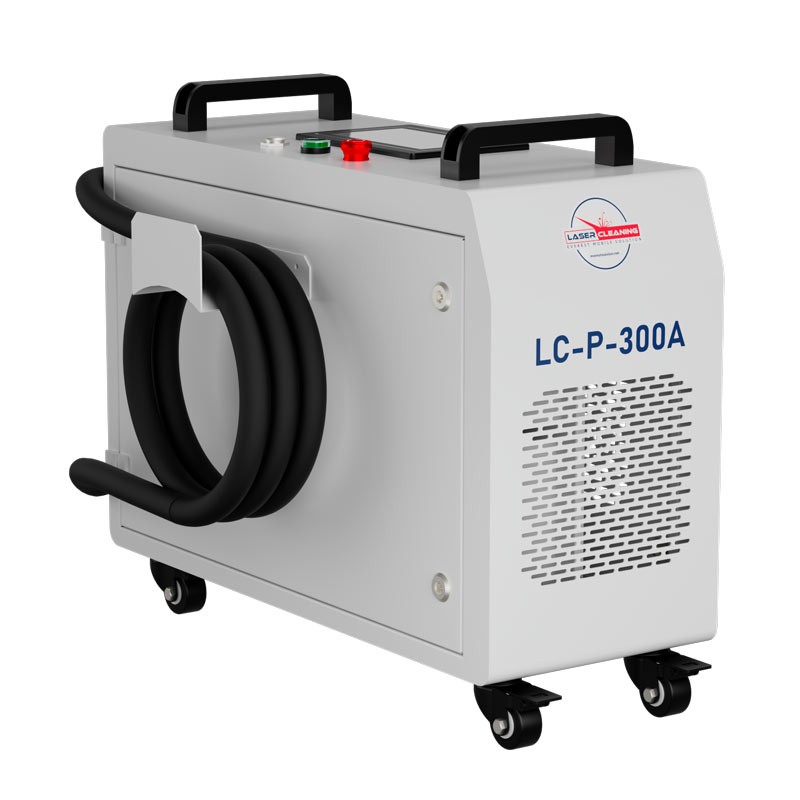

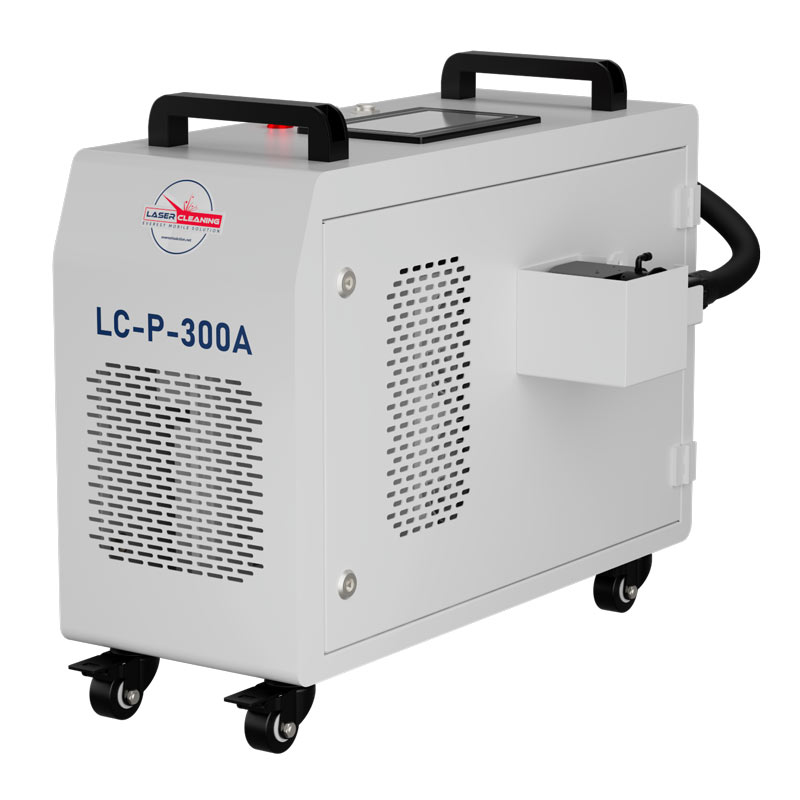

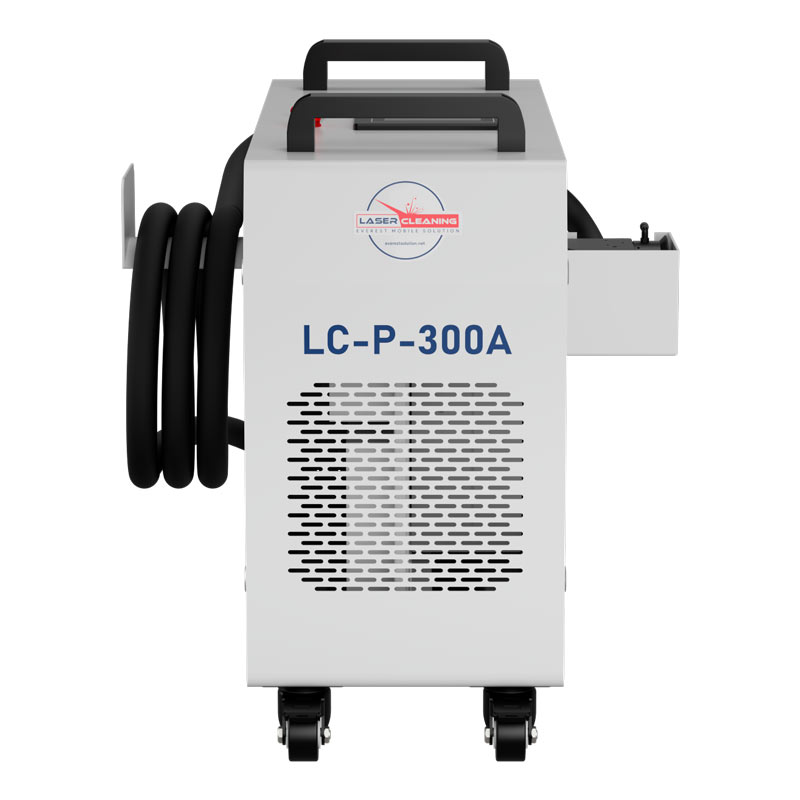

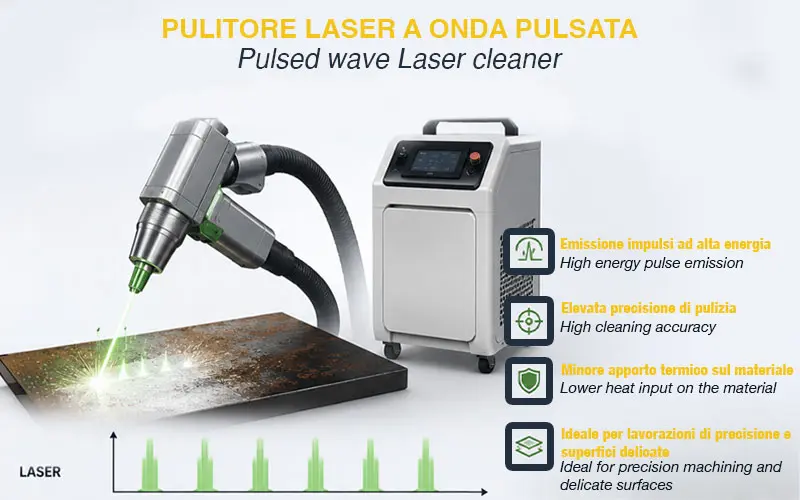

Laser LC-P-300A - 300W Air-Cooled Laser Cleaner
LC-P-300A is a 300W pulsed fiber laser cleaning system with JPT source , for laser pickling and removal of oxides, paints and surface contaminants.
It operates at 1064 nm with multiple energy control and provision for integration into automated lines .
FUNCTIONAL SPECIFICATIONS
JPT 300W laser source
System based on a 300W JPT laser source , designed to ensure emission stability, operational continuity and precision in industrial laser cleaning processes.
Adjustable pulsed energy
Energy management on 1.5 mJ / 5 mJ / 15 mJ levels to adapt the laser pickling process to different materials and contamination levels.
Integrated security system
Equipped with safety interlock , key and password lock and temperature alarm for operational control in industrial environments.
Automation Integration
Prepared for industrial automation connections, suitable for production lines and automated surface treatment systems.
Dual-axis laser head
Dual-axis operating head for improved beam management and increased coverage efficiency in laser cleaning.
- Laser beam
- Material substrate
- Original surface
- Oxidized layer
- Corrosion layer
What is Laser Cleaning?
Laser Cleaning (or laser cleaning ) is an innovative and ecological technology designed to degrease, strip paint and deoxidise surfaces quickly, effectively and completely dry.
How it works:
- Targeted and selective action : The machine projects a concentrated laser beam onto the surface. The light energy is absorbed only by the layer of dirt (such as rust, paint, scale, or soot), causing it to evaporate immediately.
- No damage to the base material : The underlying material (metal, stone, wood, or composites) reflects light or remains below the damaging heat threshold. The original surface is thus perfectly cleaned, without scratches, wear, or geometric alterations.
- Contactless technology : As there is no mechanical friction or the use of abrasive particles (as in sandblasting), the process is completely non-invasive.
- 100% Eco-Friendly : The system operates without the use of water, acids, or chemical solvents. This eliminates the production of sludge or toxic residues, drastically reducing operating and disposal costs.
Pulsed Light Technology (MOPA)
- High Intensity Pulses : Releases energy in the form of trains of very short pulses (in the order of nanoseconds) with extremely high instantaneous power peaks.
- Photomechanical Interaction : Pulverizes the contaminant using the shock wave of light; the speed of the pulse prevents heat transfer to the substrate.
- Application : Specifically designed for high-precision machining and the treatment of delicate or thermally sensitive surfaces. Ideal for the conservative restoration of cultural heritage, precision industrial molds, thin car bodies, wood, and composite materials.
How to choose the energy level based on mJ
The laser energy determines the spatial distribution profile: low energies produce concentrated Gaussian distributions with high peak intensity, while high energies generate TopHat profiles with reduced intensity and enlarged footprint.
- 2-5 mJ : maximum aggressiveness on refractory contaminants, high risk of damage to the substrate
- 15 mJ : hybrid profile, good compromise between effectiveness and control
- 50-100 mJ : uniform distribution, minimizes interaction with substrate, reduced aggressiveness
Materials Treatable with Laser Cleaning
- Aluminum and composite alloys
- Plaster and natural stone
- Wood
- Brass and gold
- Polymers and rubber
- Copper and iron
- Travertine and granite
- Ceramics and glass
- Composites and fiberglass
- Terracotta and marble
Fields of application
- Automotive and aeronautical
- Conservative restoration and cultural heritage
- Industrial maintenance and molds
- Naval and maritime
- Building and construction
- Welding and heat treatments
- Tire cleaning and restoration
- Energy and oil gas
- Electronics and microelectronics
- Wood and furniture processing
CHARACTERISTICS
- Professional laser cleaner
- Industrial laser pickling
- JPT laser source
- 200W Pulsed Fiber Laser
- Pulse energy 1-5 mJ
- Wavelength 1064 nm
- Power supply 230 V single phase
- Power consumption 2 kW
- Dual-axis laser head
- 8 cleaning patterns
- Lenses F=160 mm and F=254 mm
- Air cooling system
- Connections for automation
- Safety interlock
- Lock with key and password
- Temperature alarm
- 10m fiber optic cable
Standard Equipment
- Goggles
- Toolkit
- Protective lenses
Optional Equipment
- Optional lenses
- Protective mask
Technical Data
| Power Supply | 230V |
| Absorption | 3 kW |
| Laser Source | JPT |
| Power | 300 W - Pulsed fiber |
| Wave Length | 1064 nm |
| Energy | 1.5 mJ / 5 mJ / 15 mJ |
| Focal Lens | F=160 mm / F=254 mm / F=300 mm |
| Cooling System | Air |
| Cleaning Models | 8 patterns |
| Working Temperature | 0÷45 °C |
| Humidity Operation | 10÷80% |
| Cable | Fiber - 10 m |

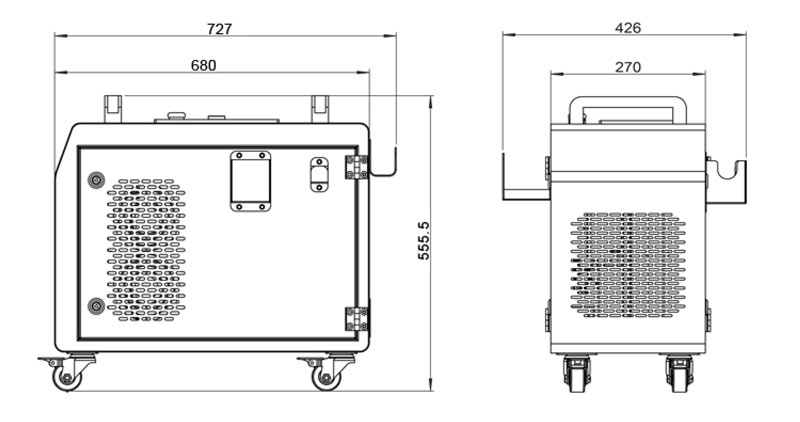

| Dimensions | 72.7 x 42.6 x 55.5 cm |
| Weight | 40 kg |
