Laser LC-C-3000L
Laser Pickling Cleaner
3000 W Continuous Wave

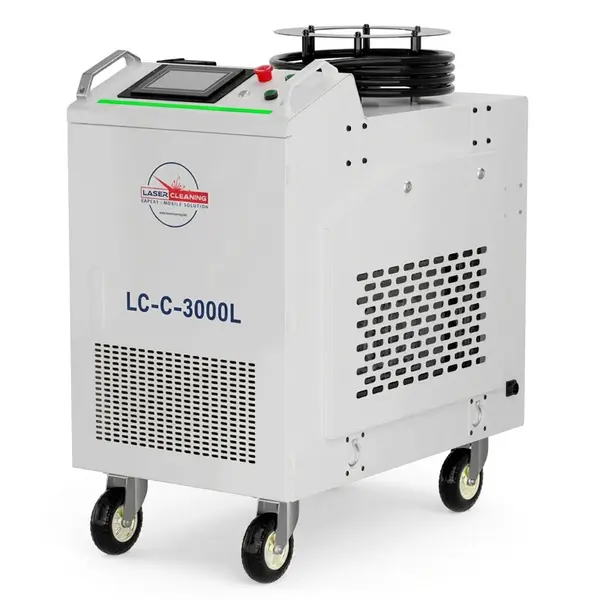

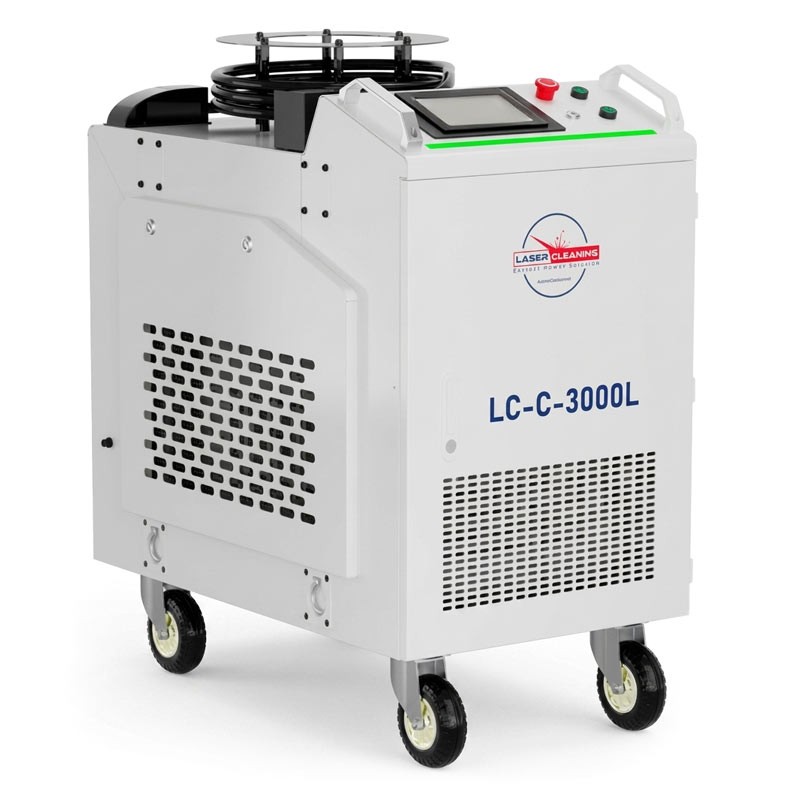

Laser LC-C-3000L - 3000W Continuous Wave Laser Cleaner

LC-C-3000L professional pickling laser cleaner with 3000W continuous fiber laser (1064 nm), designed for industrial cleaning and coating removal applications with high precision.

Dual-beam head with working width up to 300 mm , water cooling and 8 programmable cleaning patterns .

FUNCTIONAL SPECIFICATIONS

3000W Continuous Fiber Laser Source

The 3000W continuous wave (1064 nm) JPT Fiber Laser source ensures uniform cleaning, high operational stability and repeatable results, limiting the risk of altering the base material.

Dual-Beam Head and Cleaning Pattern

The dual-beam laser head , with a working area of up to 300 mm , optimizes processing times. The 8 configurable scanning patterns allow the process to be adapted to the shape of the part and the type of surface.

Precision Focus

The F=500 mm focal lens allows for precise operation on flat, curved or irregular surfaces, ensuring accurate selective removal even on complex components.

Water Cooling System

Integrated water cooling maintains stable temperatures during prolonged operations, ensuring operational continuity and helping to preserve the efficiency of the laser source over time.

Operational Safety

The machine integrates laser interlock , key or password protected access , temperature alarm and protective structure , to meet the safety requirements required in industrial environments.

Integration into Industrial Processes

The system can be inserted into automated production lines , integrating with handling robots and control systems to increase efficiency and productivity.

1. Laser beam
2. Material substrate
3. Original surface
4. Oxidized layer
5. Corrosion layer

What is Laser Cleaning?

Laser Cleaning (or laser cleaning ) is an innovative and ecological technology designed to degrease, strip paint and deoxidise surfaces quickly, effectively and completely dry.

How it works:

• Targeted and selective action : The machine projects a concentrated laser beam onto the surface. The light energy is absorbed only by the layer of dirt (such as rust, paint, scale, or soot), causing it to evaporate immediately.
• No damage to the base material : The underlying material (metal, stone, wood, or composites) reflects light or remains below the damaging heat threshold. The original surface is thus perfectly cleaned, without scratches, wear, or geometric alterations.
• Contactless technology : As there is no mechanical friction or the use of abrasive particles (as in sandblasting), the process is completely non-invasive.
• 100% Eco-Friendly : The system operates without the use of water, acids, or chemical solvents. This eliminates the production of sludge or toxic residues, drastically reducing operating and disposal costs.

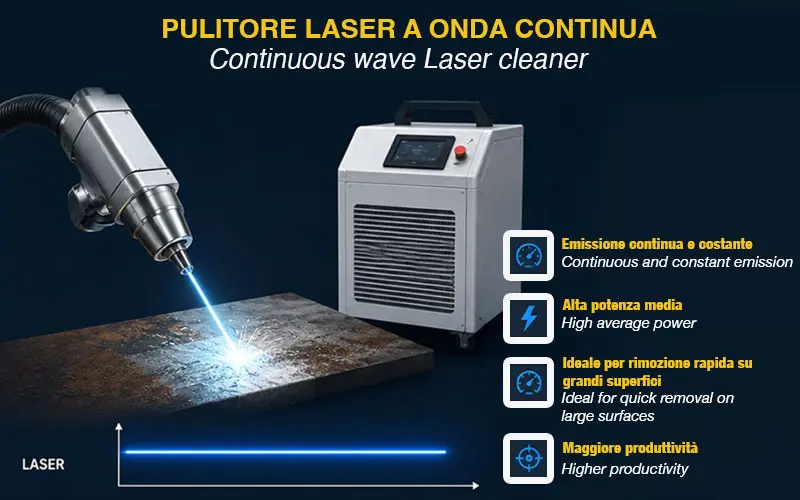

Continuous Wave (CW) Technology

• Constant Output : Develops a continuous and uninterrupted flow of energy to ensure maximum hourly productivity.
• Photothermal Interaction : It works by instantly heating the layer to be removed until it sublimates, melts or burns immediately.
• Application : Optimized for heavy-duty cleaning and paint stripping of large surfaces. Ideal for removing layers of rust, scale, and paint from ferrous metals and highly heat-resistant substrates.

Advanced Scanning System (Dual-Axis)

• Dynamic Kinematics : The dual-axis scanner head moves the laser beam simultaneously along the X and Y vectors via electronically guided galvanometric mirrors.
• 8 Cleaning Patterns : Allows you to select different scanning geometries (lines, circles, spirals, grids) to distribute energy based on material tolerance and part shape.
• Wide Range of Action : Guarantees a working area of up to 300 mm for a single pass, optimising execution times.

Materials Treatable with Laser Cleaning

• Aluminum and composite alloys
• Plaster and natural stone
• Wood
• Brass and gold
• Polymers and rubber
• Copper and iron
• Travertine and granite
• Ceramics and glass
• Composites and fiberglass
• Terracotta and marble

Fields of application

• Automotive and aeronautical
• Conservative restoration and cultural heritage
• Industrial maintenance and molds
• Naval and maritime
• Building and construction
• Welding and heat treatments
• Tire cleaning and restoration
• Energy and oil gas
• Electronics and microelectronics
• Wood and furniture processing

CHARACTERISTICS

• Professional 3000W continuous fiber laser cleaner
• Dual-beam laser axis - 300 mm travel
• JPT 1064 nm laser source
• 8 programmable cleaning patterns
• Integrated water cooling
• Power supply 400V three-phase - Consumption 10 kW
• Security interlock and key/password lock
• Connections for production line automation
• 10m fiber optic cable
• Focal length F=500 mm
• Protective frame
• Operating temperature 0-40 °C

Standard Equipment

• Goggles
• Toolkit
• Protective lenses

Optional Equipment

• Optional lenses
• Protective mask
