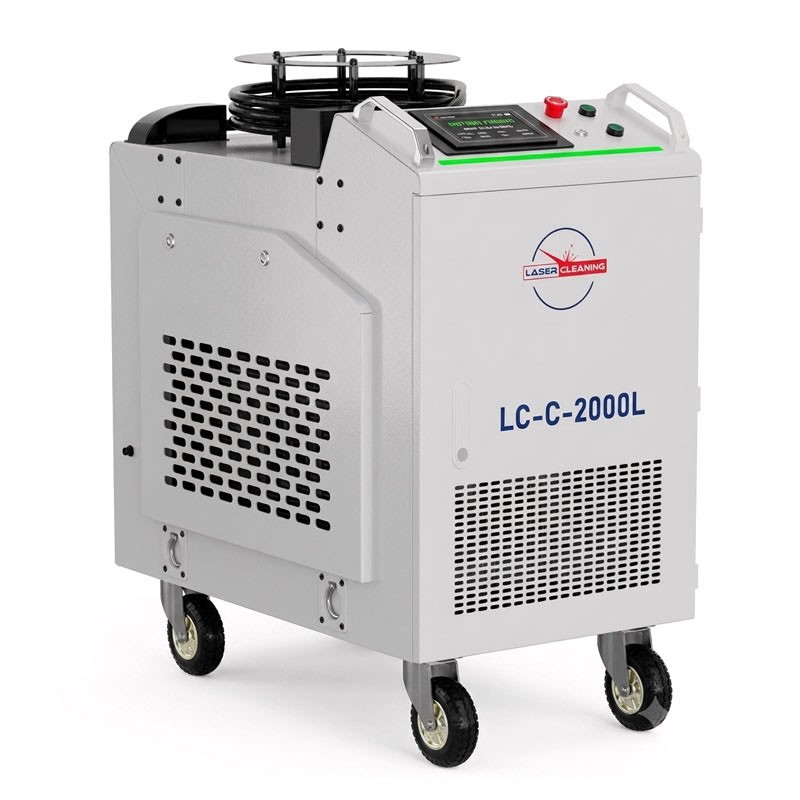

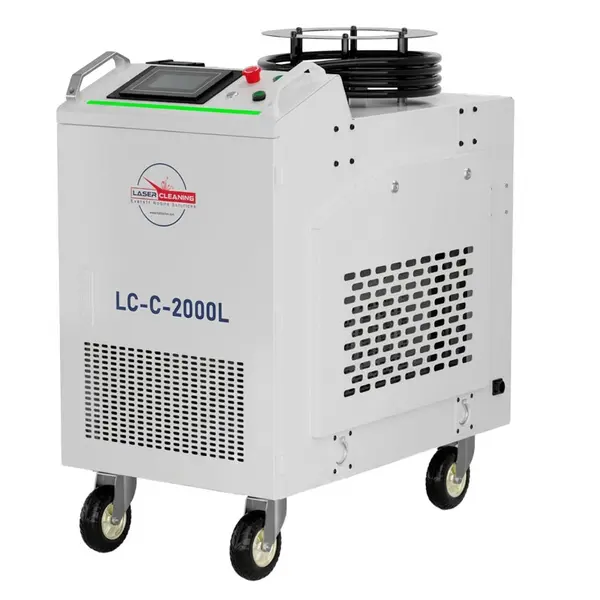

Laser LC-C-2000L
Professional Laser Cleaner
2000 W Dual Axis

Laser LC-C-2000L - 2000W Continuous Wave Laser Cleaner

LC-C-2000L professional laser pickling machine with 2000W continuous fiber laser source (1064 nm), dedicated to industrial professionals for high-precision cleaning and coating removal.

Dual-beam head operable up to 300 mm , integrated water cooling and 8 programmable cleaning patterns .

FUNCTIONAL SPECIFICATIONS

2000W Continuous Fiber Laser Source

The JPT 2000W continuous technology fiber laser source (1064 nm) guarantees controlled surface penetration and repeatability in work cycles, with reduced risk of damage to the substrate.

Dual Axis and Programmable Cleaning Patterns

The dual-beam laser head with a maximum travel of 300 mm reduces cycle times. The 8 customizable cleaning patterns adapt the scanning profile to the component geometry and material type.

Focusing Accuracy

The F=500 mm focal lens allows precise machining on curved, flat and irregular surfaces, with minimal margins of error for selective removal applications on complex components.

Water Cooling

The integrated water cooling system allows continuous cycles without thermal slowdowns, maintaining constant performance and extending the useful life of the laser source.

Security and Access Control

Laser interlock , key/password lock , temperature alarm and protective frame ensure compliance with European industrial safety standards.

Industrial Automation

The machine can be integrated into automatic production lines , coordinated with loading/unloading robots and control systems to maximize volumes.

1. Laser beam
2. Material substrate
3. Original surface
4. Oxidized layer
5. Corrosion layer

What is Laser Cleaning?

Laser Cleaning (or laser cleaning ) is an innovative and ecological technology designed to degrease, strip paint and deoxidise surfaces quickly, effectively and completely dry.

How it works:

• Targeted and selective action : The machine projects a concentrated laser beam onto the surface. The light energy is absorbed only by the layer of dirt (such as rust, paint, scale, or soot), causing it to evaporate immediately.
• No damage to the base material : The underlying material (metal, stone, wood, or composites) reflects light or remains below the damaging heat threshold. The original surface is thus perfectly cleaned, without scratches, wear, or geometric alterations.
• Contactless technology : As there is no mechanical friction or the use of abrasive particles (as in sandblasting), the process is completely non-invasive.
• 100% Eco-Friendly : The system operates without the use of water, acids, or chemical solvents. This eliminates the production of sludge or toxic residues, drastically reducing operating and disposal costs.

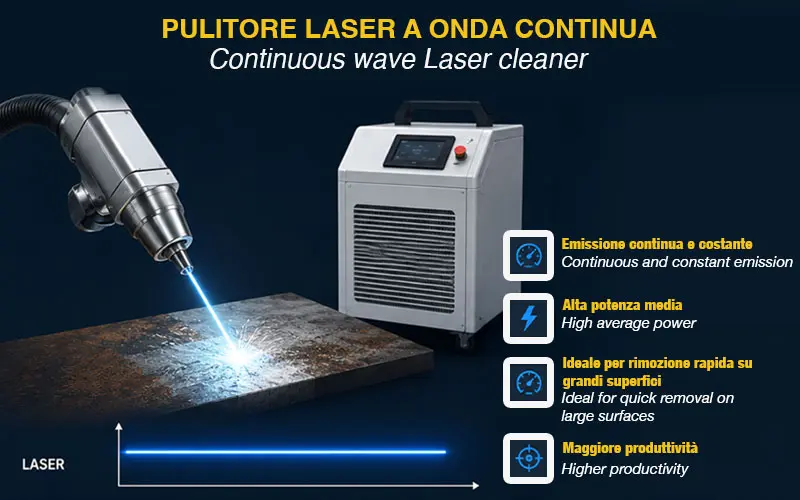

Continuous Wave (CW) Technology

• Constant Output : Develops a continuous and uninterrupted flow of energy to ensure maximum hourly productivity.
• Photothermal Interaction : It works by instantly heating the layer to be removed until it sublimates, melts or burns immediately.
• Application : Optimized for heavy-duty cleaning and paint stripping of large surfaces. Ideal for removing layers of rust, scale, and paint from ferrous metals and highly heat-resistant substrates.

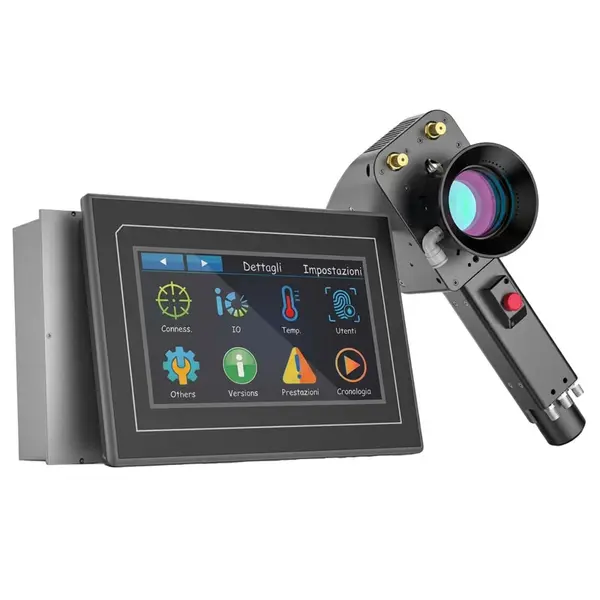

Advanced Scanning System (Dual-Axis)

• Dynamic Kinematics : The dual-axis scanner head moves the laser beam simultaneously along the X and Y vectors via electronically guided galvanometric mirrors.
• 8 Cleaning Patterns : Allows you to select different scanning geometries (lines, circles, spirals, grids) to distribute energy based on material tolerance and part shape.
• Wide Range of Action : Guarantees a working area of up to 300 mm for a single pass, optimising execution times.

Materials Treatable with Laser Cleaning

• Aluminum and composite alloys
• Plaster and natural stone
• Wood
• Brass and gold
• Polymers and rubber
• Copper and iron
• Travertine and granite
• Ceramics and glass
• Composites and fiberglass
• Terracotta and marble

Fields of application

• Automotive and aeronautical
• Conservative restoration and cultural heritage
• Industrial maintenance and molds
• Naval and maritime
• Building and construction
• Welding and heat treatments
• Tire cleaning and restoration
• Energy and oil gas
• Electronics and microelectronics
• Wood and furniture processing

CHARACTERISTICS

• Professional 2000W continuous fiber laser cleaner
• Dual-beam laser axis - 300 mm travel
• JPT 1064 nm laser source
• 8 programmable cleaning patterns
• Integrated water cooling
• Power supply 400V three-phase - Consumption 10 kW
• Security interlock and key/password lock
• Connections for production line automation
• 10m fiber optic cable
• Focal length F=500 mm
• Protective frame
• Operating temperature 0-45 °C

Standard Equipment

• Goggles
• Toolkit
• Protective lenses

Optional Equipment

• Optional lenses
• Protective mask
