Idromatic Astra Vortex
Steam Generator Injection Extraction

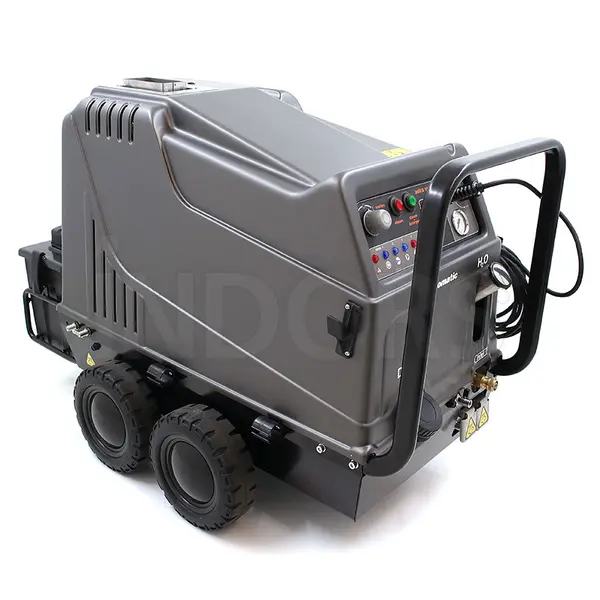

Idromatic Astra Vortex - Steam Generator Injection Extraction

The Idromatic Astra Vortex steam generator offers an effective solution for cleaning and sanitising various surfaces. This device combines the ability to deliver steam with the suction function, without the need for traditional vacuum cleaners, using the Venturi effect , which means that no filters or electric motors are required for conventional suction.

Thanks to the simultaneous injection of steam and suction , this generator can effectively remove all types of dirt from any type of surface.

A unique feature is the ability to use three operators simultaneously , thanks to the machine's three independent outputs .
The three functions can be used in succession by the same operator or by multiple operators at the same time , allowing for the creation of a continuous and efficient cleaning process .

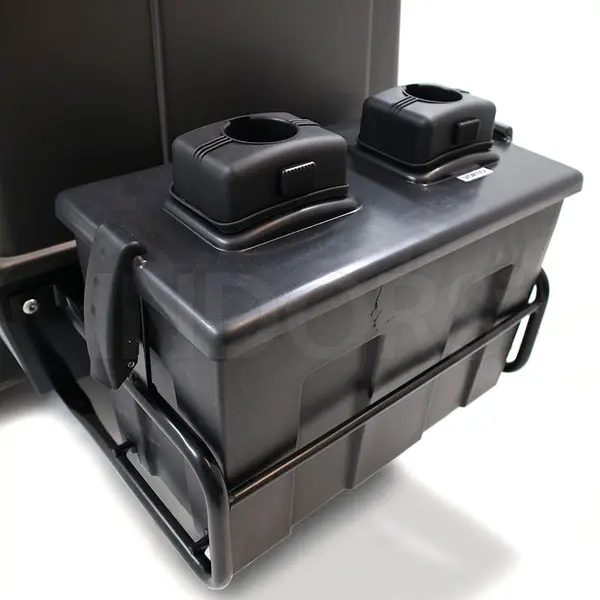

The dirt is loosened thanks to the temperature of the steam and is immediately sucked into the collection bin located at the back of the machine.

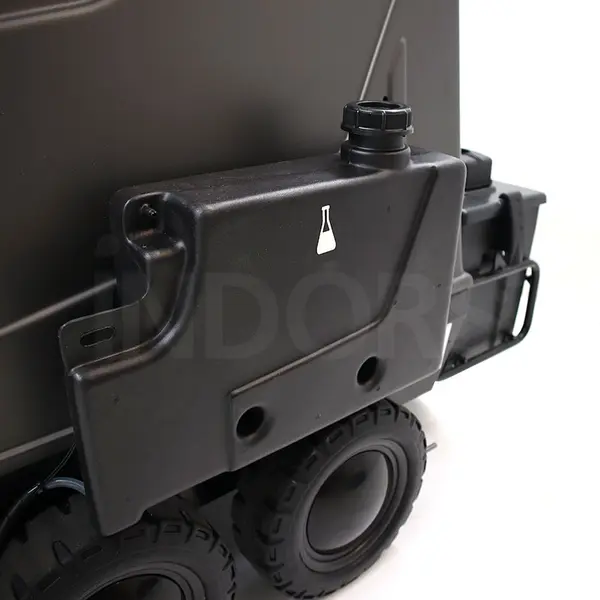

The machine is also designed for the use of chemical products and has a detergent tank positioned next to the machine, which allows you to use the appropriate detergents for different cleaning needs.

The warm-up time before use is only 5 minutes , so the device heats up quickly and can be used without long waiting.

Furthermore, in case of absence of electrical grid, the machine can be powered by a small generator , offering greater flexibility of use in different situations.

TECHNICAL SPECIFICATIONS

The Idromatic Astra Vortex is a high pressure cleaning system powered by 230V, its operating pressure is 9 bar , which allows for effective cleaning on a variety of surfaces.

The maximum steam flow rate is 40 kg/h , providing a high amount of steam to perform the cleaning job, the power consumption is 0.5 kW , making the system energy efficient .

USE THREE OPERATOR

The Idromatic Astra Vortex has three steam outlets to allow three operators to use it simultaneously , thus increasing productivity .

The heating power of the system is 48 kW , which ensures rapid steam generation to meet cleaning needs. The maximum boiler temperature is 220 °C , allowing for high-temperature steam to remove stubborn dirt and residues , while the maximum output water temperature is 180 °C .

The Idromatic Astra Vortex is equipped with tanks of adequate size for the different substances required for its operation:

• 25 L water tank;
• 20L boiler heating diesel tank;
• 8L detergent tank;
• 15 L recovery tank;

The Idromatic Astra Vortex has a maximum suction of 180 mBar , ensuring powerful suction of impurities during the cleaning process. The overall operating weight is 165 kg (130 kg empty) , with dimensions of 107 x 72 x 145 cm , making it relatively compact and easy to move.

In conclusion, the Idromatic Astra Vortex is a high pressure cleaning system with numerous features that make it suitable for a variety of applications.

With its heat output, steam flow rate, adequately sized tanks and other mentioned specifications, it is capable of delivering high performance and effective cleaning results .

FIELDS OF APPLICATION

• Car washing both mobile and in washing stations
• Repair shops
• Graffiti and gum removal
• Industrial Machinery Cleaning
• Cleaning sports equipment
• Cleaning of environments and equipment for animals
• Urban weeding
• Food industry

CHARACTERISTICS

• Single phase power supply
• Operating pressure 9 bar
• Maximum steam flow rate 40 Kg/h
• Power consumption 0.5 kW
• Steam outputs 3 operators
• Thermal power 48 kW
• Maximum boiler temperature 220 °C
• Maximum water outlet temperature 180 °C
• Water tank 25 L
• Diesel tank 20 L
• Detergent tank 8 L
• Recovery tank 15 L
• Maximum suction 180 mBar
• Weight 165 Kg
• Dimensions 107 x 72 x 145 cm
