Fortador Pro Max 16 bar
Steam Cleaner

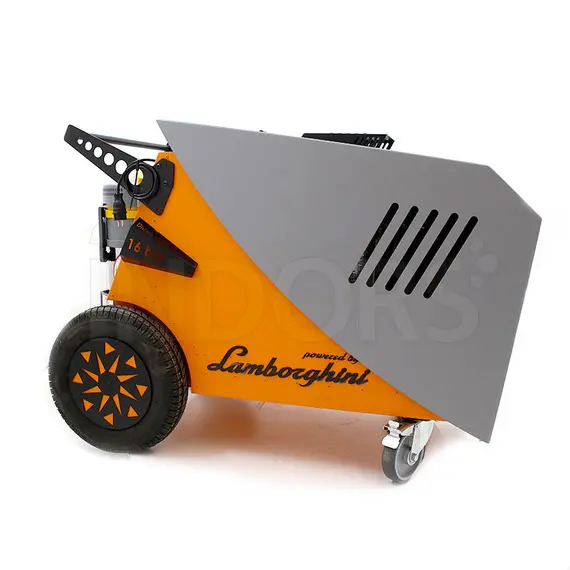

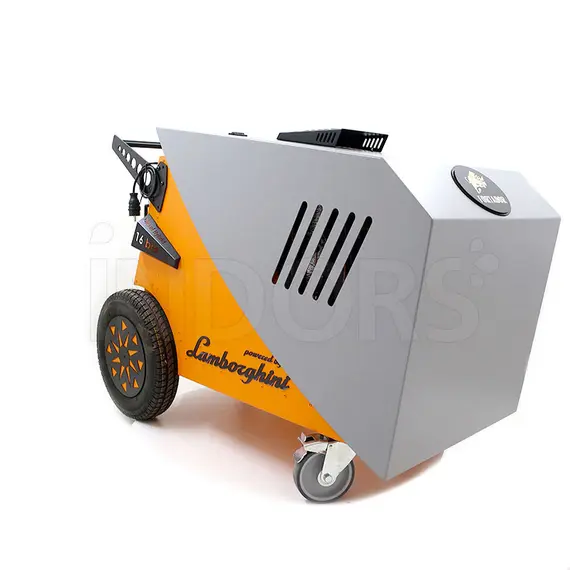

Fortador Pro Max 16 bar - Professional Steam Cleaner with 3 outlets

Fortador Pro Max 16 Bar is a cutting-edge professional steam cleaner , designed to ensure high performance and flexibility. Thanks to the ability to operate with three workstations simultaneously , it is possible to clean two cars with steam and, at the same time, wash the upholstery with a combined detergent and steam system. Made in collaboration with Lamborghini , this model stands out for its modern and elegant design, with an eco-friendly aluminum body resistant to corrosion.

Designed for professional applications such as mobile car washes , workshops, car detailing centers and industries , Fortador's Pro Max 16 bar does not require special licenses or sewage systems thanks to the absence of chemical waste or sewage . Its characteristics make it an indispensable ally to ensure rapid, effective and sustainable cleaning .

Technical Specifications

Fortador Pro Max operates at a maximum pressure of 16 bar , delivering steam at a temperature of up to 140°C , while the internal boilers reach 280°C . Powered by a 230V single-phase diesel-electric hybrid engine with a power of almost 50 horsepower , it offers efficient consumption of only 0.6 L/h . The appliance has two boilers and dedicated tanks for 25 L water and 15.5 L fuel , as well as two detergent tanks of 5 L each .

With rapid heating in just 7 minutes and the ability to produce steam up to 165 kg/h , Pro Max 20 bar guarantees a remarkable working speed , perfect for high-volume professional contexts. The device uses high-quality materials, such as an eco-friendly aluminum body and steel boilers for boilers , ensuring durability and excellent performance.

Functional Specifications

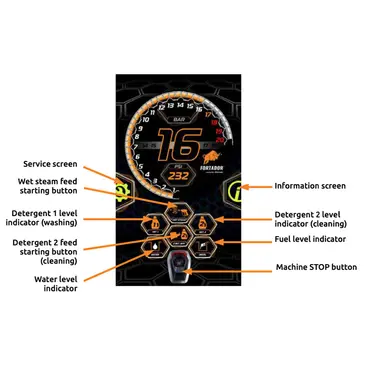

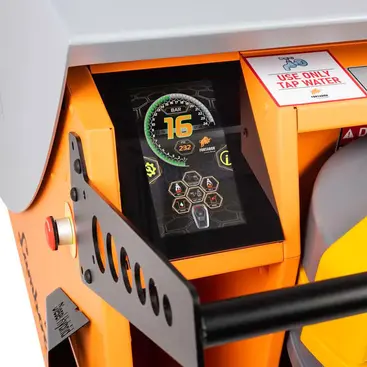

Intuitive touchscreen

The Fortador Pro Max is equipped with a 7-inch LCD touchscreen that allows you to manage all the functions quickly and easily. The screen offers essential information such as the fluid level , the working hours counter , the pressure gauge and details on the operation of the pumps . In addition, the system warns the operator about the need for maintenance interventions , such as cleaning the filter , descaling or checking the sensors .

Three simultaneous workstations

Thanks to the ability to deliver two hot detergents together with steam , Pro Max allows two operators to work on different surfaces at the same time, while a third uses the system to wash the upholstery. This feature drastically reduces work times.

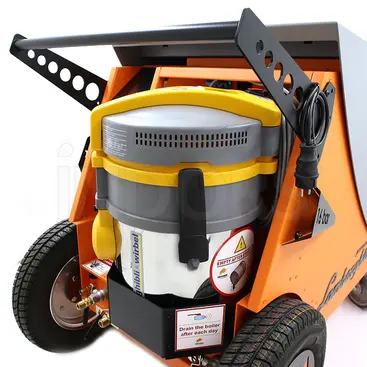

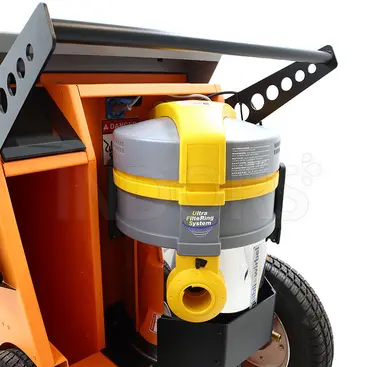

Integrated vacuum cleaner

Along with the rich equipment included with the machine , there is a powerful vacuum cleaner and liquids , made by the prestigious Italian company Ghibli & Wirbel , ideal for cleaning carpets and car interiors, ensuring impeccable results even in industrial contexts.

Ecological and effective cleaning

Fortador Pro Max 16 bar generates steam at high temperatures , ideal for sanitizing surfaces naturally without the use of aggressive chemicals . This feature makes it suitable for applications in the medical and food sectors. Furthermore, by not producing liquid or chemical waste, it eliminates the need for special environmental authorizations.

Versatility without borders

Thanks to Plug In technology and compatibility with the Fortador Power Bank V series, Pro Max can operate completely autonomously even in the absence of electrical power for up to 10 hours , making it perfect for services in remote or infrastructure-free locations.

Advanced security and protection

The device is equipped with a fuel heating system , protections against electric shock , an emergency STOP button and a water removal function to prevent freezing . These measures ensure maximum safety during use.

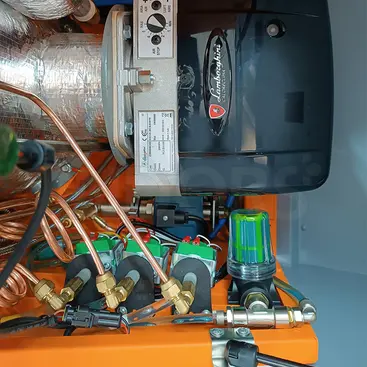

Machine Description

1. Detergent, water and fuel tanks
2. Water heater
3. Hydraulic line - solenoid valve
4. Hydraulic line - wet storm sensor tilt filter
5. Pressure switch
6. Burner
7. Fuel filter
8. Liquid flow, detergent pumps 1 and 2
9. Water Filter
10. Water Pump

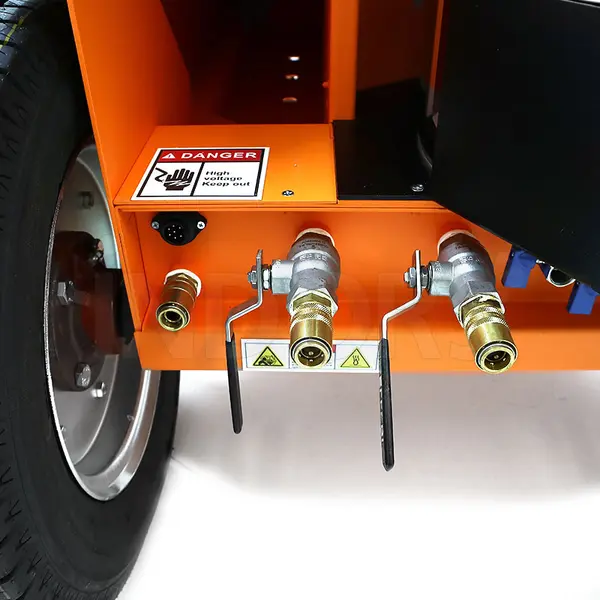

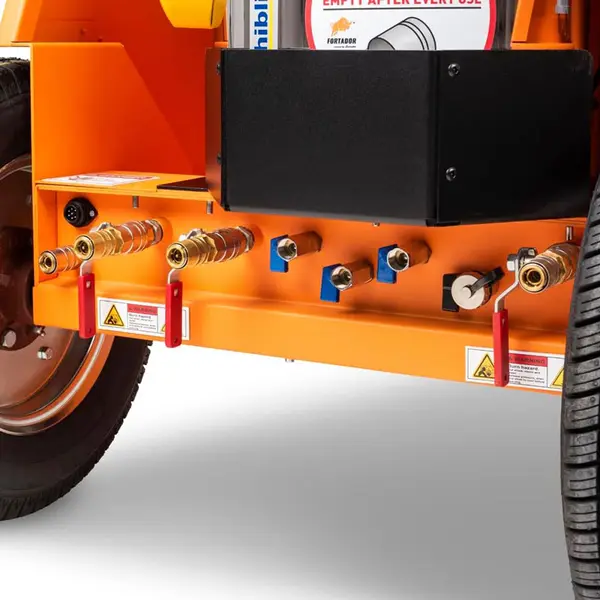

11. Wash hose power socket
12. Washing hose connection - safety quick coupling, valve
13. Cleaning hose connection - safety quick connector, valve
14. Cleaning hose connection - safety quick connector, valve
15. Water Drain - Valve
16. Detergent Drain 1 - valve
17. Detergent Drain 2 - valve
18. Permanent Water Connection - valve
19. Boiler steam exhaust – quick coupling, valve

Watch the Video

Characteristics

• Single phase power supply 230V
• Pressure 16 bar
• Steam Temperature 120-140°C
• Fuel heating system
• Ghibli & Wirbel wet/dry vacuum cleaner
• Touch screen display
• Emergency STOP button
• Chemical-free descaling system
• Steel boiler
• 2 boilers
• Aluminum housing
• Shockproof protection
• Possibility of direct connection from the garden hose
• Warm-up time: only 2-7 min

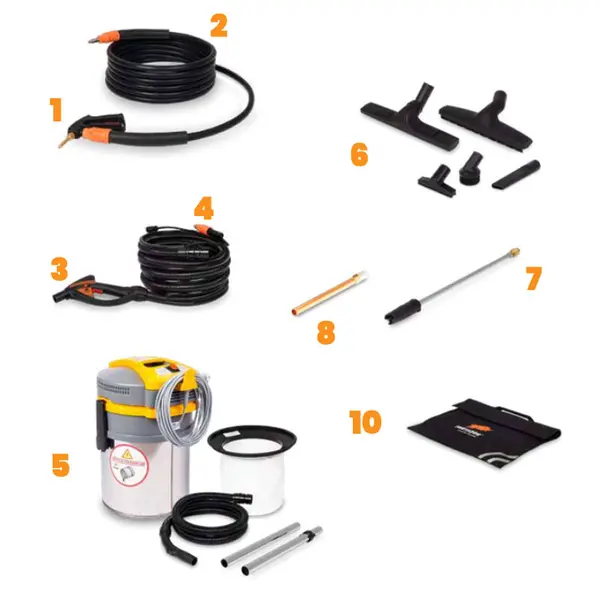

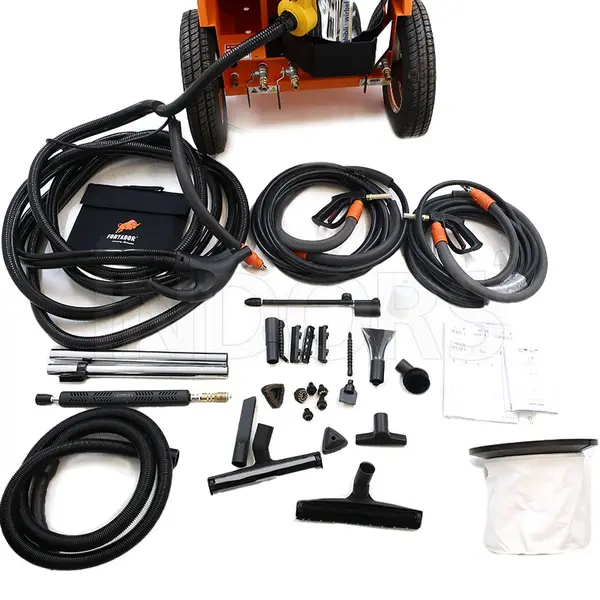

Standard Equipment

1. RL20 Steam Anti-scald Gun (2 pcs)
2. Insulated pressure hose for steam 10m (2 pcs)
3. Gun with small nozzle for upholstery washing
4. Insulated Pressure Hose for Steam Cleaning and Extraction 10m
5. Ghibli & Wirbel Dry/Wet Vacuum Cleaner
6. Set of tips
7. Short spear 50 cm
8. Connection with drain
9. Carrying belts (3 pcs)
10. Repair set
