Fiac AB 300 LONG LIFE
15 BAR
5.5 or 7.5 HP

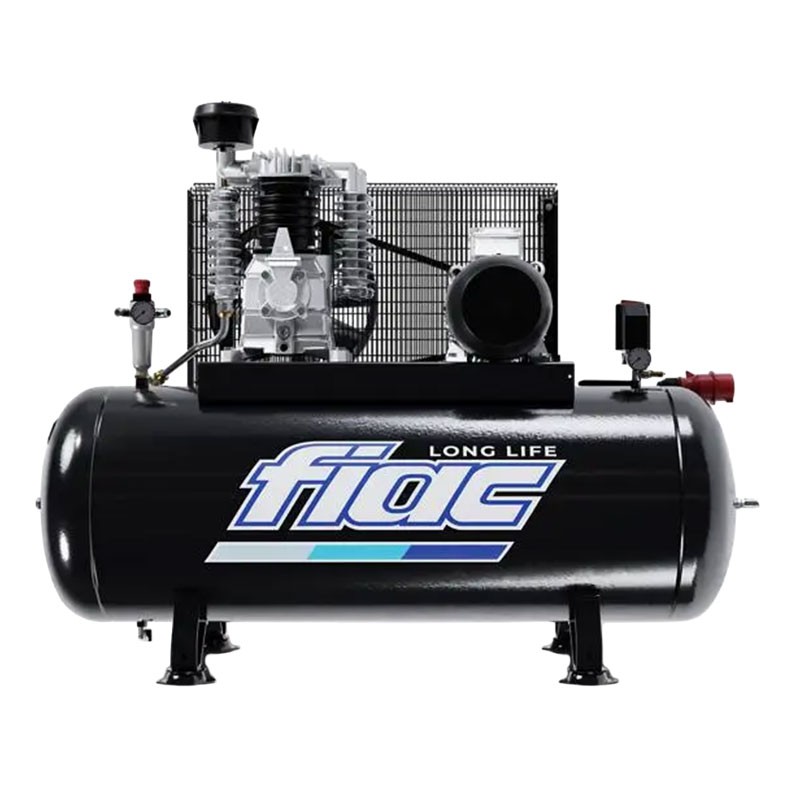

Fiac AB 300-678/998 F LLD - Industrial Compressor Long Life 270 L from 5.5 to 7.5 HP

The AB 300-678 F LLD industrial compressor cod. 1121520169 and Fiac AB 300-998 F LLD cod. 1121520144 are three-phase 14 bar compressors with belt drive mounting an AB 678 or AB 998 type pumping unit at very low speeds for a longer life of the compressor over time.

This Fiac AB Long Life compressor has reduced vibrations due to the study of the design of the pistons and connecting rods, with perfect balancing of the crankshaft , to ensure greater durability.

The LONG LIFE Fiac AB 300-678 F LLD compressors and Fiac AB 300-998 F LLD have high efficiency thanks to the low speed and motor with insulation class IP 54 .

The tank has a capacity of 270 L and is made of high-resistance steel sheet , painted with epoxy powders .

Built with high quality technical materials, for superior performance and exceptional durability, these Fiac LONG LIFE compressors have a three-phase 400V power supply.

Available Models

Functional Specifications

LONG LIFE oil lubricated compressor

Oil lubrication is optimized to ensure efficient operation and require minimal maintenance over time, minimizing friction.

Silent operation

The presence of the flywheel with helical blades contributes to a notable reduction in noise level and a superior cooling system .

The cast iron cylinders and the cylinder head designed with large fins play a key role in facilitating cooling. In addition, the helical-bladed flywheel helps to further improve cooling and reduce the overall sound level of the compressor. This attention to design results in a quieter compressor that is less prone to overheating .

270 L steel sheet tank

The Long Life Fiac AB 300-678 F LLD cod. 1121520169 and Fiac AB 300-998 F LLD cod. 1121520144 compressors are equipped with a tank with a capacity of 270 L.

Made of high-strength steel sheet and painted with epoxy powders, the tank has structural solidity and protection against corrosion . These Fiac compressors not only offer advanced performance but also represent long-lasting investments for industrial needs, combining efficiency , reliability and technological innovation.

They fly with helical blades which contribute to obtaining greater cooling and a lower noise level.

Characteristics

• Three-phase compressor 400V Long Life
• 2-cylinder two-stage engine
• Max pressure 14 bar
• Capacity 270 L
• Power from 5.5 to 7.5 HP
• Engine speed from 700 to 850 RPM
• Flow rate from 465 to 730 L/min
• Noise level from 72 to 73 dB
