ABAC FG 54 (G3/8) AB
Air Filter Grade G
MPN: 8102855068
Liquids and Powders
900 L/min.
0.3 mg/m³
€132.00
€108.20 tax excl.

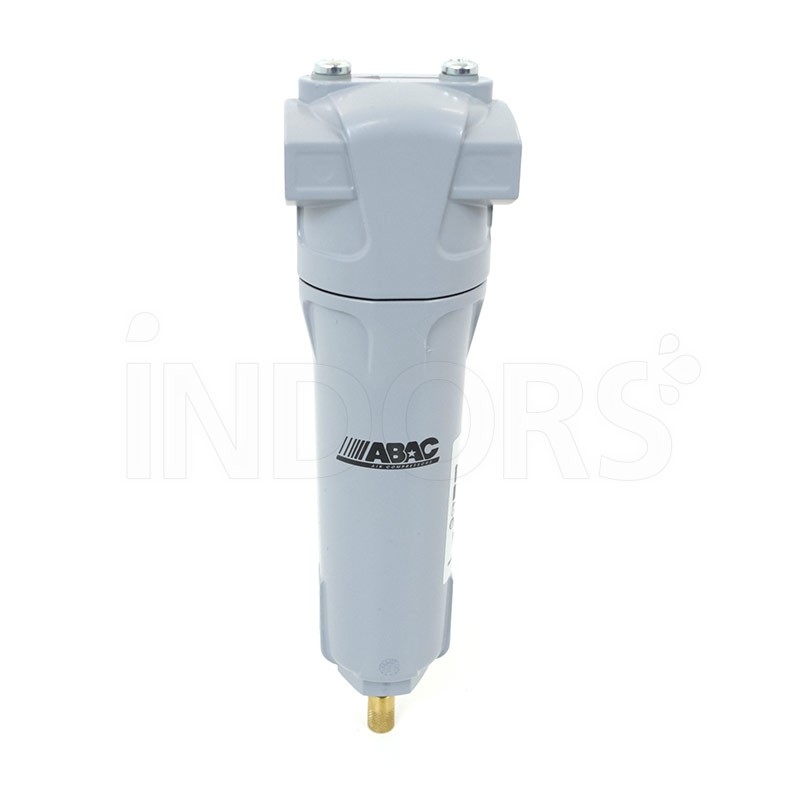

ABAC FG 54 (G3/8) AB - Coalescing filter
The original ABAC FG 54 (G3/8) filter is designed to protect compressors from the ingress of liquid particles such as oil. Using a compressor filter is essential to prevent contaminants from interacting with each other and creating abrasive and corrosive emulsions for the machine.
This filter can operate in environments with temperatures ranging from -20°C to 50°C with inlet air pressure ranges from 1.5 bar to 16 bar. The inlet air temperature can range from 0°C minimum to 80°C maximum.
The ABAC FC 54 (G3/8) - AB liquid and dust filter is able to work for approximately 12 months without needing to be replaced for a maximum of 8000 hours .
| Nominal capacity | 900 L/min |
| Connection0 | 3/8" |
| Maximum Pressure | 16 bars |
| Particulate removal capacity | - |
| Condensable removal capacity | 0.3 mg/m³ |
| Filtration Degree | G |
Technical Specifications
The ABAC FG 54 (G3/8) AB filter has a nominal inlet flow rate of 900 L/min with a 3/8'' BSP connection. The coalescing filter in question has dimensions 70x24x231 mm while the drain length and service distance are 28 mm and 70 mm respectively.
.jpg)
Advantages
- Purify the air from its oil/dust contamination
- Increased production and quality
- Ensure greater efficiency and reliability
- Less wear and tear on the distribution network and equipment
- Simple design, excellent performance
- Reduction of maintenance costs
- Different cartridges with specific filtration qualities
- Higher quality of the final product
Areas of use
- Pharmaceutical industry
- Food industry
- Chemical and packaging industry
- Pneumatic transport
- Industrial painting
- Control systems
- Generic tools
- Any application that uses compressed air
Performance data
| Aerosol concentration of the outlet oil | 0.3 mg/m³ |
| Efficiency on total mass | >99.25% |
| Exhaust air quality class | 3 particles/oil |
| Initial pressure drop across the filter in dry applications | 0.055 bar |
| Initial pressure drop across the filter in wet applications | 0.125 bar |
Technical Data
| L/min | 900 |
| Connection (BSP) | 3/8 |
| Filter size | 70 x 24 x 231 mm |
| Exhaust length | 28 mm |
| Service distance | 70 mm |
| Filter volume | 0.3 L |
| Weight | 0.6 kg |
| Efficiency on total mass (%) | >99.25 |
| Oil aerosol concentration at outlet (mg/m3) | 0.3 |
| Air quality class at outlet (particles / oil) | 3 |
Technical Data
| L/min | 900 |
| Connection (BSP) | 3/8 |
| Filter size | 70 x 24 x 231 mm |
| Exhaust length | 28 mm |
| Service distance | 70 mm |
| Filter volume | 0.3 L |
| Weight | 0.6 kg |
| Efficiency on total mass (%) | >99.25 |
| Oil aerosol concentration at outlet (mg/m3) | 0.3 |
| Air quality class at outlet (particles / oil) | 3 |
