BIEMMEDUE SCUDO
Industrial Basement Heating
MPN: 02AG196
Diesel / LPG / Methane - 235 kW
Thermostat provision
279 x 90 x 177 cm - 20000 m³/h
Warranty 2
years
Shipped on Pallet
Biemmedue SCUDO - Industrial Basement Heating

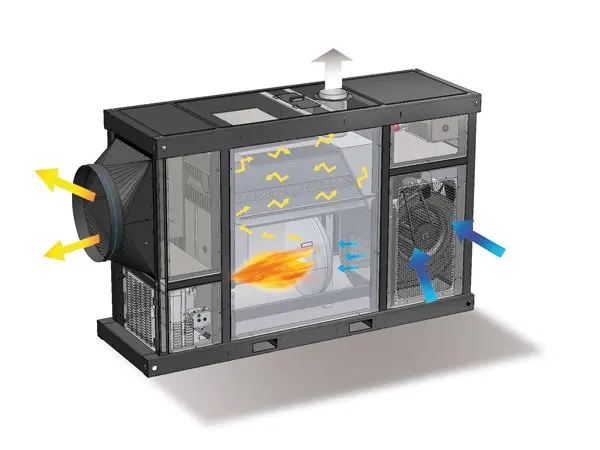

Biemmedue SCUDO floor-standing hot air generator for industrial heating of large environments , equipped with a high-performance centrifugal fan which, combined with the new Biemmedue heat exchanger, guarantees a thermal efficiency of 96%.
Biemmedue Scudo can run on Diesel, LPG or Methane and with the use of various fittings on request it can distribute heat in specific areas through ducts (up to 4 ways)
Characteristics
- special base designed for forklift handling
- Front protective burner cover with lockable door
- rear casing to protect the centrifugal fan with lateral air intake/suction connection
- protective base upper part with lifting/securing hooks
- central lifting hook
- Removable panels for internal washing with cross-shaped reinforcement folds to ensure greater rigidity and strength
- use only metric screws and inserts for fixing, no self-tapping screws
- The new heat exchanger combined with the new higher performance fans allows for a thermal efficiency of 96%;
- Fan protection (IP 55):
- very quiet (noise ≤ 69 db at 2 meters);
- high prevalence and performance which guarantees a high air flow rate and static pressure (500 Pa) for the homogeneous and long-distance diffusion of hot air through ducts or sheaths;
- fan anchored to the supporting structure by means of sturdy side members and fixing brackets
- adjustable fresh air restoration damper;
- Rear control panel (IP 65):
- positioned on the rear part, it prevents contact with dust, water, snow, etc.;
- equipped with a sturdy metal cover which also allows for the storage of tools and documents;
- Front service electrical panel (IP 65):
- positioned in the front part of the machine inside the burner cover drawer: to avoid contact with dust, water, snow for easier maintenance; for easier control and intervention by the operator
Technical Data
| Power Supply | 400V |
| Nominal Power | 235.72 kW - 202,715 Kcal/h - 810,861 BTU/h |
| Power Output | 227.47 kW - 195,620 Kcal/h - 782,480 BTU/h |
| Air Flow | 20000 m³/h |
| Yield | 96% |
| Static Pressure | 500 Pa |
| Temperature jump at 20°C | 47°C |
| Effective working range | 70 m |
| Diesel consumption | 18.65 Kg/h |
| Methane consumption G20 | 22,035 m³/h |
| G20 supply pressure | 20 mbar |
| LPG consumption G31 | 8,637 m³/h / 16,92 Kg/h |
| Feed pressure G31 | 37 mbar |
| Electricity Consumption | 4.97 kW |
| Ø fireplace | 200mm |
| Ø Max. length of ducting 1 WAY | Ø 700 mm - length 50 m |
| Ø Max. length of 2 VIA ducting | Ø 600 mm - length 30 m |
| Ø Max. length of ducting 4 VIA | Ø 400 mm - length 25 m |
| Ø Max length of snorkel sheath | Ø 150 mm - length 6 m |
| Ø Max length of air intake sheath | Ø 750 mm - length 10 m |
| Dimensions | 279 x 90 x 177 cm |
| Weight | 856 Kg |
