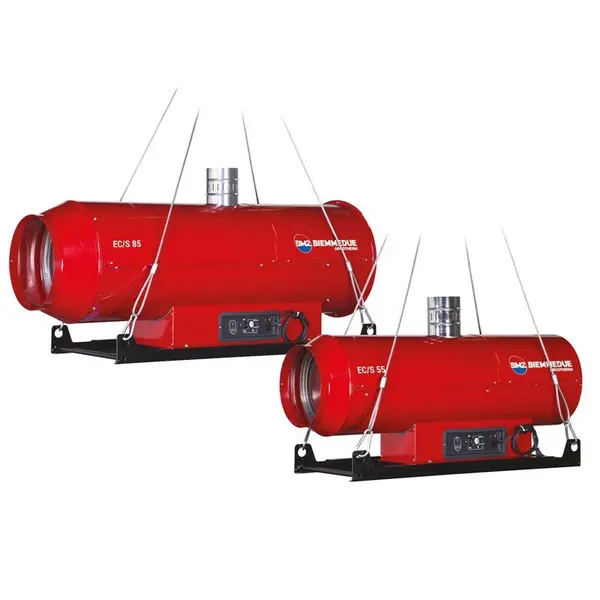

BIEMMEDUE EC/S 85
Agricultural Greenhouse Heating

Biemmedue EC/S 85 Agricultural Greenhouse Heating

Characterised by the presence of a heat exchanger with a flue connection for fume evacuation, they generate a thermal efficiency close to 90%.
They are widely used in warehouses, horticulture and floriculture, livestock farming, construction, for drying, defrosting and heating . When used indoors, the installation of a small chimney connected to the outside ensures the evacuation of fumes.
The Biemmedue EC 85 indirect combustion generators are versatile, reliable, easy to use and safe thanks to the control devices which, in the event of a malfunction, cause the machine to stop immediately.

Functional specifications

MAXIMUM PERFORMANCE
The perfect combustion generated by an innovative burner that allows an optimal air-diesel mixing, combined with the use of a combustion chamber with 4 flue gas passes, allows a technical efficiency close to 90%.
In fact, thanks to the increase in the passage surface in the heat exchanger, the fumes are cooled more and therefore an additional quantity of clean heat is recovered.

IMMEDIATE HEAT
Easy to transport wherever their use is required, they are immediately activated, as is the production of hot air. RELIABILITY AND SAFETY
The project comes from a consolidated experience, the materials are carefully selected and the production is strictly controlled. Maximum safety and minimum maintenance.

SIMPLE TO USE
All models are lightweight and compact, equipped with a handle, trolley and wheels, and have a simple and easy-to-use control panel. The special design of the filler neck makes it extremely easy to top up the fuel.strong>COMBUSTION CHAMBER: The combustion chambers are all made of AISI 430 stainless steel with heat exchangers in aluminized steel for better heat exchange with the cooling air. In the EC 85 models, the use of the innovative combustion chamber with four smoke passes allows for increased heat exchange within the chamber itself, resulting in increased cooling of the combustion fumes, allowing for an efficiency close to 90%.

BURNER: The combustion head is made in a professional design in order to obtain a perfect air-diesel mixing. The result is an almost complete combustion, on all models, with a CO (carbon monoxide) level equal to 0 ppm (parts per million). The air regulation can be performed in a simple and intuitive way thanks to a precise and functional graduated scale.

FAN: To better exploit the dynamic performance of the fan, a conveyor has been inserted that “tubs” the fan. This also provides safety protection in the event of maintenance of the machine.

POWER CABLE SUPPORT: A bracket fixed to the body allows the power cable to be rolled up during transport.

TANK DRAIN PLUG: On all models it is possible to drain the fuel present in the tank via a drain plug.

TANK CAP: The tank cap is a professional type with bayonet lock.

FUEL CIRCUITS: The diesel fuel supply pipes are made of hydrocarbon-resistant rubber, covered with metal reinforcing mesh (EC 85), guaranteeing greater resistance to harsh climates and greater mechanical resistance to cutting and crushing. Furthermore, these pipes allow for safe attachment to the diesel pump, tank and filter by means of high-pressure crimping of the fittings or clamps.

FUEL TANK: The innovative design gives the machine a robust and compact appearance. The tank of the EC 85 models is made of steel which gives it a high robustness and a high load capacity.

Technical specifications

The combustion technology is based on the use of a professional burner composed of a fan, a high-filtering diesel filter, a fuel pump, a nozzle, an ignition transformer and a pair of electrodes.
This allows, even in the worst conditions:

• safe ignition even in dusty and humid environments without the risk of clogging the air filters;
• regular delivery of thermal power, even with very little fuel in the tank;
• pre-ventilation for combustion chamber washing;
• post-ventilation combustion chamber cooling;
• the possibility of interfacing with a thermostat, humidistat or timer.

Accessories

• diesel fuel level indicator
• thermostat
• diesel tank filling filter
• lifting brackets
• External diesel tank connection kit
• pre-heat filter kit
• flexible bi-composite sheath
• one way connection sheath connection
• Two-way fitting sheath connection
