BIEMMEDUE EC / S 55
Heating of Agricultural Greenhouses
Diesel - 58.6 kW
Predisposition for thermostat
134 x 47 x 63 cm - 81 Kg
Heating Agricultural Greenhouses Biemmedue EC / S 55
Description Biemmedue EC / S 55

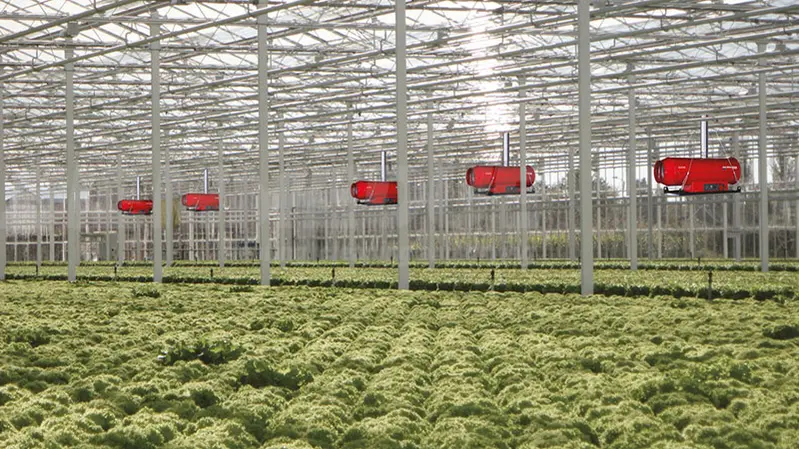

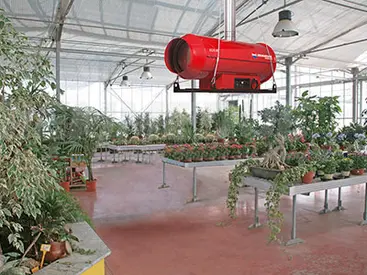

ARCOTHERM EC / S SERIES GENERATORS PROVIDE IMMEDIATELY AVAILABLE HEAT IN A CLEAN AND ECONOMIC WAY, THEY ARE IDEAL FOR HEATING AGRICULTURAL GREENHOUSES.
Characterized by the presence of a heat exchanger with flue connection for the evacuation of fumes, they generate a thermal efficiency close to 90%.

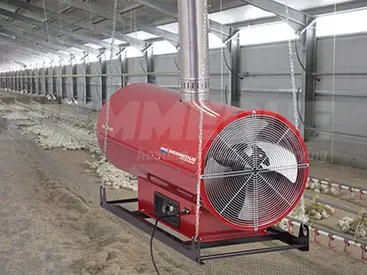

They are widely used in warehouses, horticulture and floriculture, livestock, construction, for drying, drying, thawing and heating. When used indoors, the installation of a small chimney connected to the outside guarantees the evacuation of fumes.
EC indirect combustion generators are versatile, reliable, simple to use and safe thanks to the control devices which, in the event of a malfunction, cause the machine to stop immediately.
MAXIMUM PERFORMANCE
The perfect combustion generated by an innovative burner that allows an optimal air-diesel mixing, combined with the use of a combustion chamber with 4 smoke passes, allow a technical efficiency close to 90%.
In fact, thanks to the increase in the passage surface in the heat exchanger, the fumes are cooled more and therefore an additional quantity of clean heat is recovered.
IMMEDIATE HEAT, EASE OF USE
Easy to transport wherever use is required, commissioning is immediate as is the production of hot air. RELIABILITY AND SAFETY
The project derives from a consolidated experience, the materials are carefully selected and the production is strictly controlled. Maximum safety and minimum maintenance.
SIMPLICITY OF USE
All models are light and compact, equipped with handle, trolley and wheels, have an essential and easy-to-use control panel. Due to the peculiarity of the filler it is extremely simple to top up the fuel. . In the EC 55 models, the use of the innovative combustion chamber with four smoke passes allows an increase in the heat exchange inside it with a consequent increase in the cooling of the combustion fumes such as to allow an efficiency close to 90%.
BURNER: The combustion head is made in a professional design in order to obtain a perfect air-diesel mixing. The result is almost complete combustion on all models, with a level of CO (carbon monoxide) equal to 0 ppm (parts per million). The air adjustment can be performed in a simple and intuitive way thanks to a precise and functional graduated scale.
FAN: For a better exploitation of the dynamic performances of the fan, a conveyor has been inserted that “intubates” the fan. The result is also a safety protection in case of machine maintenance.
ELECTRIC CABLE SUPPORT: A bracket fixed to the body allows the power cable to be rolled up during transport.
TANK DRAIN CAP: On all models it is possible to drain the fuel inside the tank through a drain plug.
TANK CAP: The tank cap is of the professional type with bayonet lock.
FUEL CIRCUITS: The fuel supply pipes are made of rubber resistant to hydrocarbons, covered in metal reinforcing mesh (EC 55), guaranteeing greater resistance to harsh climates and greater mechanical resistance to cutting and crushing. Furthermore, these hoses allow a safe fixing to the diesel pump, to the tank and to the filter by means of high pressure crimping of the fittings or clamps.
FUEL TANK: The innovative design gives the machine a sturdy and compact appearance. The tank of the EC 55 models is made of steel which gives it a high strength and a high load capacity.
TECHNIQUE

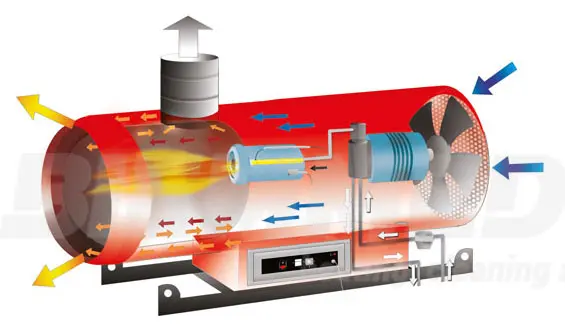

The combustion technology is based on the use of a professional burner consisting of a fan, a diesel filter with high filtering power, a fuel pump, a nozzle, an ignition transformer and a pair of electrodes.
This allows, even in the worst conditions:
- safe ignition even in dusty and humid environments without the risk of clogging the air filters;
- the regular supply of thermal power, even in the presence of very little fuel in the tank;
- pre-ventilation for washing the combustion chamber;
- combustion chamber cooling post-ventilation;
- the possibility of interfacing with thermostat, humidistat or timer.
ACCESSORIES
• diesel level indicator
• thermostat
• fuel tank filling filter
• lifting brackets
• external diesel tank connection kit
• pre-heating filter kit
• two-compound flexible sheath
• one-way connection sheath connection
• two-way fitting for sheath connection
Technical data
Power Supply | Diesel fuel |
Connection | 230V |
Nominal power | 58.6 kW |
Electric power | 850 W |
Yield | 89.5% |
Thermostat | Optional |
Air flow | 2500 m³ / h |
Consumption | 4.64 Kg / h |
Ø Chimney | 150 mm |
Ø Air outlet | 350 ÷ 300 mm |
Dimensions | 134 x 47 x 63 cm |
Weight | 81 Kg |
Technical data
Power Supply | Diesel fuel |
Connection | 230V |
Nominal power | 58.6 kW |
Electric power | 850 W |
Yield | 89.5% |
Thermostat | Optional |
Air flow | 2500 m³ / h |
Consumption | 4.64 Kg / h |
Ø Chimney | 150 mm |
Ø Air outlet | 350 ÷ 300 mm |
Dimensions | 134 x 47 x 63 cm |
Weight | 81 Kg |
