Biemmedue GA 100 C
Warehouse Heating

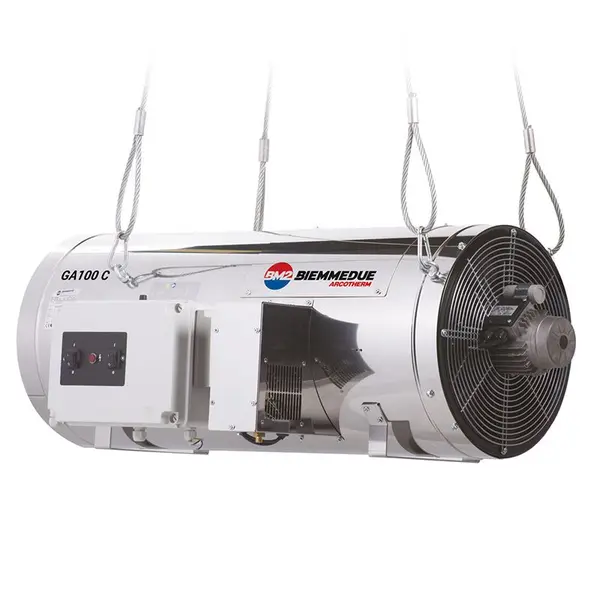

Biemmedue GA 100 C - Hot Air Generator for Warehouse Heating

The Biemmedue GA 100 C is the ideal solution for heating medium-sized rooms with excellent performance , powered by single-phase current, making installation and use simple and immediate .

The quality of the materials used in the construction of the Biemmedue GA 100 C is first-rate, thanks to the choice of top-quality materials, this heater is extremely resistant and designed to last a long time , you can count on constant and reliable performance throughout its useful life.

Heater designed to ensure a comfortable and safe heating experience, its components have been carefully selected to ensure maximum safety during use , minimizing the risks associated with air heating.

TECHNICAL SPECIFICATIONS

The Biemmedue GA 100 C is a direct combustion hot air generator, designed to offer comfort and heat in medium-sized environments. Thanks to its maximum nominal heat output of 100.38 kW and minimum of 47.42 kW , it can easily heat spaces of different sizes quickly and effectively .

A key aspect that makes the Biemmedue GA 100 C exceptional is its high efficiency of 100% , this means that, unlike many other generators, it fully exploits the energy of the gas used to generate hot air, reducing waste and optimising energy efficiency .

As regards gas consumption, the Biemmedue GA 100 C is extremely efficient, the maximum consumption is only 12.68 m³/h (equivalent to 6.683 kg/h), while the minimum consumption is even lower, equal to 6 m³/h (equivalent to 3.156 kg/h), therefore offering lower management costs and greater environmental sustainability .

In addition, the generator is equipped with a gas pressure valve that allows you to operate safely and precisely, the gas pressure can vary between 0.4 and 1.5 bar , ensuring optimal operation in different situations.

The air flow of the Biemmedue GA 100 C is remarkable, reaching 5100 m³/h , it can therefore quickly and evenly distribute hot air in the room, maintaining a pleasant and comfortable temperature.

As for the electrical specifications, the generator has an electrical power of 600 W and operates on a single-phase power supply, making installation easy and straightforward .

In terms of size and weight, the Biemmedue GA 100 C is carefully designed to ensure simple installation and trouble-free use , weighing just 41 kg and measuring 114.6 x 58.9 x 44.1 cm , it is compact and easy to handle.

FUNCTIONAL SPECIFICATIONS

Biemmedue GA 100 C heating for sheds , is designed to provide heat immediately and economically.

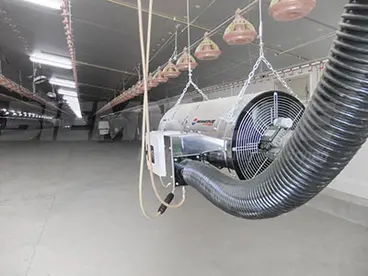

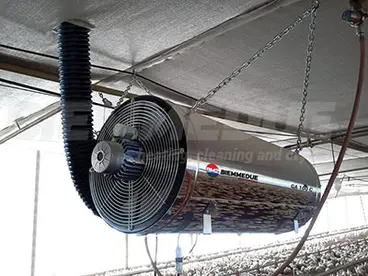

Available in automatic versions, they are widely used in construction sites, greenhouses, livestock farms and in any case in ventilated environments for drying, dehydrating, defrosting and heating .

Biemmedue GA 100 is a direct combustion LPG powered boiler, it is also ideal for carbon fertilization of protected crops.

Versatile and reliable , they are simple to use and safe thanks to the control devices which, in the event of a malfunction, cause the machine to stop.

MAXIMUM PERFORMANCE
Thanks to the perfect combustion of propane gas, combustion residues are minimal and thermal efficiency is maximum: 100%.

IMMEDIATE HEAT, EASY TO USE
Easy to transport wherever they are needed, they are immediately ready for use, as is the production of hot air. Furthermore, automatic models (GP/A) can be equipped with a thermostat, humidistat, clock that allow for heat regulation and management.

BIEMMEDUE RELIABILITY
The project comes from a long and consolidated experience in the sector, the materials are carefully selected and the production is scrupulously controlled.

SAFETY
The models are equipped with electronic equipment for flame control, for gas supply regulation and ignition.

FIELDS OF APPLICATION

• Medium sized environments
• Shipyards
• Greenhouses
• Farms etc..

Characteristics

• Single phase
• Direct combustion
• Nominal thermal power 47.42 - 100.38 kW
• Maximum gas consumption of 12.68 m3/h - 6.683 Kg/h
• Minimum gas consumption of 6 m³/h - 3,156 Kg/h
• Gas pressure 0.4 - 1.5 bar
• 100% Yield
• Air flow 5100 m³/h
• Air temperature at 20°C of 75°C
• Electric power 600 W
• Weight 41 Kg
• Dimensions 114.6 x 58.9 x 44.1 cm
• Built-in LPG burner
• Electronic control equipment
• Electrical panel suitable for humid and dusty environments IP 54
• Infrared flame detector
• Power cable with plug
• Pressure regulator
• Gas pipe with fittings
• STOP-GAS safety valve
• External structure in stainless steel
• Socket for connection to thermostat, humidistat or timer
• Safety thermostat
• Automatic ignition
• Winter-summer switch for use as a fan

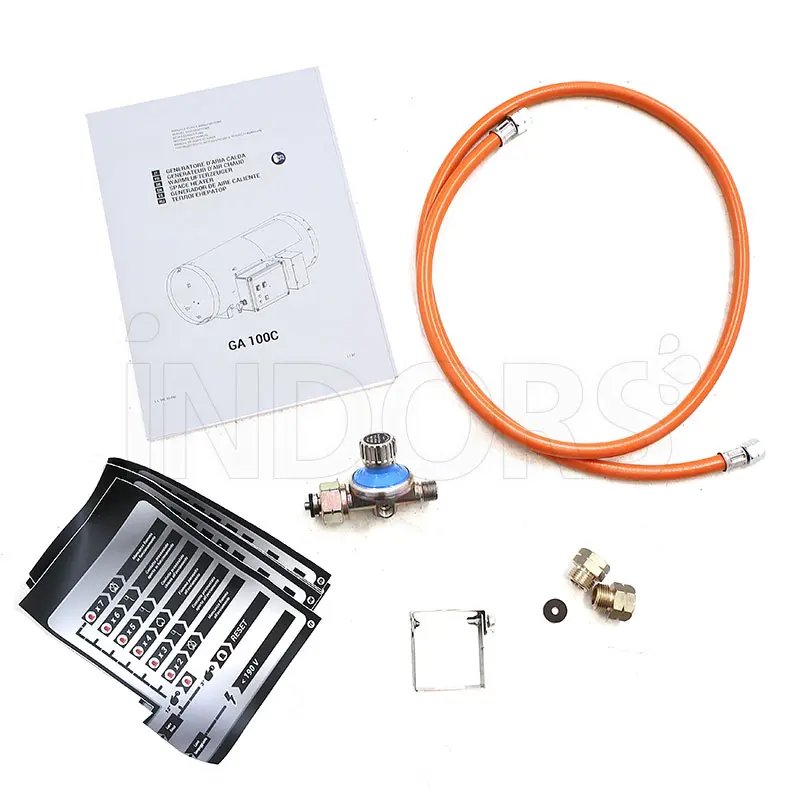

Standard equipment

• gas pipe with fittings (1.5 m)
• pressure reducer with adapters
• Instructions for Use
