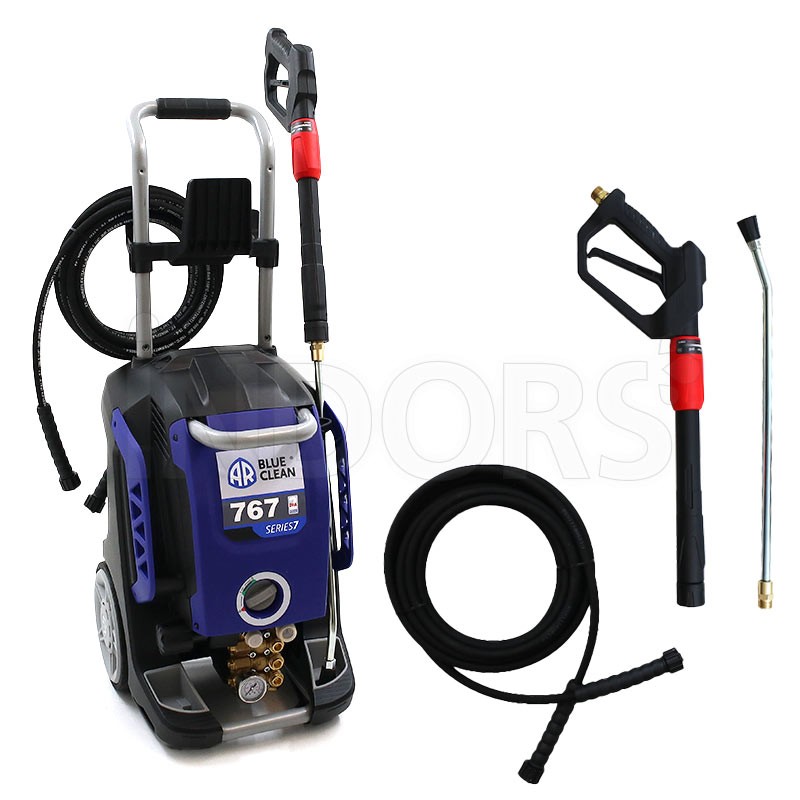

Annovi Reverberi 767 Dual Pro - Professional Cold Water Pressure Washer 150 bar
The Annovi Reverberi 767 Dual Pro is a professional cold water pressure washer designed for artisans , industrial operators , and professionals who require maximum performance and reliability. This machine combines power and precision thanks to its single-phase induction electric motor and 3-piston HRC-O ceramic pump , guaranteeing a maximum pressure of 150 bar and a water flow of up to 600 L/h . The Total Stop System V DPA allows you to stop the machine remotely, reducing consumption and pump wear, making every job safer and more efficient.
Designed for intensive professional use , the Annovi Reverberi 7 Series combines solidity and versatility. The steel load-bearing frame , Ø 220 mm wheels with rubber tread, and ergonomic design allow the machine to be used both vertically and horizontally , making it easy to move even on the most demanding construction sites. Made in Italy quality ensures durability and reliability over time, making the 767 Dual Pro an ideal choice for professionals.
Hose reel NOT INCLUDED.
TECHNICAL SPECIFICATIONS
The Annovi Reverberi 767 Heavy Pro operates on a single-phase 230V power supply and draws 2.6 kW of power , while the induction motor delivers 2.7 HP and 2 kW with a rotation of 1450 RPM , ensuring constant and reliable operation. The HRC-O pump is equipped with 3 ceramic pistons with a connecting rod-crank system and a brass head , designed to resist wear and maintain high performance even under continuous pressure. The machine belongs to protection class I and has an IPX5 protection rating , offering safety and protection during use in professional environments.
From an operational standpoint, the pressure washer delivers a maximum pressure of 150 bar and a nominal pressure of 120 bar , with a flow rate of up to 600 L/h . The timed Total Stop system, integrated pressure gauge and pressure regulation allow the jet to be adapted to different applications, while the two-wheel trolley with handle and lifting points on the frame simplify transport and installation. The Self Priming function allows you to draw water from external sources without a direct connection to the water mains, increasing flexibility and autonomy at work.
- Induction motor
- Brass head
- Connecting rod pump
- Maximum water temperature 60°C
- IPX-S1 water resistance
- Bypass
- Self-priming function
- Total Stop System
FUNCTIONAL SPECIFICATIONS
Total Stop System V DPA
The DPA Total Stop System V allows you to completely stop the machine when the gun is not in use. This system reduces energy consumption , limits pump wear , and increases operator safety , making this pressure washer perfect for prolonged professional use.
HRC-O 3-Piston Ceramic Pump
The HRC-O pump is designed for reliability and durability. The three ceramic pistons , brass head , and connecting rod system maintain stable pressure even during intensive work, offering consistent performance and optimizing efficiency in any professional operation.
Pressure-regulating gun
The gun with pressure regulator and three-position OFF/TSS/bypass selector allows you to adjust the spray pattern to suit your needs. Whether you're spraying delicate surfaces or stubborn dirt, precise control improves efficiency, reduces the risk of damage, and increases productivity.
Load-bearing frame and mobility
The steel frame with lifting points , the two-wheeled Ø 220 mm trolley, and the ergonomic handle ensure quick and easy movement. The removable front panel allows quick access to the motor and pump for maintenance, reducing downtime and simplifying daily management.
Safety and easy maintenance
The 767 Dual Pro features an automatic safety valve with pressure relief , oil level indicator, and oil drain, ensuring maximum operator safety and ease of maintenance. This design reduces the risk of overload and ensures the longevity of the pump and motor.
Self-priming function
A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.
HRC-O pump
- 3-piston ceramic pump with connecting rod and crank system, brass pump head
- Automatic safety valve with pressure relief in the pump head
- Single-phase induction electric motor with thermal protection
- Remote Pressure Washer Total Shut Off System V DPA
- Water suction from tank with self-priming function
Characteristics
- Professional cold water pressure washer
- Single-phase 230V power supply
- Maximum power 2.6 kW
- Maximum pressure 150 bar
- Maximum flow rate 600 L/h
- Engine speed 1450 RPM
- Self-priming function
- Total Stop System V DPA and remote complete stop
- Steel load-bearing frame
- Gun with pressure regulator
- Made in Italy
Standard Equipment
- AR 528 DPS pistol, M22x1.5 M entry, M22x1.5 F exit - code 47768
- Lance inlet M22x1.5 M outlet 1/4 NPT F - code 50690
- Nozzle 1/4 NPT M - code 3082
- 10 m flexible hose, M22x1.5 F inlet, M22x1.5 F outlet - code 3083550
