Hyundai 65245
Full Power Diesel Generator 10 kW
MPN: 65245
EAN: 8028815652452
220V and 400V - 9.5/10 kW
762 cc - 10.67 HP
DIESEL
Warranty 2
years
Shipped on Pallet

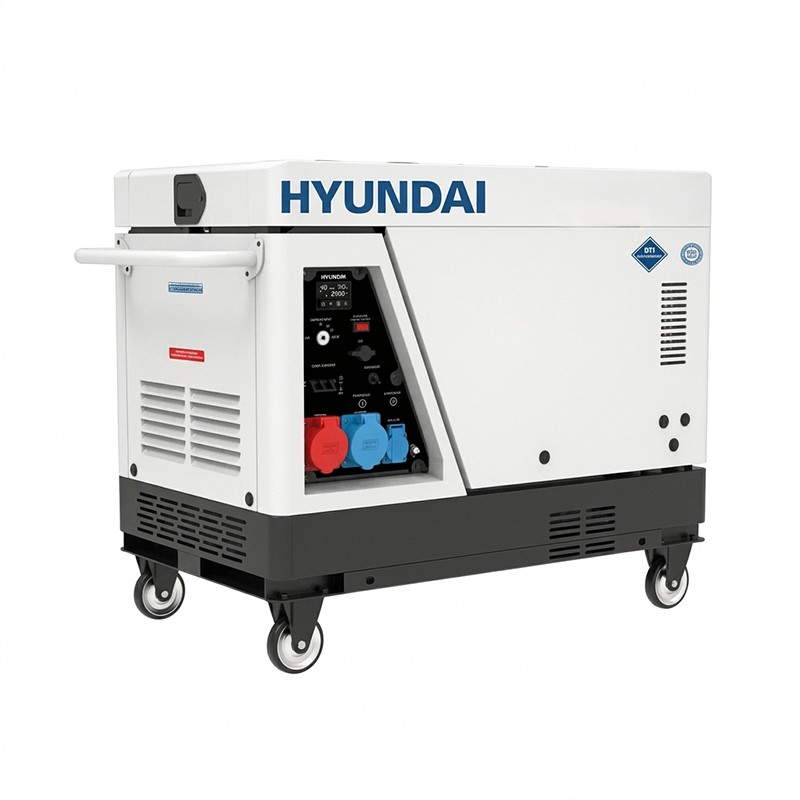

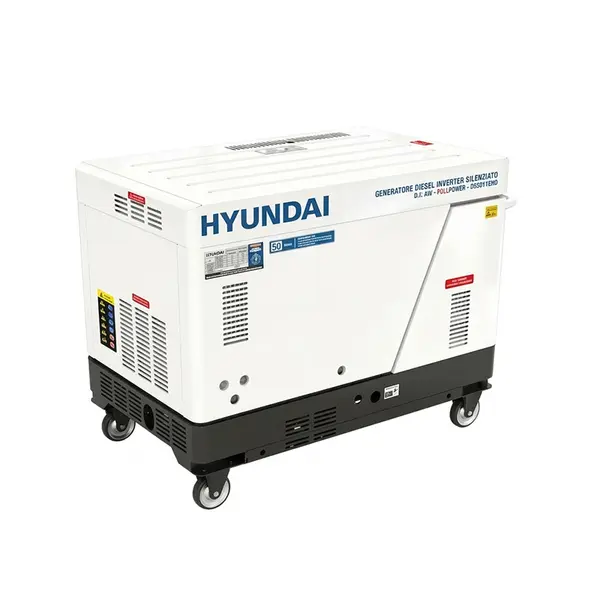

Hyundai 65245 - Full Power Diesel Generator 10 kW
The Hyundai 65245 diesel generator is a silenced generator set with a maximum power of 10 kW, designed to provide autonomous electrical power in various professional contexts. The model is equipped with a 4-stroke single-cylinder diesel engine of 762 cc, with a power of 10.67 HP and electric key start. The generator reaches a rated power of 9.0 kW in single-phase and 9.5 kW in three-phase, while the maximum power is 9.5 kW and 10.0 kW respectively. The voltage is 230/400 V with a frequency of 50 Hz, with 39.2 A current in single-phase and 13 A in three-phase. This Hyundai 65245 diesel generator features 100% copper winding, overload protection, low oil level alarm, and a digital display for voltage, frequency, and hour meter. This diesel generator is wheeled, prepared for ATS kit and accessories, and offers an autonomy of 8.5 hours at 100% load.
Functional Specifications
Hyundai 65245 10 kW Diesel Generator
The Hyundai 65245 generator is a silenced diesel generator set with a rated power of 9.0 kW in single-phase and 9.5 kW in three-phase. The maximum power reaches 9.5 kW in single-phase and 10.0 kW in three-phase. The generator operates at 230/400 V with a frequency of 50 Hz, with a declared current of 39.2 A in single-phase and 13 A in three-phase.
10.67 HP Diesel Engine
The Hyundai 65245 stationary generator is equipped with a 762 cc 4-stroke single-cylinder diesel engine, with a power of 10.67 HP and a speed of 3000 rpm. The start is electric with a key, and the fuel used is diesel. The oil capacity is 1.65 L.
Silenced Generator with Copper Winding
Among the main features of the Hyundai 65245 diesel generator is the 100% copper winding. This Hyundai generator set is also equipped with overload protection and a low oil level alarm. The machine belongs to the line of silenced inverter diesel generators and has a declared noise level of 97 dB(A).
Multi-function Digital Display
The Hyundai 65245 generator integrates a three-function digital display, which allows viewing voltage, frequency, and hour meter. This feature allows monitoring the main operating parameters and tracking the generator set's usage hours.
25 L Tank and Extended Autonomy
The model has a 25 L fuel tank and an oil capacity of 1.65 L. The declared autonomy at 100% load is 8.5 hours. The tank thus allows the generator to be used for extended periods before refueling.
Electrical Sockets and ATS Preparation
The Hyundai 65245 has three AC sockets:
- 1x16 A 250 V
- 1x32 A 250 V
- 1x16 A 415 V, in addition to the DC output.
Hyundai 65245 is also prepared for the ATS 65293 kit - to be purchased separately.
Watch Videos
Operation of Hyundai Silenced Diesel Generators
How to Prevent Home Blackouts Using Dynamic ATS Generators
Scope of Use
- Construction sites and building work
- Agricultural and rural activities
- Workshops and professional activities
- Areas without an electrical grid
- Emergency power supply
- Single-phase and three-phase loads
- Mobile interventions and work
- Systems and ATS
Features
- Hyundai silenced generator
- Full Power
- Rated power 9 kW (230V) and 9.5 kW (400V)
- Max power 9.5 kW(230V) and 10 kW (400V)
- 10.67 HP - 762 cc engine
- Alternator with copper winding
- Wheels for movement
- Autonomy 13 hours at 50% load
- Electric Key Start
- AVR for voltage regulation
- 12V output
- Optional ATS panel
Technical Data
| Code | 65245 |
| Start | Electric |
| Displacement | 762 cc |
| Output Voltage | 230 / 400V 50Hz - Single-phase / Three-phase |
| Max Output Power Three-phase / Single-phase | 9.5 kVA - 9.5 kW cos φ 1 / 9 kVA - 9 kW cos φ 1 |
| Engine Power | 10.67 HP |
| Rated Power Three-phase / Single-phase | 10 kVA - 10 kW cos φ 1 / 9.5 kVA - 9.5 kW cos φ 1 |
| Autonomy at 100% load | 8.5 h |
| Tank Capacity | 25 L |
| Noise Level at 7 m | 97 dB (A) |
| Sockets | 1 x 16 A 250 V - 1 x 32 A 250 V - 1x 16 A 415 V |
| Current | 39.2A/13A |
| Oil Capacity | 1.65 L |
| Windings | 100 % copper |
| Dimensions | 110 x 61 x 84 cm |
| Weight | 167 kg |
