Hyundai 65572
1500 RPM Stage V 55 kVA Generator
MPN: 65572
230/400V - 18.33÷55 kW
3000 cc
DIESEL
Warranty 2
years
Shipped on Pallet

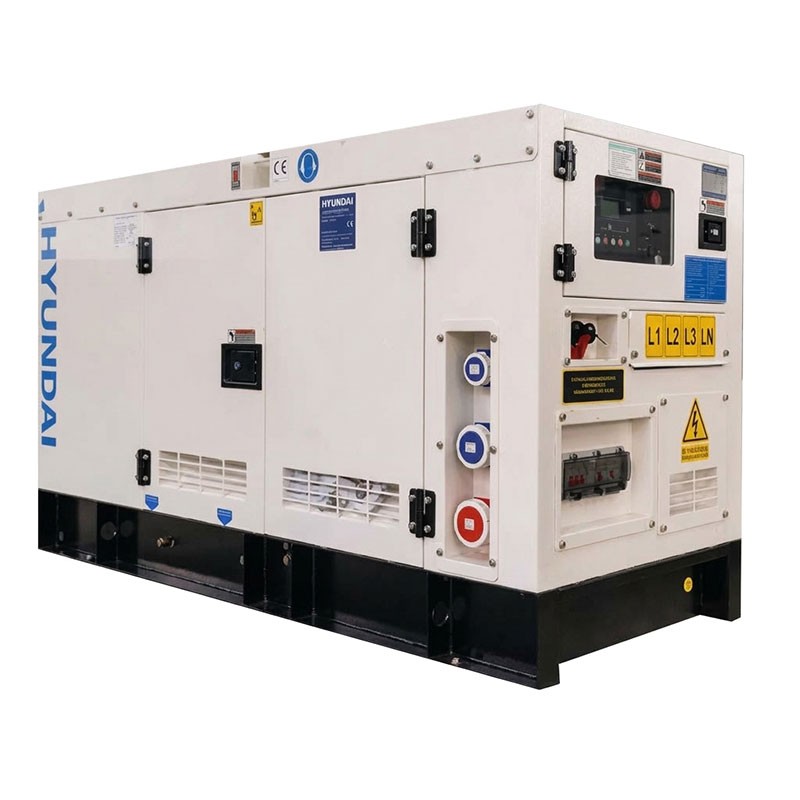

Hyundai 65572 - 1500 RPM Stage V 55 kVA Single-Phase/Three-Phase Silenced Generator

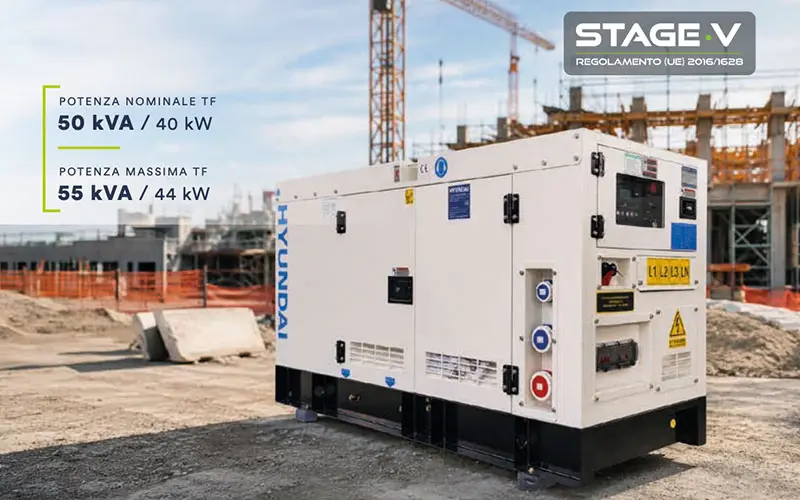

The Hyundai 65572 generator is a single-phase/three-phase silenced diesel generator set designed for construction sites, industrial activities, workshops, farms, and facilities requiring reliable power, also as backup for emergencies. It offers a maximum three-phase power of 55 kVA (44 kW) and a noise level of 70 dB(A) at 7 m.

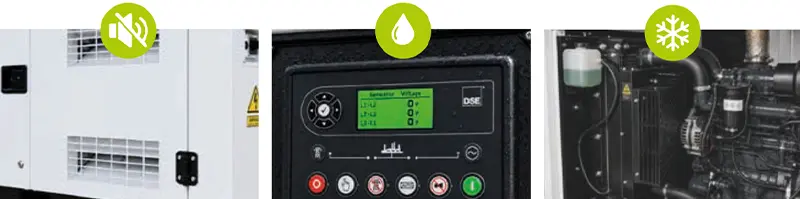

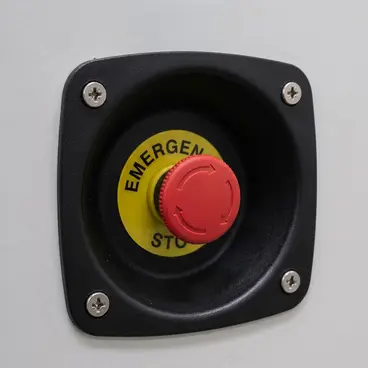

Compliant with Stage V regulations, it is equipped with a waterproof DeepSea DSE6120 control unit, an emergency stop button, and an integrated service socket panel. It is the suitable solution for those seeking a robust generator with a soundproof canopy and liquid cooling.
Functional Specifications
Stage V Generator with Maximum Power of 55 kVA
In three-phase, the rated power is 40 kW (50 kVA) and the maximum power is 44 kW (55 kVA). In single-phase, the rated power is 13.33 kW (16.67 kVA) and the maximum power is 14.67 kW (18.33 kVA).
Direct Injection Turbo Diesel Engine
The 4-cylinder direct injection turbo diesel engine ensures a prompt response to load and operation at 1500 rpm. The liquid cooling maintains stable temperatures even during continuous work, such as on construction sites, in production facilities, and for agricultural generator sets.
ATS Preparation
Prepared for ATS and compatible with the 65545 ATS panel (100 A), which manages the automatic exchange between the grid and the generator set in case of a power outage.

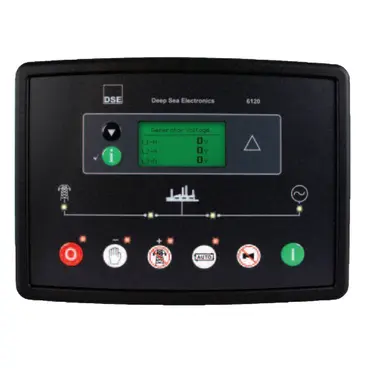

Main Function of DeepSea DSE6120 Control Unit
- Grid/generator management
- Parameter monitoring
- Advanced alarms and protections
- Shutdown in case of anomaly
- Waterproof

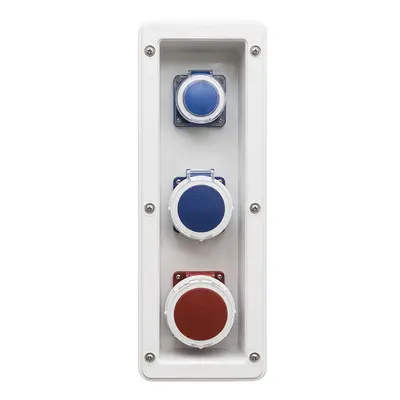

Integrated Service Sockets
- 1 x 16 A Single-Phase Socket
- 1 x 32 A Single-Phase Socket
- 1 x 32 A Three-Phase Socket
Features
- Rated Three-Phase Power 50 kVA (40 kW)
- Rated Single-Phase Power 16.67 kVA (13.33 kW)
- Maximum Three-Phase Power 55 kVA (44 kW)
- Maximum Single-Phase Power 18.33 kVA (14.67 kW)
- Direct injection turbo engine, 4 cylinders, 3000 cc
- Stage V Compliant (EU 2016/1628)
- Noise level 70 dB(A) at 7 m
- Liquid cooling
- Waterproof DeepSea DSE6120 control unit
- Compatible with 100 A ATS panel (code 65545)
- Integrated service sockets: 16 A, 32 A single-phase and 32 A three-phase

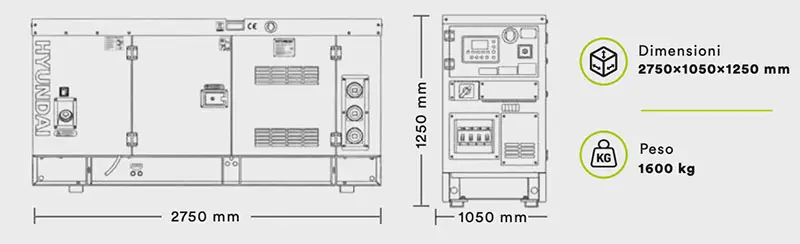

Dimensions
Technical Data
| Power Supply | 230/400V |
| Rated Single-Phase Power | 16.67 kVA - 13.33 kW cos φ 0.8 |
| Max Single-Phase Power | 18.33 kVA - 14.67 kW cos φ 0.8 |
| Rated Three-Phase Power | 50 kVA - 40 kW cos φ 0.8 |
| Max Three-Phase Power | 55 kVA - 44 kW cos φ 0.8 |
| Engine Speed | 1500 RPM |
| Amperage | - |
| Protection | IP21 |
| Engine Model | DEF30CBA5 |
| Displacement | 3000 cc |
| Injection | Direct |
| Cylinders | 4 |
| Consumption 100% - 75% - 50% | 9.76 / 7.30 / 4.88 L/h |
| Fuel | Diesel |
| Tank Capacity | 100 L |
| Lubrication | 9.5 L |
| Cooling | Coolant Liquid |
| Cooling System | 13 L |
| Alternator | DPC224D |
| AVR Preparation | YES |
| Control Unit | Deepsea DSE6120 |
| Dimensions | 275 x 105 x 125 cm |
| Weight | 1600 kg |
