Hyundai 65568
Silenced Generator 30 kVA 1500 RPM
MPN: 65568
230/400V - 10÷30 kW
2000 cc
DIESEL
Warranty 2
years
Shipped on Pallet

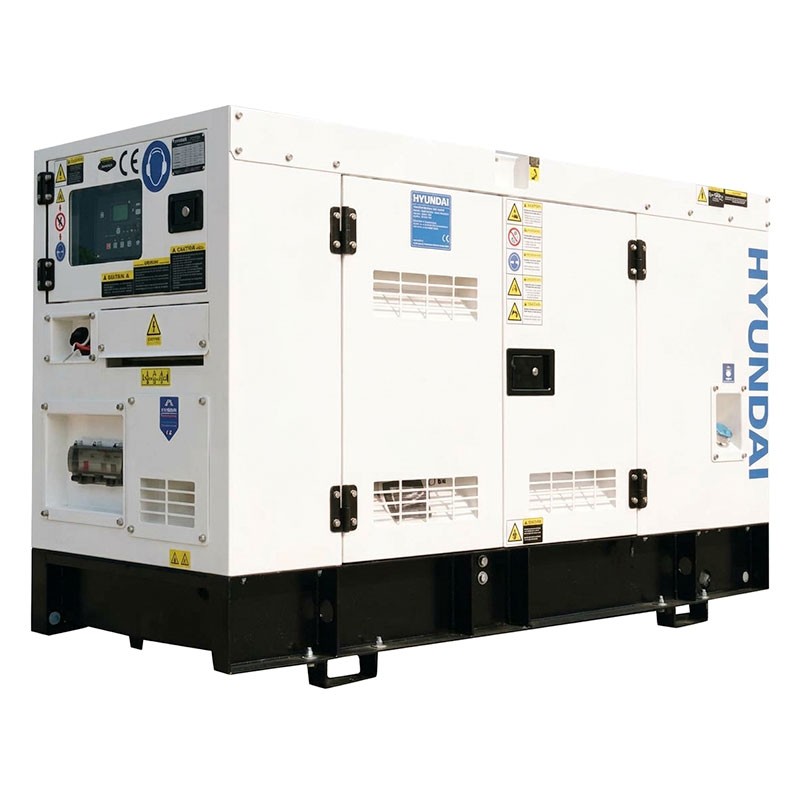

Hyundai 65568 - Silenced Generator 30 kVA 1500 RPM Single-phase / Three-phase
The Hyundai 65568 generator is a silenced diesel power generator set designed for construction sites, farms, workshops, events, and as an emergency generator for commercial and industrial activities. The 4-cylinder turbo diesel engine and the soundproofed enclosure ensure continuous power with a sound pressure level of only 70 dB(A) at 7 m. This Generator has a maximum three-phase power of 30 kVA (24 kW) while the maximum single-phase power is 10 kVA (8 kW).
Stage V compliant, it offers integrated service outlets and advanced control via the DeepSea DSE6120 control unit. It is a complete solution as a three-phase 400 V and single-phase 230 V generator, compatible with an ATS panel.
Functional Specifications

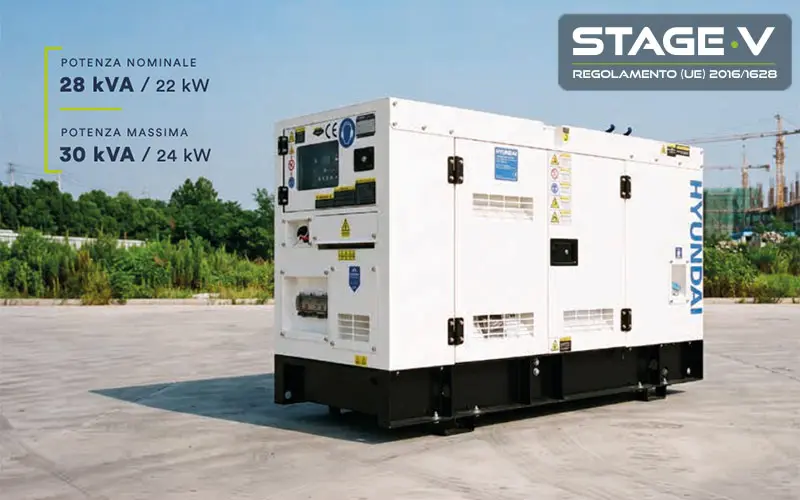

Stage V Generator Maximum Power 30 kVA / 24 kW
The Hyundai 65568 generator delivers a rated three-phase power of 22 kW (28 kVA) and a maximum power of 24 kW (30 kVA), at 400V 50 Hz and cos φ 0.8. In single-phase, the rated power is 7.33 kW (9.33 kVA), while the maximum power is 8 kW (10 kVA), with a voltage of 230V 50 Hz. Depending on the application, the three-phase generator set powers industrial and agricultural machinery, while the single-phase output is suitable for lighting, tools, and small loads.
Stage V Turbo Diesel Engine 1500 RPM
The direct injection DEF20CRA4 turbo engine, compliant with Stage V, combines high performance with low emissions. The liquid cooling system maintains a stable temperature even under continuous load, for greater reliability in professional use. This engine has 4 cylinders with a displacement of 2000 cc.
ATS and Deep Sea Control Unit Preparation
Prepared for ATS and compatible with the 65545 ATS panel (100 A), which manages the automatic transfer between the grid and the generator set in case of a blackout.

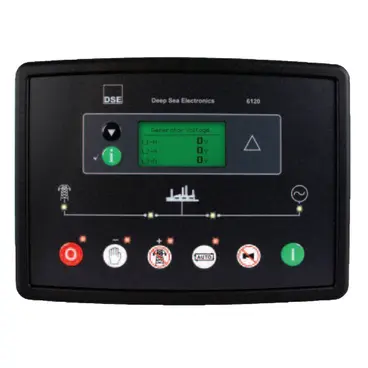

Main Functions of the Deep Sea DSE6120 Control Unit
- Grid/generator management
- Parameter monitoring
- Advanced alarms and protections

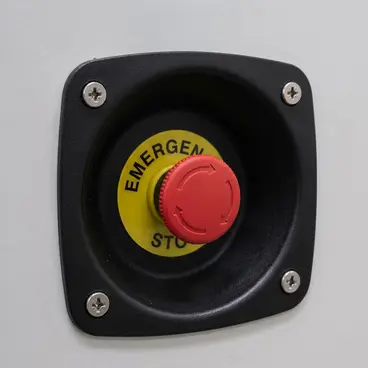

- Shutdown in case of anomaly
- Waterproof

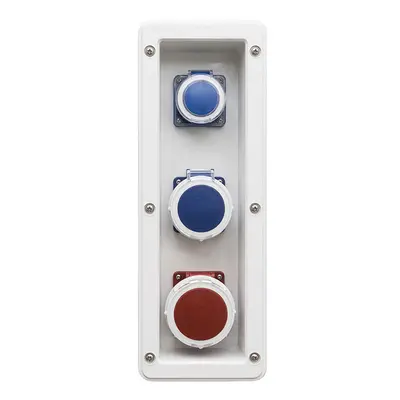

Integrated Service Outlets
- 1 x 16 A Single-phase Outlet
- 1 x 32 A Single-phase Outlet
- 1 x 32 A Three-phase Outlet
Features
- Rated Three-phase Power 22 kW / 28 kVA
- Maximum Three-phase Power 24 kW / 30 kVA
- Rated Single-phase Power 7.33 kW / 9.33 kVA
- Maximum Single-phase Power 8 kW / 10 kVA
- Single-phase/three-phase generator 400/230V 50 Hz
- DEF20CRA4 turbo diesel engine, 4 cylinders, 2000 cc
- DPC184F alternator with AVR SX460
- Stage V compliant

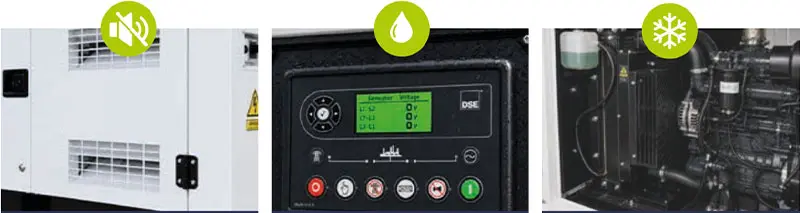

- Soundproofed enclosure 70 dB(A) at 7 m
- DeepSea DSE6120 waterproof control unit
- Integrated service outlets 1×16 A, 1×32 A single-phase and 1×32 A three-phase
- 60 L tank
- Liquid cooling
- Compatible with ATS panel 65545 (100 A)

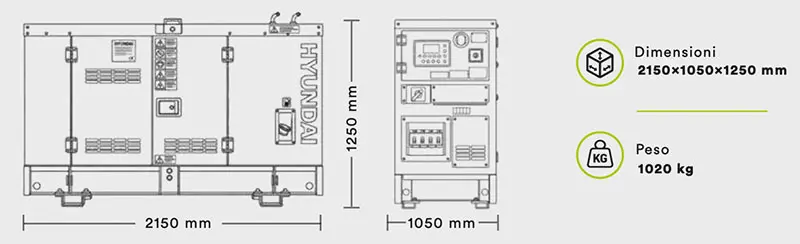

Dimensions
Technical Data
| Power Supply | 230/400V |
| Rated Single-phase Power | 9.33 kVA - 7.33 kW cos φ 0.8 |
| Max Single-phase Power | 10 kVA - 8 kW cos φ 0.8 |
| Rated Three-phase Power | 28 kVA - 22 kW cos φ 0.8 |
| Max Three-phase Power | 30 kVA - 24 kW cos φ 0.8 |
| Engine Speed | 1500 RPM |
| Amperage | - |
| Protection | IP21 |
| Engine Model | DEF20CRA4 |
| Displacement | 2000 cc |
| Injection | Direct |
| Cylinders | 4 |
| Consumption 100% - 75% - 50% | 5.4 / 4.05 / 2.7 L/h |
| Fuel | Diesel |
| Tank Capacity | 60 L |
| Lubrication | 7.5 L |
| Cooling | Liquid Coolant |
| Cooling System | 11 L |
| Alternator | DPC184F |
| AVR Preparation | YES |
| Control Unit | DeepSea DSE6120 |
| Dimensions | 215 x 105 x 125 cm |
| Weight | 1050 kg |
