Idromatic Kon 140.10
Hot pressure washer

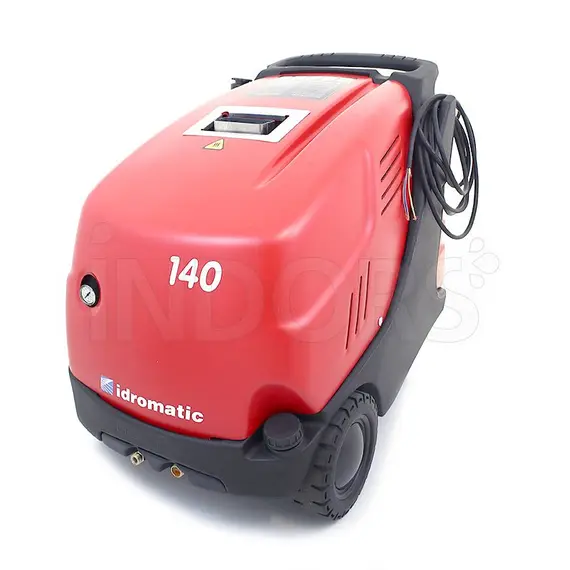

Idromatic Kon 140.10 - Professional hot pressure washer 140 bar

Idromatic pressure washer Kon 140.10 is a professional hot pressure washer with 3 ceramic piston pump with connecting rod/crank system and brass head , Kon 140.10 is an Idromatic pressure washer with continuous duty electric motor , 2 or 4 poles .

With elastic motor-pump coupling , Idromatic Kon 140.10 has a timed Total Stop with 24 V low voltage electrical system , with IP 55 protection with zip for easy access to internal components.

Idromatic professional pressure washer, Kon 140.10 has a robust structure with a reinforced polyethylene frame , sound-absorbing , self-extinguishing , with the function of diesel tank and detergent tank.

Kon 140.10 has 2 large diameter fixed wheels ( 260 mm ), 2 100 mm diameter swivel wheels with built-in brake.

This pressure washer has a highly sensitive regulation thermostat with direct immersion bulb and constant temperature control.

Functional specifications

Single-phase 140 bar pressure washer

Professional pressure washer with 140 bar pressure, max output 10 L/min . Idromatic Kon 140.10 has an absorbed power of 2.9 kW with a 3 HP 1400 rpm motor. The outlet water temperature is 140°C , with a 30 L diesel tank and a 6 L detergent tank.

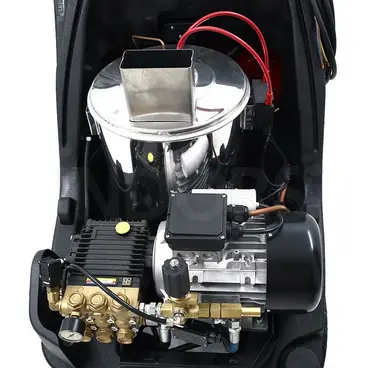

Pressure washer with stainless steel boiler

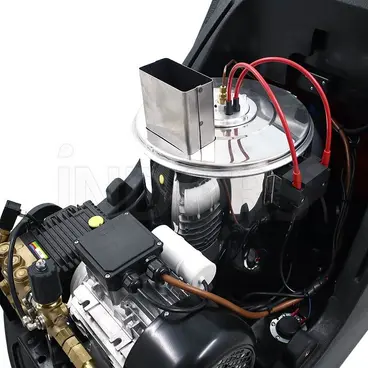

Pressure washer with high efficiency stainless steel boiler with separate motor, boiler control , lack of water and micro-leak control .

Pressure washer with safety valve

Separate regulation valve with resetting of the lance closing pump, safety valve . Also present is IP 55 protection with an easy zip for internal components.

Fields of application

• Professional use
• Heavy use

Watch the video

Characteristics

• Hot water pressure washer
• 140 bar pressure washer

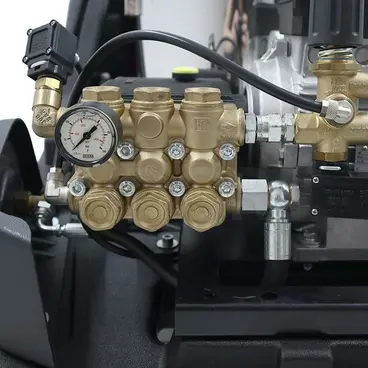

• 3 ceramic piston pump
• IP 55 protection with ABS electrical panel
• Electrical system
• Total stop timed 20°
• Stainless steel vertical boiler
• Reinforced polyethylene frame
• Regulation valve and safety valve

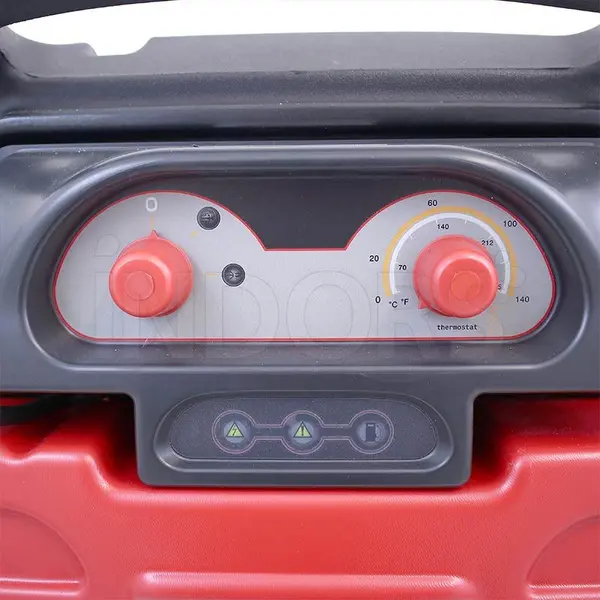

• High sensitivity adjustment thermostat
• Direct feed with low pressure detergent suction

Standard equipment

• 5/16 R1 MT 10 tube
• PA RL26 pistol + handle
• Curved extension 60 cm + TR9 (low pressure detergent)
• MVG06 3/8"F swivel joint
• Stainless steel lance nozzle 1/4" 15035
• Joint MVG08 1/4"F fixed part

Accessories on request

• 20 m hose reel kit (No Hose)
• Water tray (to be requested with the machine)
• Magnetic anti-limescale device 3/4
• 3/8 magnetic anti-limescale device
• Steam kit
• Flame control kit
• Professional sandblasting kit 11-15 L
