Lavor Terek 1813
Professional Hot Water Pressure Washer 200 bar

Lavor Terek 1813 - Professional Hot Water Pressure Washer 200 bar

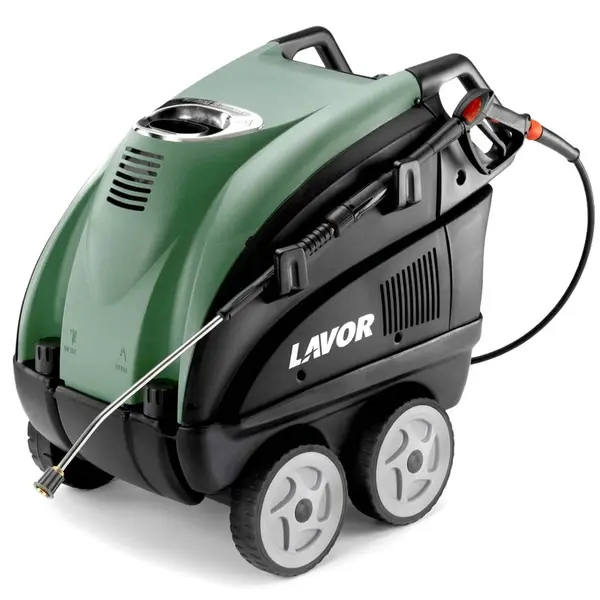

The Lavor Terek 1813 is a professional hot water pressure washer designed for industrial and service applications requiring consistent, high-intensity performance. Equipped with an MPBX2 axial pump with a brass head and three ceramic steel pistons , the machine delivers an operating pressure of 180 bar with a flow rate of 780 L/h , making it suitable for industrial degreasing, surface sanitization, system maintenance, and heavy-duty vehicle cleaning.

The vertical boiler heating system with high thermal efficiency steel coil guarantees a maximum water temperature of 110°C , while the 24V low voltage delayed Total Stop system represents one of the distinctive elements of the range: it automatically stops the pump when not in use, reducing mechanical wear and energy consumption.

TECHNICAL SPECIFICATIONS

The 400V three-phase power supply with a 6300W induction motor ensures stable and continuous operation even during the prolonged work cycles typical of industrial environments. The MPBX2 axial pump operates at 2800 RPM with a maximum operating pressure of 200 bar , with a built-in by-pass valve for hydraulic protection of the circuit.

The thermal system is powered by an 18-litre diesel tank with a two-way diesel pump and integrated reserve warning light . The glycerine-filled pressure gauge , temperature regulator and control panel with analogue controls complete the monitoring instrumentation, ensuring immediate reading of the operating parameters.

FUNCTIONAL SPECIFICATIONS

Total Stop 24V for low voltage pump protection

The 24V low-voltage, delayed Total Stop system automatically stops the axial pump when the lance trigger is released for a specified period. Low-voltage management reduces electrical hazards for the operator and reduces mechanical wear on seals and pistons, significantly extending the machine's service life in intensive use.

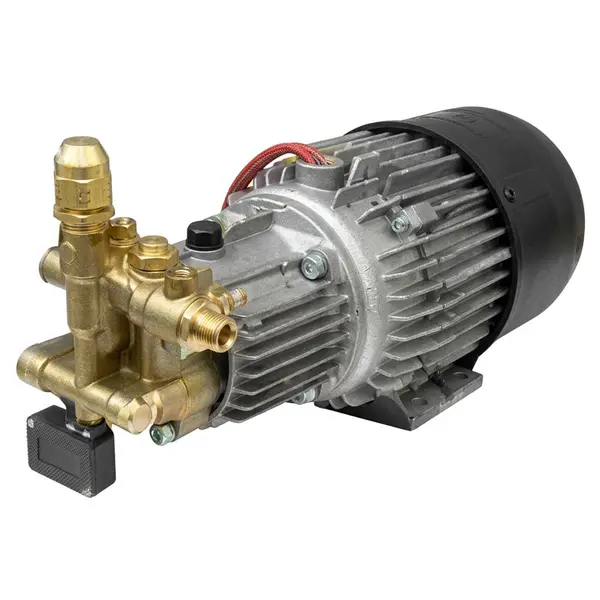

Axial pump with brass head and ceramic pistons

The MPBX2 axial pump with brass head houses three ceramic-coated steel pistons with stainless steel suction and delivery valves . The ceramic guarantees extremely high resistance to abrasion and chemical corrosion, while the brass head ensures thermal and mechanical seal even under continuous high-pressure operating conditions.

Vertical boiler with high thermal efficiency coil

The vertical boiler with steel coil ensures rapid and efficient heating of the fluid up to 110°C , ideal for professional degreasing operations on metal surfaces, machinery, and vehicles. The integrated temperature regulator allows you to adjust the heat intensity based on the surface being treated, while the safety valve monitors the internal pressure of the heating circuit.

Detergent suction with integrated 3 L tank

The detergent suction system with an integrated 3L tank allows for direct dosing of the chemical into the workflow without external aids. This solution is particularly effective in professional cleaning applications with foam or combined chemical degreasing, reducing setup and handling times on the job site.

High-strength steel frame with accessory holder

The high-strength steel load-bearing structure ensures rigidity and durability in the most demanding industrial environments. The integrated accessory holder allows for neat and accessible storage of the lance, hose, and nozzles, improving operational ergonomics. The overall design of the frame, head, valves, and boiler reflects the Made in Italy philosophy of quality manufacturing aimed at product longevity.

Characteristics

• Professional hot water pressure washer
• 400V three-phase power supply
• 2-pole induction motor
• Power 6300 W
• Nominal pressure 180 bar
• Max pressure 200 bar
• Max flow rate 780 L/h
• Outlet water temperature 110°C
• MPBX2 pump with brass head and 3 ceramic steel pistons
• Revolutions 2800 RPM
• Delayed Total Stop 24V
• Vertical boiler
• 3 L detergent tank
• 18 L Diesel Tank
• Glycerin-filled pressure gauge
• Made in Italy

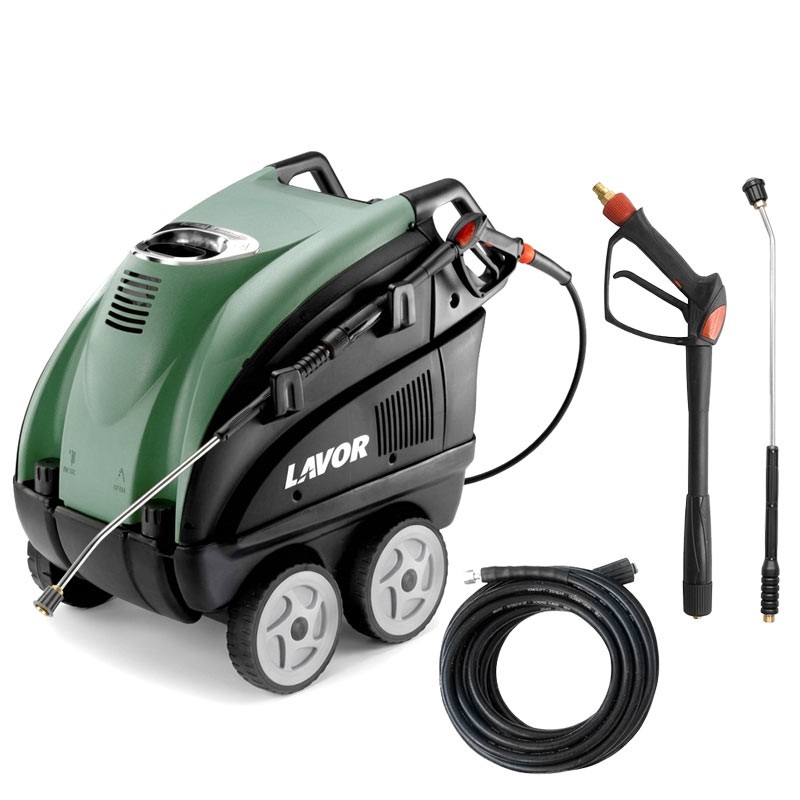

Standard Equipment

• M22 3/8" pistol with swivel attachment - code 00080-01695
• Adjustable lance - code 00080-01715
• Nozzle 040 - code 00080-03187
• R2 high pressure hose 10 m - cod. 00080-02347
