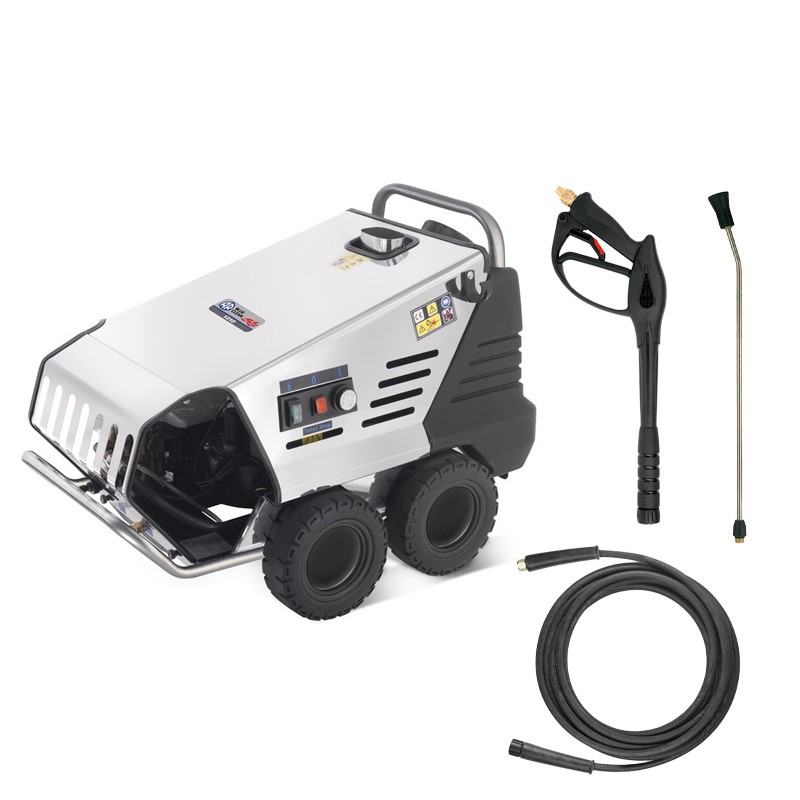

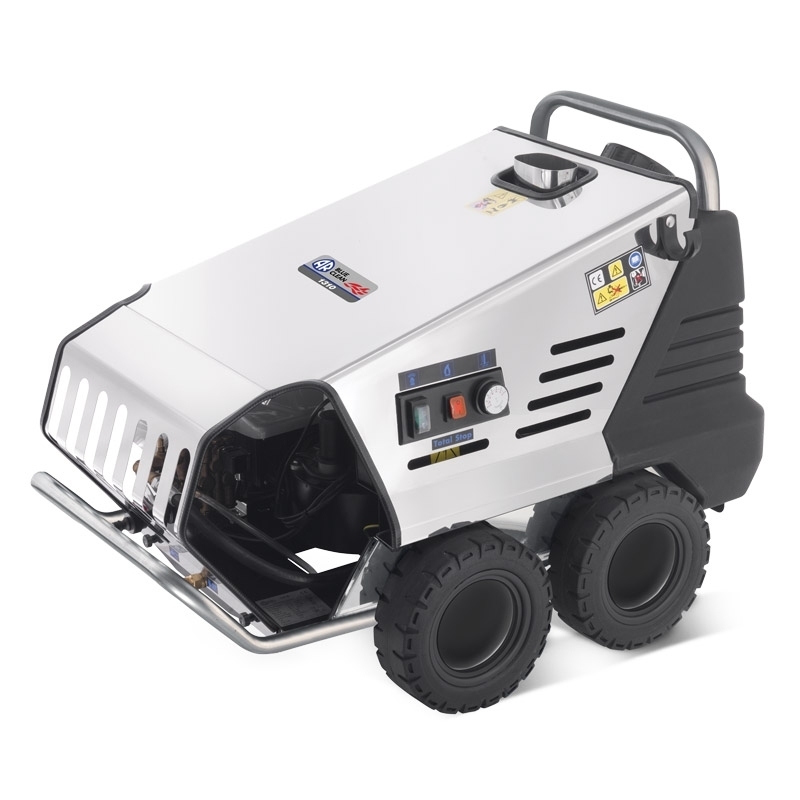

Annovi Reverberi AR 1325 - Compact Hot Water Pressure Washer
Annovi Reverberi AR 1325 is a compact hot pressure washer, with a robust structure with AISI 430 stainless steel hood . Pressure washer with 3-piston pump in integral ceramic with connecting rod-crank system , automatic by-pass valve with zero pressure in the pump head.
Maximum pressure 180 bar , with flow rate 900 L/h , power 5 kW and 2800 rpm . The dimensions of this Annovi hot pressure washer are 115 x 72 x 75 cm , for a weight of 110 kg .
Technical specifications
- Hot water
- Induction motor
- Connecting rod pump
- IPX5-S1 water resistance
- Brass head
- Total Stop System
Functional specifications
Motor with magnetothermal protection
The AR 1325 three-phase pressure washer is equipped with a thermally protected motor . The powerful three-phase motor ensures this AR 1325 performs professionally, capable of withstanding prolonged use. It comes with a 5-meter long power cord.
Total stop and arrests
The AR 1325 features a complete system of safety and protection features to make it a safe and reliable high pressure washer. It is equipped with a timed Total Stop , a micro-leak stop , a 1-hour Total Stop , and a lack of water stop . There is an error signal via an intermittent light, a 150°C thermostat for temperature control, and pressure regulation , with a low voltage control panel. There is also an indicator light for the presence of power , diesel fuel, and TST , and 3 pressure switches .
Stainless steel boiler
Stainless steel boiler (AISI 430) , with temperature rise Δt up to 60. 24L diesel tank. The pressure washer can reach an outlet water temperature of 100 °C .

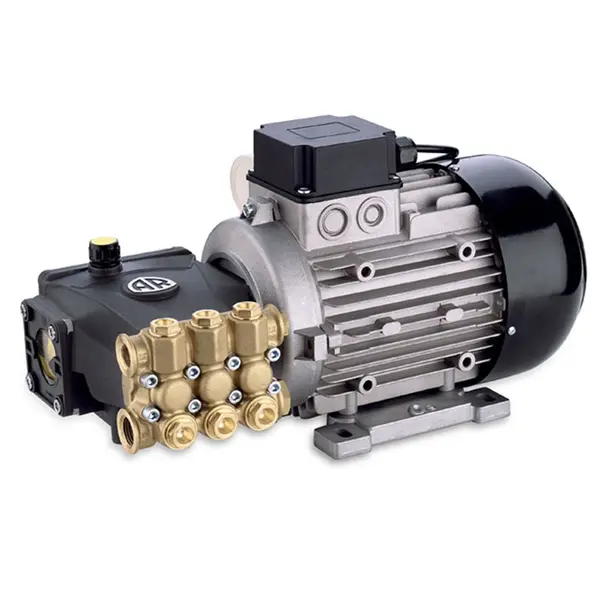

HRC pump
This HRC pump mounted on AR 1325 is a 3 ceramic piston pump with connecting rod and crank system with brass pump head.
Equipped with an automatic safety valve with zero pressure relief in the pump head. With a remote automatic pressure washer shutdown system.
Self-priming function
A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.
Characteristics
- Pressure washer with robust AISI 430 stainless steel structure
- 3-piston pump in full ceramic
- Self-priming function
- Connecting rod and crank system
- Automatic bypass valve
- Total Stop
- Arrest system
- Error warning light
- Outlet water temperature 100°C
- Stainless steel control panel
- 3 pressure switches
- 24 L Diesel Tank
