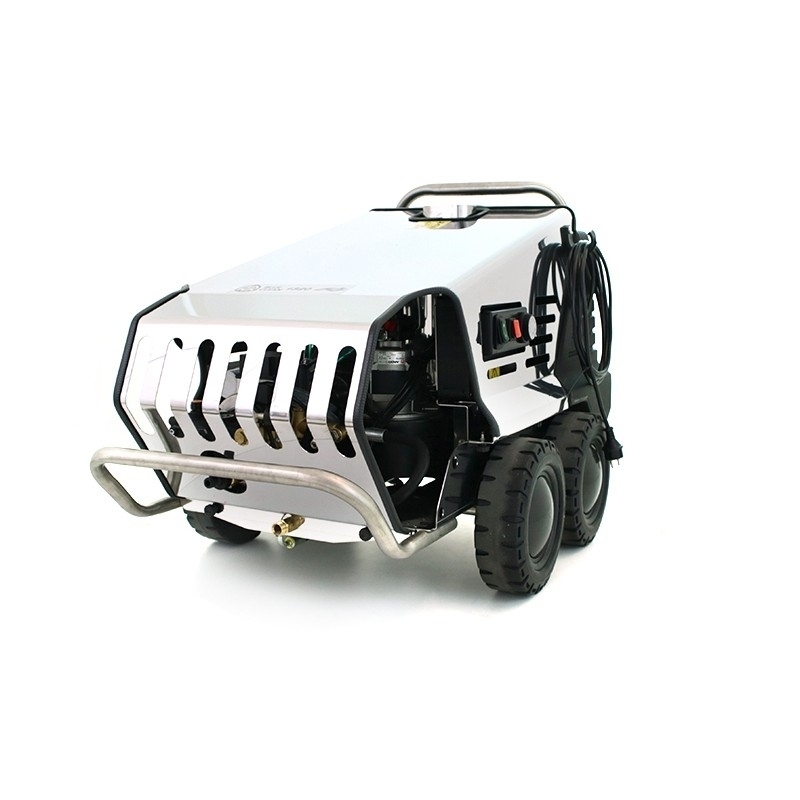

Annovi Reverberi AR 1310 - Hot Water High Pressure Washer
The Annovi Reverberi AR 1310 is a high-pressure washer that operates with hot water. It has a robust , stylish structure and a stainless steel hood . The materials used are resistant and long-lasting .
Technical specifications
The AR 1310 pressure washer has a stainless steel structure ( AISI 430 ), works at high pressure , reaching 150 bar . The pressure washer is equipped with a three-piston pump in integral ceramic with a connecting rod-crank system, an automatic by-pass valve and a single-phase electric motor.
The diesel tank has a capacity of 24 L , the electric cable is 5 m . The pressure washer has a maximum flow rate of 500 L/h and reaches a temperature of 150 °C , for a power of 2.5 kW . The engine rotates at 2800 rpm .
- Hot water
- Induction motor
- Connecting rod pump
- IPX5-S1 water resistance
- Brass head
- Total Stop System Timed
Functional specifications
AR 1310 features important magnetothermal motor protection , a timed total stop, a stop for micro-leaks , but also for lack of water and for motor overheating .
Other features include error signaling via an intermittent light , pressure regulation, a low-voltage control panel, built-in , adjustable detergent suction, and a power , diesel , and TST indicator light. The control panel and boiler are made of stainless steel (AISI 430) .
Self-priming function
A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.
Characteristics
- Hot water 150°C
- High pressure 150 bar
- Resistant
- Magnetothermal motor protection
- Timed total stop
- Stop for micro-leaks
- Arrest due to lack of water
- Engine overheating shutdown

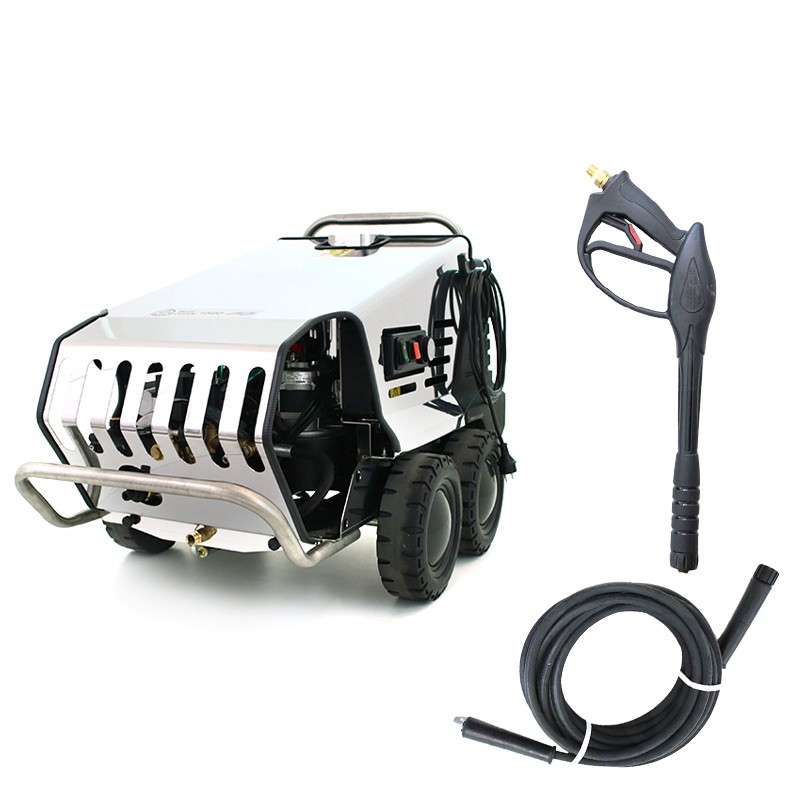

Standard equipment
- Lance with high/low pressure head
- Pistol
- Nozzle
- 8 m reinforced AP pipe
