Annovi Reverberi AR 6950
Pressure washer 150 bar

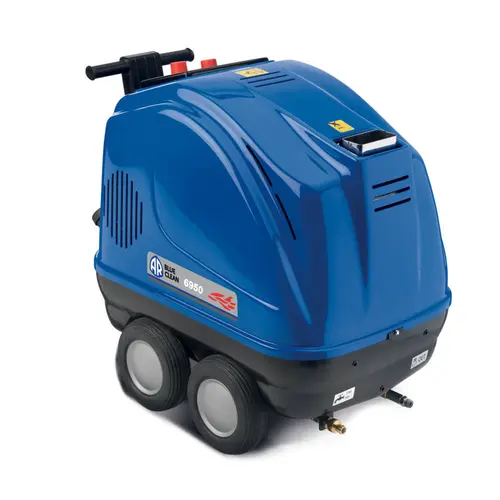

Annovi Reverberi AR 6950 - Three-phase pressure washer 150 bar

Annovi Reverberi AR 6950 is a professional pressure washer , equipped with a three-phase electric motor with thermal protection . 150 bar pressure washer, Annovi Reverberi AR 6950 is equipped with a brass head and 3 ceramic piston pump , with connecting rod-crank system .

This Annovi Reverberi pressure washer is robust and compact , equipped with 4 rubber wheels for movement with handle and practical supports for storing accessories. This AR 6950 pressure washer has a rubber tread.

Functional specifications

Pump, boiler and safety devices

This Annovi 150 bar pressure washer is equipped with a 3 ceramic piston pump, with connecting rod-crank system . Annovi Reverberi AR 6950 has an automatic by-pass valve with zero pressure in the pump head . In case of lack of water, the safety pressure switch switches off the boiler. The boiler is vertical in stainless steel , with cooling system .

The spiral burner is driven by an independent electric motor , double coil and refractory concrete bottom . Annovi Reverberi AR 6950 is equipped with a delay card for boiler shutdown .

Tanks and filters.

Annovi Reverberi AR 6950 is equipped with a pressure regulator . This machine has 2 tanks :

• 14 L diesel with drain plug
• Built-in 6 L detergent

There is an inspectable water filter and a diesel suction filter .

Technical specifications

With a maximum pressure of 150 bar , this 400 V Annovi Reverberi three-phase pressure washer has a power of 5 kW . The revolutions are 1450 rpm. The maximum temperature is 150 ° C.

With a weight of 94 kg and dimensions of 98 x 59 x 92 cm , this professional pressure washer proves to be a reliable , robust and high-performance machine .

Characteristics

• Compact structure
• Transport wheels
• Supports for lance and tube
• Hot water operation
• Ceramic piston pump with brass head
• Automatic by-pass valve
• Safety pressure switch
• Vertical stainless steel boiler
• Boiler shutdown delay card
• Pressure regulation
• 14 L diesel tank with drain plug
• Built-in 6 L detergent tank
• Thermostat
• Detergent suction
• Water filter and diesel filter
• Electric cable 5 m
