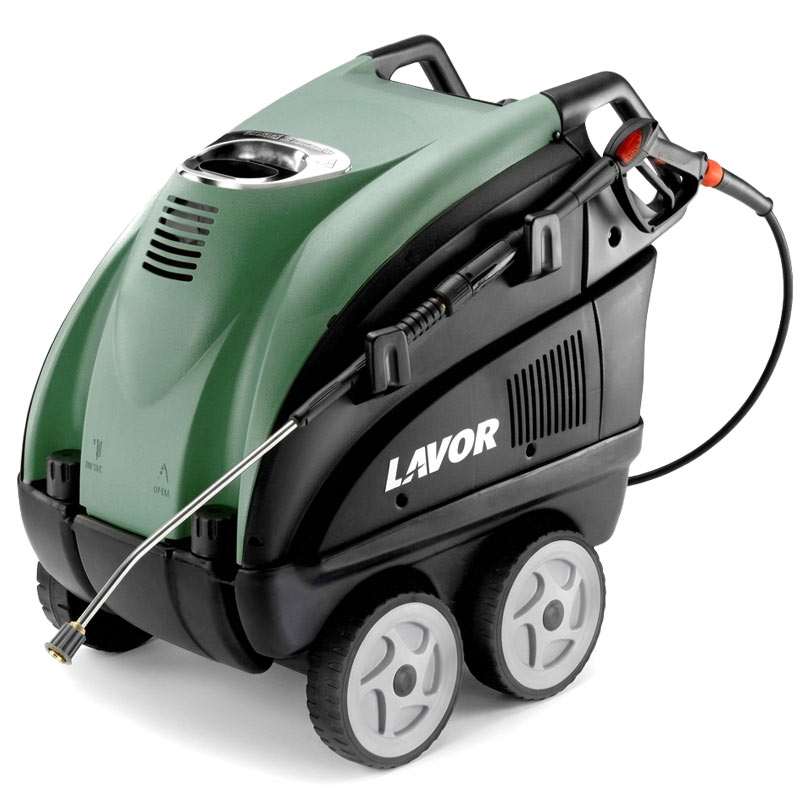

Lavor Terek 1211 - Professional Hot Water Pressure Washer 150 bar
The Lavor Terek 1211 is a professional hot water pressure washer designed for industrial and intensive-duty applications. Thanks to the MPBX2 axial pump with three ceramic-coated steel pistons and brass head and the high-efficiency vertical coil boiler , it guarantees stable performance up to a maximum temperature of 110°C and 120 bar of operating pressure .
The 24V low-voltage delayed Total Stop system protects the pump during inactivity cycles, making this machine stand out in continuous operation. Its single-phase 230V power supply and 660 L/h flow rate make it a benchmark solution for high-temperature industrial washing in demanding professional environments.
TECHNICAL SPECIFICATIONS
The single-phase 230V power supply with 3200W of installed power allows for use on standard electrical systems without the need for three-phase conversion, simplifying installation on construction sites. The induction motor operates at 2800 RPM , ensuring mechanical reliability and lower maintenance costs compared to brushed motors.
The MPBX2 axial pump delivers an operating pressure of 120 bar with a peak pressure of 150 bar and a nominal flow rate of 660 L/h . Hot water heating reaches a maximum temperature of 110 °C thanks to the coil boiler, with an 18 L diesel tank for extended operating autonomy.
FUNCTIONAL SPECIFICATIONS

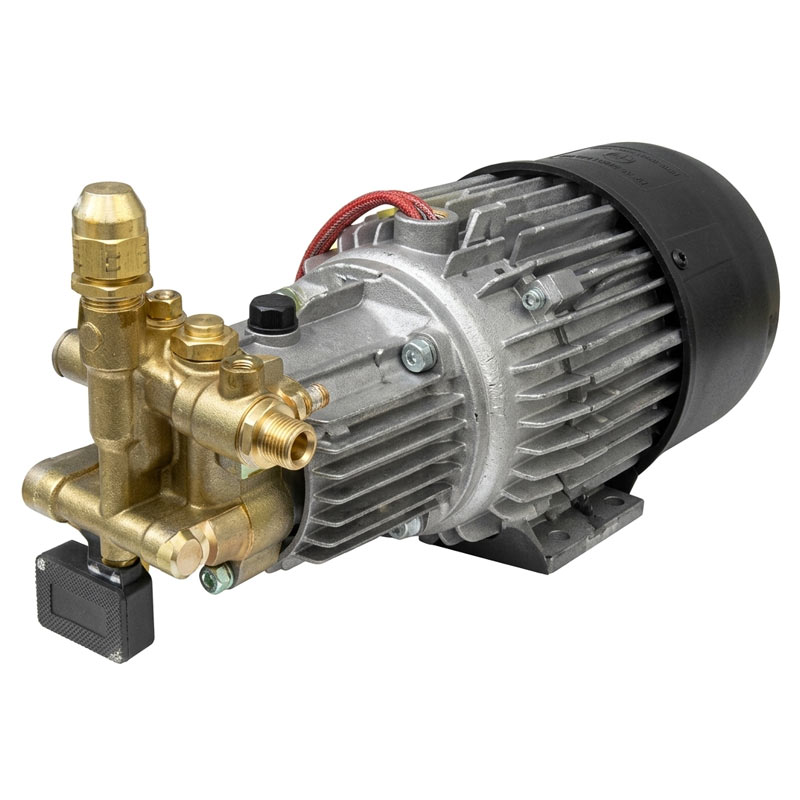

Axial pump with brass head
The MPBX2 axial pump features a brass head with three ceramic-coated steel pistons and a built-in bypass valve . The stainless steel suction and delivery valves ensure corrosion resistance in high-temperature cycles with alkaline detergents.
Delayed Total Stop 24V
The 24V low-voltage Total Stop system interrupts pump operation with a calibrated delay in the absence of a request from the lance. This protects the axial pump from the risk of overheating when dry, extending its operating life under intermittent use.
High thermal efficiency vertical boiler
The high-efficiency vertical steel coil boiler heats water up to 110°C , enabling high-pressure hot water washing to remove grease, oil, and biofilm, even without harsh detergents. The temperature regulator allows for adjustment to the type of dirt and surface being treated.
Integrated 3L detergent tank
The detergent suction system with an integrated 3L tank allows for direct injection of chemicals into the flow, without external accessories. Ideal for professional cleaning and disinfection applications where the detergent dose must remain constant.
Analog control panel
The analog control panel includes a glycerin-filled pressure gauge for stable operating pressure readings and a low-fuel warning light for fuel economy monitoring. Analog control reduces electronic failure points in harsh environments.
Integrated safety valve and by-pass
The safety valve automatically intervenes in the event of overpressure, protecting the pump and the hydraulic circuit. The bypass valve built into the head manages water circulation during idle operation, preventing stagnation in the hot circuit.
Two-way diesel pump
The two-way diesel pump ensures efficient and regular combustion inside the boiler, minimizing consumption and maintaining a stable hot water temperature even during continuous high-flow operation.
High-strength steel frame
The high-strength steel frame ensures structural rigidity in industrial environments. The integrated accessory holder organizes the lance, hose, and nozzles directly on the machine, reducing setup time and improving operational ergonomics when changing configurations.
Characteristics
- Professional hot water pressure washer
- Single-phase 230V power supply
- 2-pole induction motor
- Power 3200 W
- Nominal pressure 120 bar
- Max pressure 150 bar
- Max flow rate 660 L/h
- Outlet water temperature 110°C
- MPBX2 pump with brass head and 3 ceramic steel pistons
- Revolutions 2800 RPM
- Delayed Total Stop 24V
- Vertical boiler
- 3 L detergent tank
- 18 L Diesel Tank
- Glycerin-filled pressure gauge
- Made in Italy

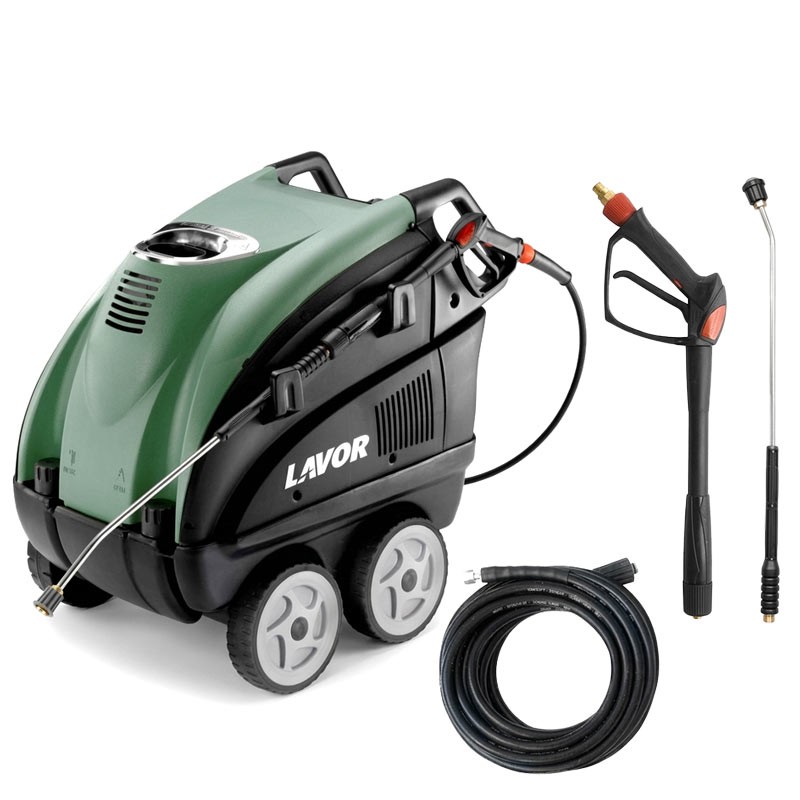

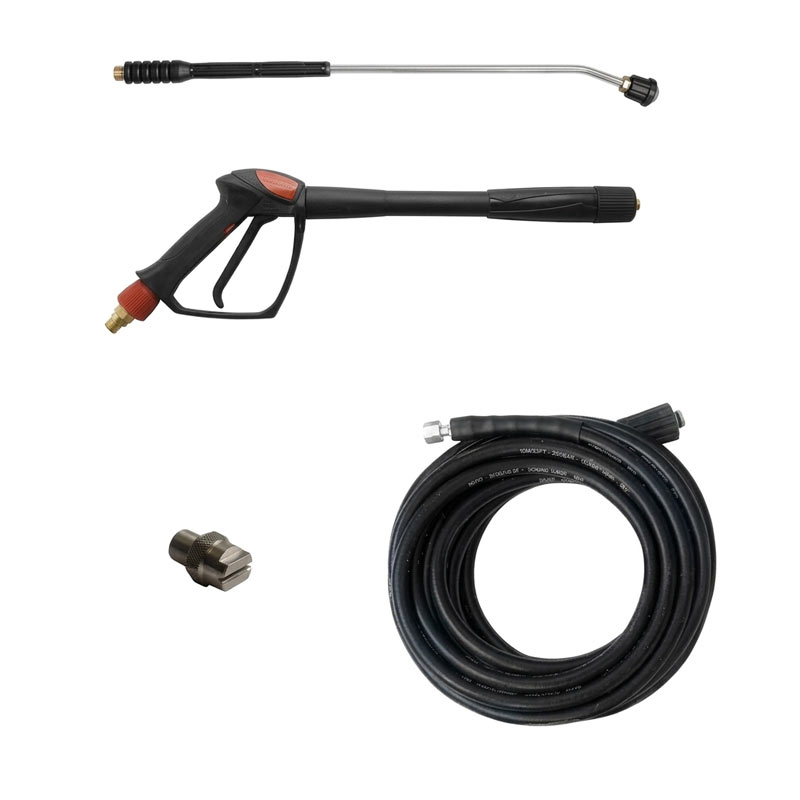

Standard Equipment
- M22 3/8" pistol with swivel attachment - code 00080-01695
- Adjustable lance - code 00080-01715
- Nozzle 040 - code 00080-03187
- R2 high pressure hose 10 m - cod. 00080-02347
