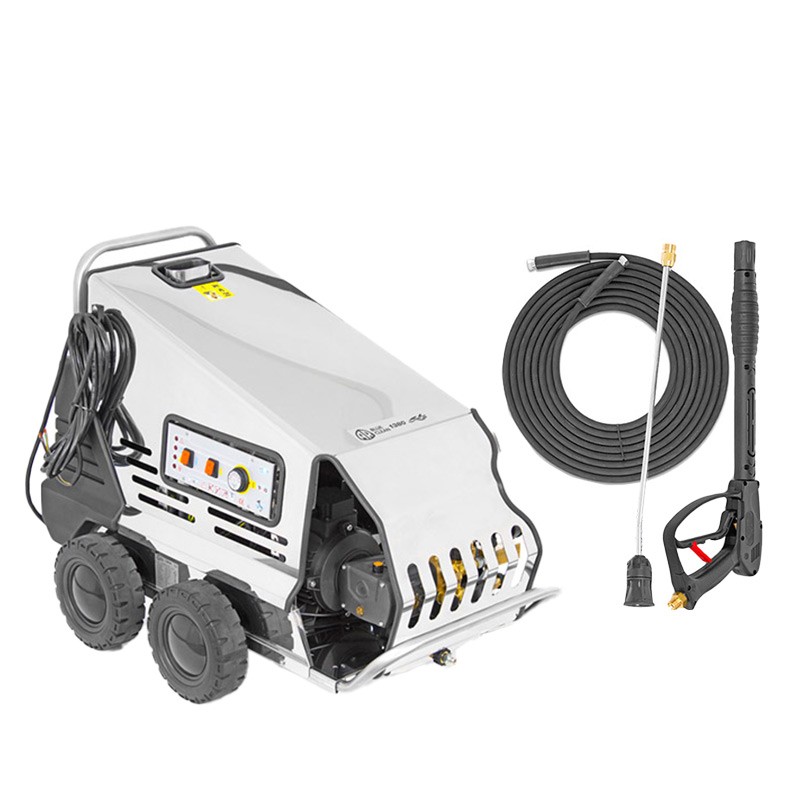

Annovi Reverberi AR 1380 - Hot Water Pressure Washer code 25284-V
The Annovi Reverberi AR 1380 is a professional hot water pressure washer with a frame and body entirely in stainless steel , ideal for the food sector where the hygiene standards regarding the machines used are more stringent.
The special all-stainless steel body allows it to be used even in very hostile environments such as ships and in the presence of corrosive agents such as salt: it is the ideal tool for use in marine environments, beaches, etc.
The Annovi Reverberi AR 1380 features a 3-piston pump in integral ceramic with a connecting rod and crank system . It has a by-pass valve with zero pressure relief in the pump head .
With 24 L diesel tank. Electric cable length 5 m.
Technical specifications
- Hot water
- Induction motor
- Connecting rod pump
- Brass head
- Total Stop System Timed
Functional specifications
Three-phase electric motor
The Annovi Reverberi AR 1380 25284-V is equipped with a 1450 rpm motor. This Annovi pressure washer has a thermal-magnetic motor protection .

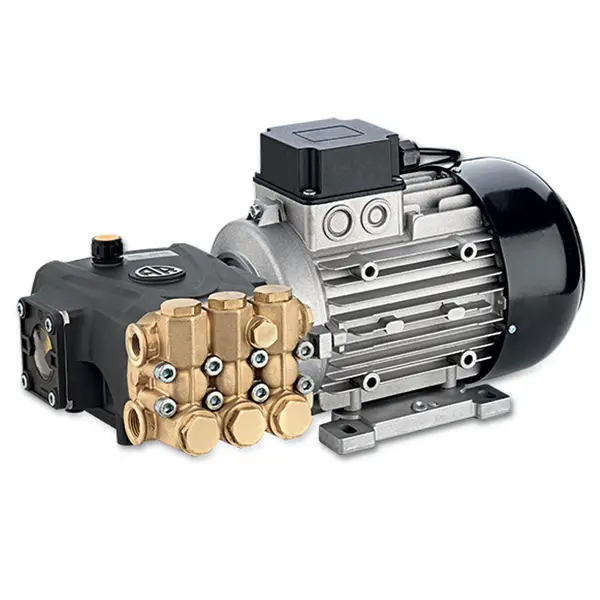

Self-priming function
A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.
Pressure washer with Total Stop
Annovi pressure washer with safety systems, the AR 1380 is equipped with a timed Total Stop , a micro-leak stop , and a one-hour Total Stop. It also features a low-water stop and an error signal via an intermittent light. Safety devices also include:
- Thermostat 150°C
- 3 pressure switches
- Pressure regulation
- Low voltage control panel
- Current presence warning light, diesel
- Built-in and adjustable detergent suction

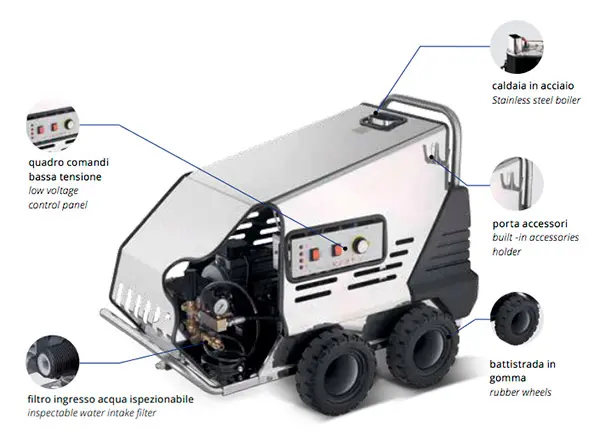

Characteristics
- 4-pole motor 1450 rpm
- Pump group with brass head
- 3 ceramic pistons with connecting rod and crank system
- automatic bypass valve
- Self-priming function
- Stainless steel valves
- 250 bar safety valve

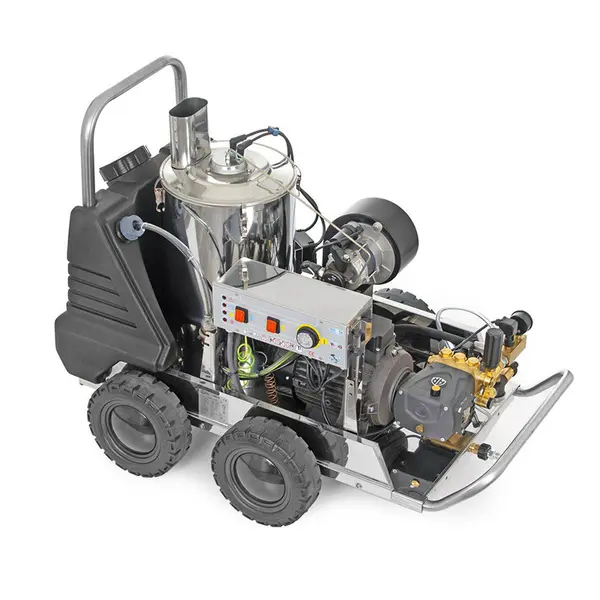

- Vertical stainless steel boiler with high-efficiency coil
- Auxiliary boiler pre-ventilation motor
- Pressure regulation
- Glycerin-filled pressure gauge
- Side support for accessories
- Timed Total Stop
- Stainless steel analog control panel
- Error signal light
- Diesel warning light
- Voltage warning light
- TS Spy
Machine safety and protection system with:
- arrest for micro-leaks
- total stop after one hour of Total Stop
- arrest due to lack of water
- engine overheating shutdown
- magnetothermal motor protection
- Thermostat
- Built-in adjustable low pressure detergent suction
- Low voltage controls
Directions for use
For intensive use, washing cars and machinery, garden equipment, floors, exterior walls, paint stripping and sandblasting, bathrooms, swimming pools, for food laboratories.
