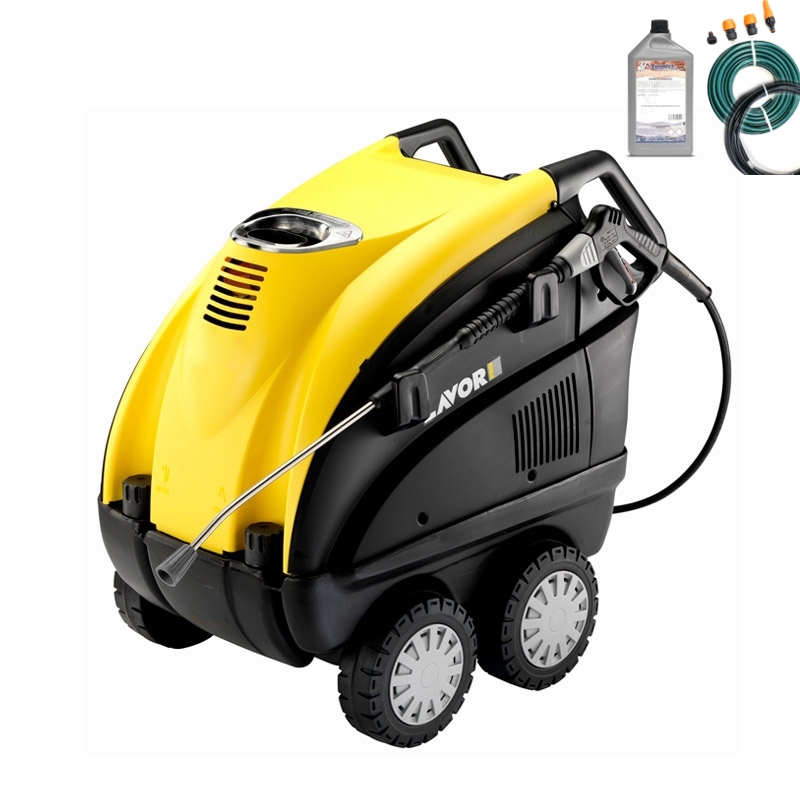

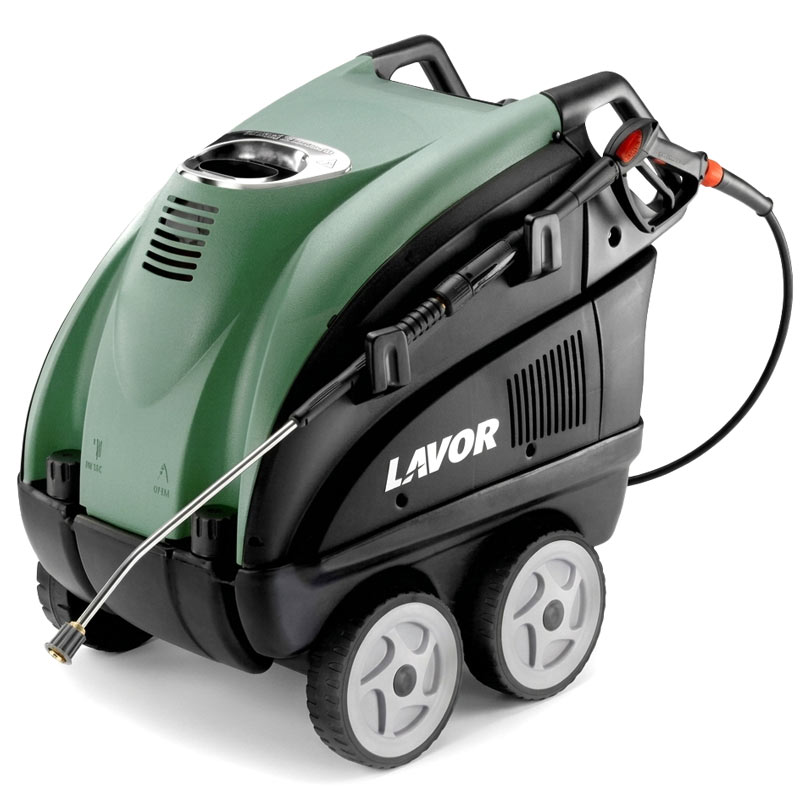

Lavor Mosel 2015 - Professional Hot Water Pressure Washer 230 bar
The Lavor Mosel 2015 is a professional hot water pressure washer designed for heavy-duty industrial applications, where mechanical reliability and consistent thermal performance are essential. Built entirely in Italy , this machine is intended for industrial cleaning professionals, workshops, livestock farms, food processing plants, and settings where cold water alone is insufficient to remove grease, oil, and organic contaminants. The water-cooled 4-pole induction motor ensures a longer-than-average operating life, eliminating the thermal issues typical of brushed motors in continuous applications.
The heart of the machine is the CL35 linear pump with a brass head and three ceramic pistons , combined with a vertical boiler with a high thermal efficiency steel coil : a combination that allows it to reach a maximum temperature of 110°C with a nominal pressure of 200 bar , ensuring extremely high cleaning effectiveness even without the use of aggressive chemicals. The 24V low voltage delayed Total Stop system completes the technical profile, making it suitable even for environments with particular electrical safety requirements.
Technical Specifications
The Lavor Mosel 2015 is powered by a three-phase 400V power supply with a power consumption of 7300 W , a sizing consistent with use in industrial contexts equipped with dedicated electrical systems. The auxiliary burner motor is independent of the pump unit, allowing for optimized thermal management and reducing absorption peaks. The 18 L diesel tank guarantees extended operating autonomy before refueling, while the pump unit operates at 1450 RPM with the CL35 pump , optimizing the life of the sealing components.
In terms of performance, the machine delivers a flow rate of 900 L/h at a nominal pressure of 200 bar , with a maximum peak pressure of 230 bar : values that place it in the medium-high range of professional hot water pressure washers. The stainless steel suction and delivery valves and the bypass valve integrated into the head ensure pressure stability and hydraulic longevity during intense work cycles. The detergent suction system uses an integrated 3 L tank , accessible and refillable without interrupting the operating cycle.
Functional Specifications
Linear Pump with Ceramic Pistons for Continuous High Pressure

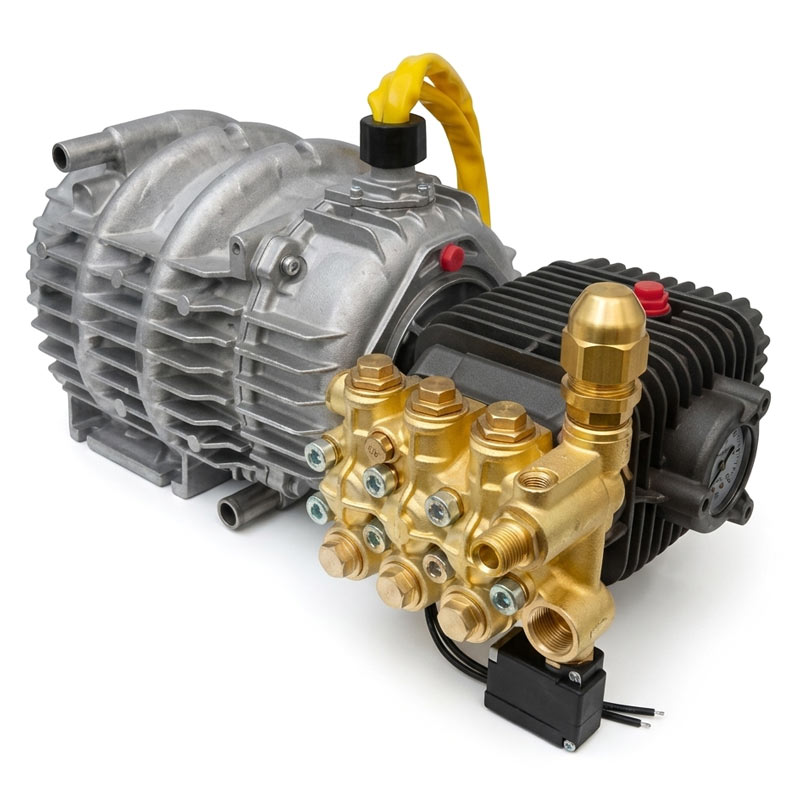

The CL35 linear pump features three ceramic pistons that work in conjunction with a brass head, a material chosen for its resistance to corrosion and cavitation, even in hard or slightly acidic water. The pump's linear geometry reduces vibrations transmitted to the frame and simplifies preventative maintenance, allowing seal kits to be replaced without disassembling the entire hydraulic unit. The integrated bypass valve manages recirculation when the nozzle is closed, protecting the pump from overpressure and overheating.
High Thermal Efficiency Vertical Coil Boiler
The vertical boiler with a steel coil is the component that differentiates this machine from cold water-only models. The helical path of the water inside the coil maximizes heat transfer from the flue gas, bringing the fluid up to 110°C in a short time and maintaining a stable temperature during continuous operation. This vertical architecture also promotes natural circulation and reduces the risk of limescale deposits forming on the heating walls, extending the intervals between descaling cycles.
Delayed Total Stop in Low Voltage 24V
The Total Stop 24V system is an active safety device that automatically shuts off the pump a few seconds after the flow to the gun is interrupted, instead of keeping it running in continuous recirculation. The low-voltage 24V control circuit is a design choice that increases operator safety in humid environments and allows the use of longer control cables without signal degradation. The programmed switch-off delay protects the pump from rapid start/stop cycles, a common occurrence in discontinuous industrial washing.
4-Pole Water-Cooled Induction Motor
The 1400 RPM 4-pole induction motor represents the most robust technical solution for continuous duty applications: the absence of brushes eliminates maintenance of contacting parts and reduces carbon dust emissions, which are critical in food processing environments. The motor's water cooling , rather than forced air cooling, maintains a constant operating temperature regardless of ambient temperature and surrounding air quality, preserving the dielectric characteristics of the windings over the long term. This system is particularly advantageous in dusty or vapor-saturated environments where air cooling could introduce contaminants into the motor.
High-strength steel frame and Made in Italy construction
The high-strength steel frame is designed to absorb the mechanical stress generated by the high-pressure pump and to withstand the impacts typical of industrial environments. Entirely Made in Italy production guarantees top-quality materials for a durable machine with professional performance.
Characteristics
- Professional hot water pressure washer
- 400V three-phase power supply
- 4-pole motor
- Power 7300 W
- Nominal pressure 200 bar
- Max pressure 230 bar
- Max flow rate 900 L/h
- Outlet water temperature 110°C
- CL35 pump with brass head and 3 ceramic pistons
- Revs 1450 RPM
- Delayed Total Stop 24V
- Vertical boiler
- 3 L detergent tank
- 18 L Diesel Tank
- Made in Italy

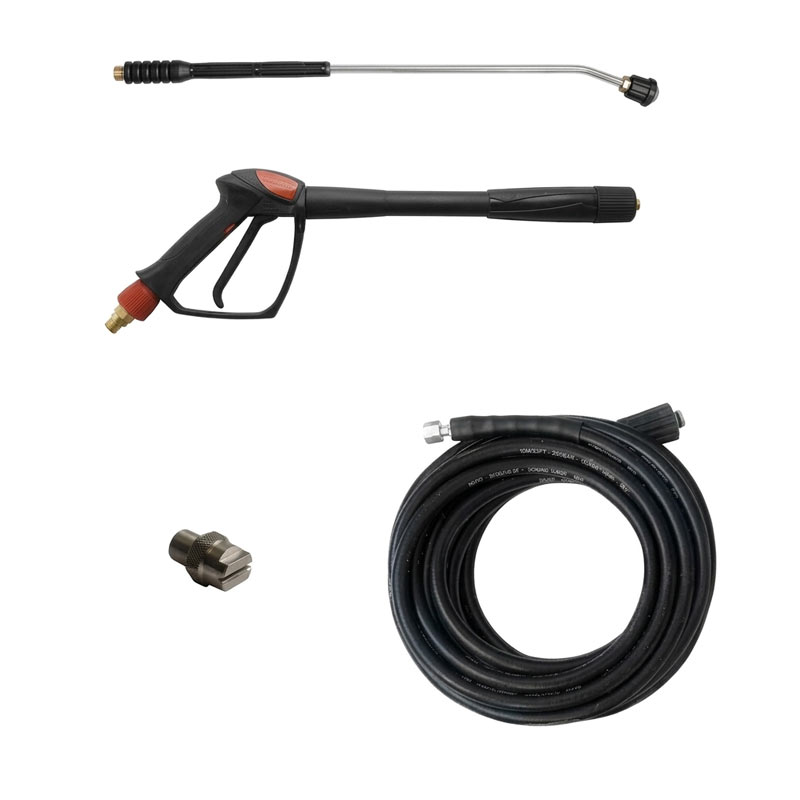

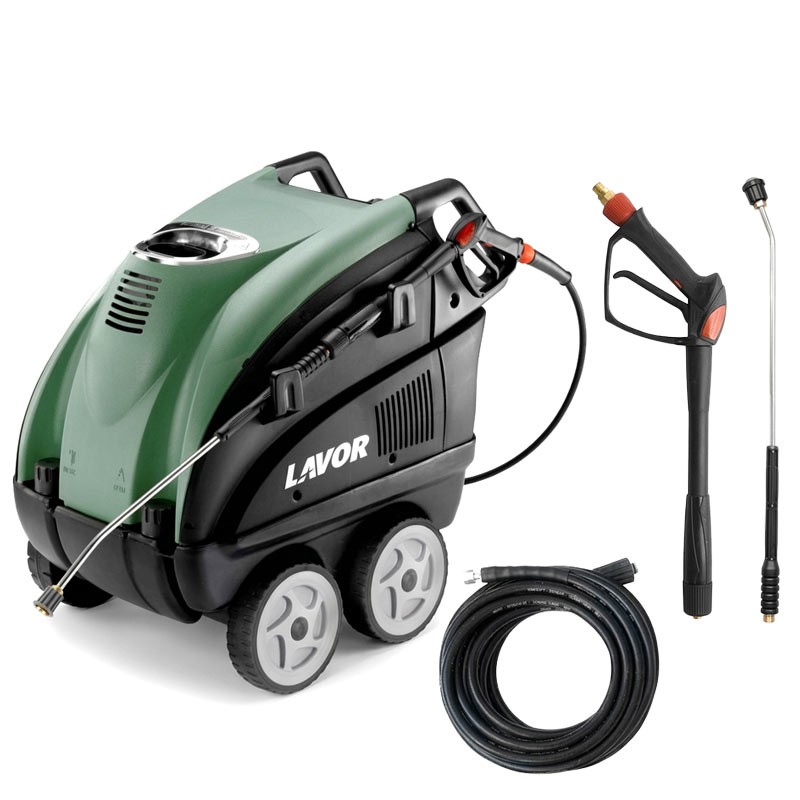

Standard Equipment
- M22 3/8" pistol with swivel attachment - code 00080-01695
- Adjustable lance - code 00080-01715
- Nozzle 045 - code 00080-03188
- R2 high pressure hose 10 m - cod. 00080-02347
>
