Lavor CW6
Linear Pump for Pressure Washers
200 bar - 7.5÷12.8 HP - 5.5÷9.5 kW
1450 RPM
Ceramic Pistons - Brass Head
Warranty 2 years
14 days to change your mind

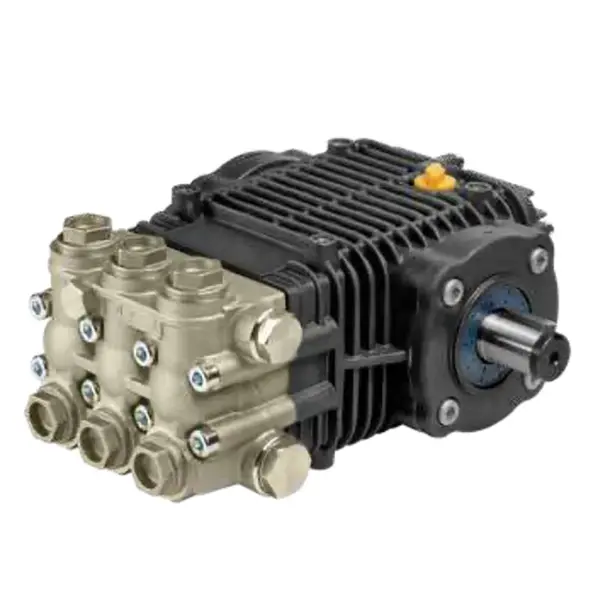

Lavor CW6 - Professional nickel-plated pump for pressure washers
The Lavor CW6 piston pump with nickel-plated brass head and separate by-pass valve. With a maximum pressure of 200 bar and a flow rate of up to 21 L/min , this pressure washer pump is equipped with a 4-pole motor cooled with H2O and total stop .
Equipped with low-wear Ø 20 mm ceramic pistons , with low-friction connecting rod made of aluminum alloy .
Models available
- CW 54-20 15-200 cod. 10001-10127 - flow rate 15-18 L/min
- CW 53-20 21-200 cod. 10001-10129 - flow rate 21-25 L/min
Characteristics
- Low wear ceramic pistons
- Low friction coefficient aluminum connecting rods
- Integrated by-pass valve with replaceable wear components
- Minimum bearing load
- Very low operating temperature
- Top of the range up to 21 L/min
Technical data
| Model | CW 54-20 15-200 | CW 54-20 21-200 |
| Code | 10001-10127 | 10001-10129 |
| Max pressure | 200 bars | 200 bars |
| Rpm | 1450 ÷ 1750 rpm | 1450 ÷ 1750 rpm |
| Scope | 15 ÷ 18 L/m | 21 ÷ 25 L/m |
| Power Required | 7.5 ÷ 9.2 HP | 10.5 ÷ 12.8 HP |
| Weight | 9.8kg | 9.8kg |
Technical data
| Model | CW 54-20 15-200 | CW 54-20 21-200 |
| Code | 10001-10127 | 10001-10129 |
| Max pressure | 200 bars | 200 bars |
| Rpm | 1450 ÷ 1750 rpm | 1450 ÷ 1750 rpm |
| Scope | 15 ÷ 18 L/m | 21 ÷ 25 L/m |
| Power Required | 7.5 ÷ 9.2 HP | 10.5 ÷ 12.8 HP |
| Weight | 9.8kg | 9.8kg |
