Lavor MPWJ3.5
Motor Pump with Elastic Coupling
400 V - 5÷7 kW
1450 RPM
Brass Head - Elastic Joint
Warranty 2 years
Shipped on Pallet

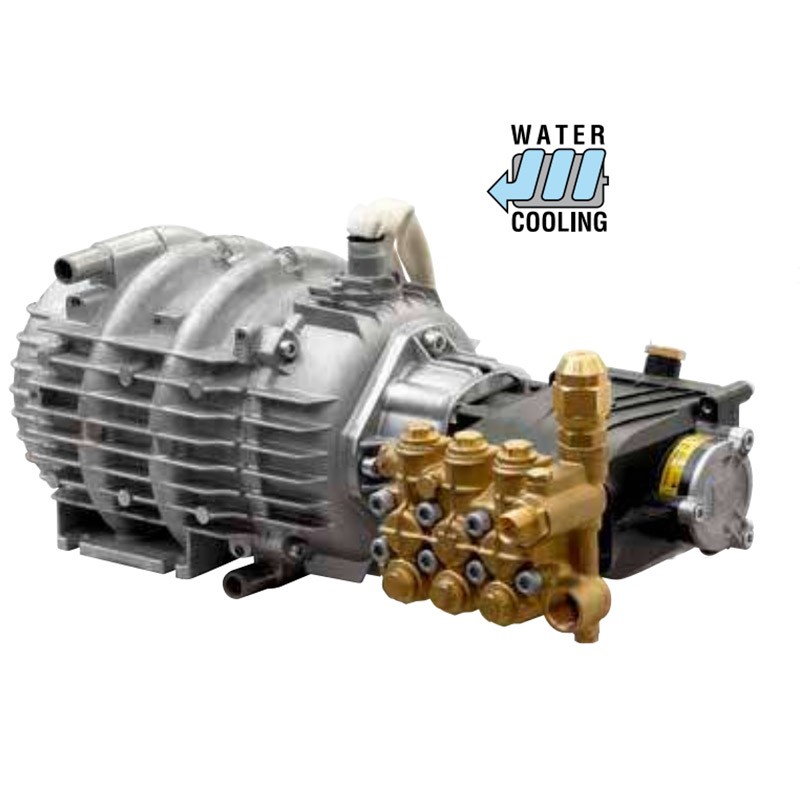

Lavor MPWJ3.5 - Linear Motor Pump with Brass Head for Water Cooling
Lavor MPWJ3.5 water pump , replacement part for professional Lavor pressure washers. Brass head , ceramic pistons , and water cooling.
This Lavor MPWJ3.5 motor pump is considered top of the range up to 15 L/min .
Coupling with a water-cooled engine reduces operating temperatures .
This Lavor MPWJ3.5 pump is equipped with:
- High pressure pump groups with elastic coupling
- Mounting bracket included
- Pressure regulator
Available models
- MPWJ 3.54-18 15-150 - left shaft code 34004-00079
- MPWJ 3.54-18 15-200 - left shaft code 34004-00080
Characteristics
- Lavor motor pump replacement for professional pressure washers
- Brass head
- Ceramic pistons
- 4-pole water-cooled motor
- Top of the range up to 15 L/min
- Reduces operating temperatures
- For heavy duty use
Technical Data
| Model | MPWJ 3.54-18 15-150 | MPWJ 3.54-18 15-200 |
| Power Supply | 400 V | 400 V |
| Max Pressure | 150 bars | 200 bars |
| Revolutions per Minute | 1450 rpm | 1450 rpm |
| Flow rate | 15 L/min | 15 L/min |
| Power Required | 5 kW | 7 kW |
| Weight | 29.3 kg | 31.3 kg |
Technical Data
| Model | MPWJ 3.54-18 15-150 | MPWJ 3.54-18 15-200 |
| Power Supply | 400 V | 400 V |
| Max Pressure | 150 bars | 200 bars |
| Revolutions per Minute | 1450 rpm | 1450 rpm |
| Flow rate | 15 L/min | 15 L/min |
| Power Required | 5 kW | 7 kW |
| Weight | 29.3 kg | 31.3 kg |
