Lavor MPW6
Professional Linear Motor Pump
400V - 150÷200 bar - 5÷7 kW
1450 RPM
Brass Head - Fixing Bracket
Warranty 2 years
Shipped on Pallet

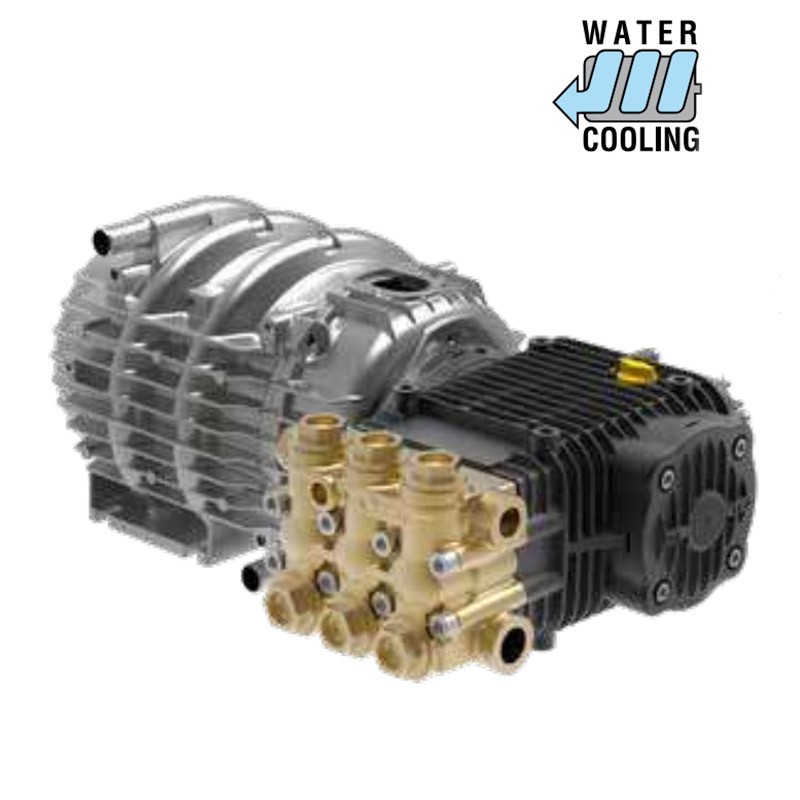

Lavor MPW6 - High Pressure Linear Motor Pump
Lavor MPW6 linear motor pump with brass head , ceramic pistons , and three-phase operation . Simplicity of construction is the trademark of these Lavor motor pumps, original spare parts for Lavor professional pressure washers . They guarantee high performance up to 15 L/min.
The Lavor MPW6 linear pump is water-cooled to reduce operating temperatures. For intensive professional use .
Mounting bracket included.
Available models
Selectable from the drop-down menu:
- MPW 64-20 15-150 - left shaft code 34004-00009
- MPW 64-20 15-200 - left shaft code 34004-00010
Technical Features
- Linear motor pump with brass head
- 4-pole three-phase water-cooled motor
- Simplicity of construction and high performance
- Low operating temperatures
- Ideal for intensive use
- Top of the range up to 15 L/min
Technical Data
| Model | MPW 64-20 15-150 | MPW 64-20 15-200 |
| Power Supply | 400V | 400V |
| Power | 5 kW | 7 kW |
| Pressure | 150 bars | 200 bars |
| Flow rate | 15 L/min | 15 L/min |
| Revolutions per Minute | 1450 RPM | 1450 RPM |
| Weight | 32 kg | 34 kg |
Technical Data
| Model | MPW 64-20 15-150 | MPW 64-20 15-200 |
| Power Supply | 400V | 400V |
| Power | 5 kW | 7 kW |
| Pressure | 150 bars | 200 bars |
| Flow rate | 15 L/min | 15 L/min |
| Revolutions per Minute | 1450 RPM | 1450 RPM |
| Weight | 32 kg | 34 kg |
