High Pressure Hose R1 250 bar
1/4 10 m DN 6 15 L/min
MPN: K4.618.0060
250 bar - 150°C
10 m - DN 6
1/4 - 15 L/min
€55.00
- 25%
€41.25
€33.81 tax excl.

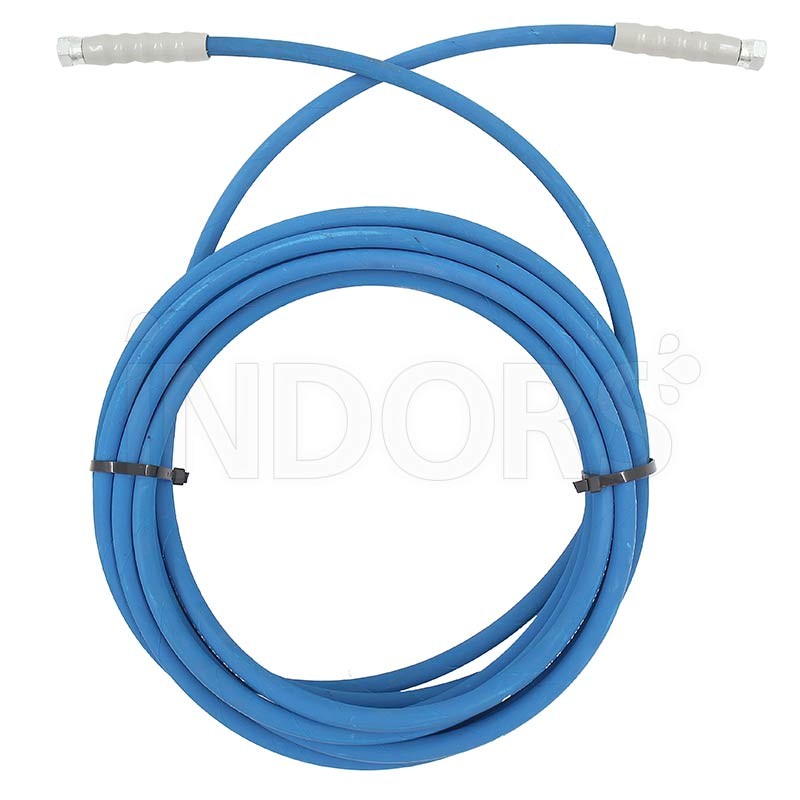

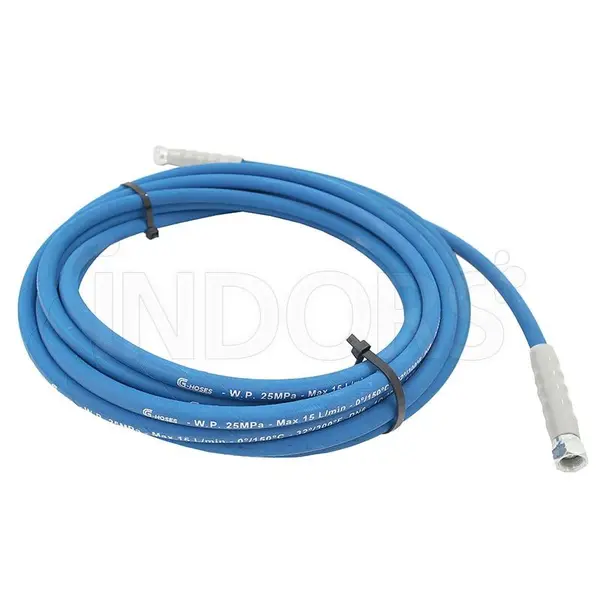

High Pressure Hose 1/4 Length 10 m Maximum Pressure 250 bar
The 1/4 high pressure hose has a nominal diameter of 6 mm (DN 6) and can withstand a maximum pressure of 250 bar , designed for a flow rate of 15 litres per minute and can withstand temperatures up to 150°C .
The hose comes with female fittings on both ends , these fittings are sized 3/8 inch , which refers to the inside diameter of the fittings, common in high pressure systems.
The total length of the pipe is 10 meters and at both ends there are sleeves , which are used to reinforce the pipe and protect it from mechanical stress.
In this case, sleeves are present on both ends of the tube to ensure greater strength and durability .
Technical Data
| Nominal Diameter | DN 6 |
| Maximum Pressure | 250 bar |
| Scope | 15 L/min |
| Maximum Temperature | 150°C |
| Length | 10 m |
| Fittings | F 3/8 |
Technical Data
| Nominal Diameter | DN 6 |
| Maximum Pressure | 250 bar |
| Scope | 15 L/min |
| Maximum Temperature | 150°C |
| Length | 10 m |
| Fittings | F 3/8 |
