Stihl HSA 140 R KIT
Professional Hedge Trimmer with Battery and Charger

Stihl HSA 140 R KIT - 75 cm Professional Hedge Trimmer for Demanding Jobs

The STIHL HSA 140 R cordless hedge trimmer in a complete kit with AP 30 battery and AL 301.1 charger is a Professional Hedge Trimmer from the Stihl ALL-PRO Line, ideal for green maintenance in professional settings. Designed to tackle demanding hedge trimming jobs, this professional gardening tool ensures a clean and efficient cut even on thick branches and dense vegetation.

Thanks to the powerful EC motor and the robust construction with a 75 cm cutting length, the professional STIHL hedge trimmer ensures operational continuity in any context. The flexibility of battery power and the integrated protections make this model an excellent choice for those seeking maximum productivity with minimal noise levels.

Battery and Charger INCLUDED.

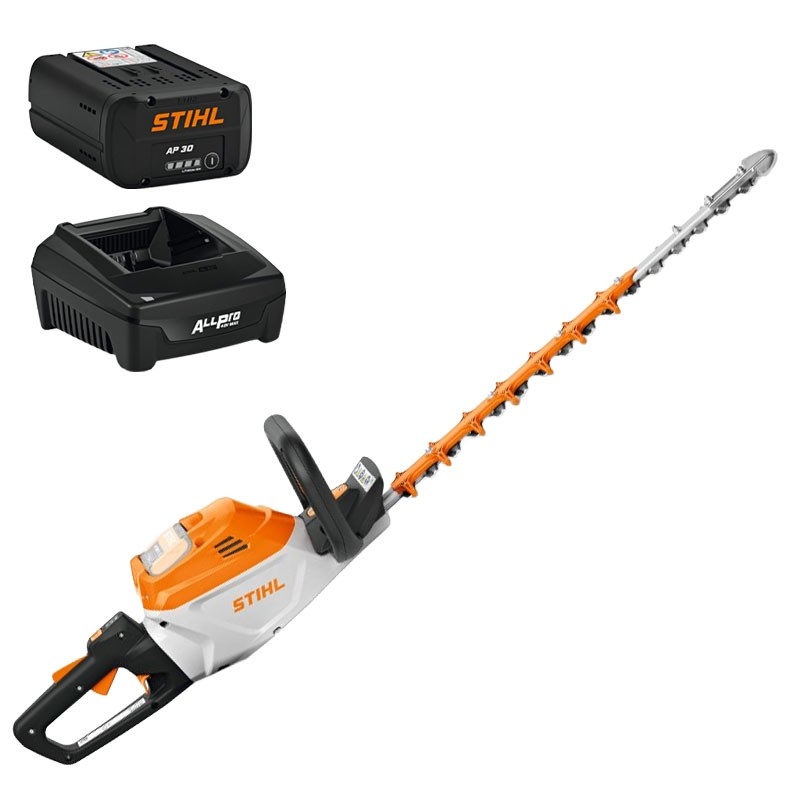

Kit Composition

The ready-to-use kit for the Stihl HSA 140 R Hedge Trimmer includes:

• HSA 140 R Hedge Trimmer
• AP 30 Battery, code 48504006546
• AL 301.1 Charger

Technical Specifications

This STIHL HSA 140 R cordless hedge trimmer is equipped with a highly efficient and low-maintenance EC motor, powered by the AP series / ALLPRO 36V battery system (maximum voltage 40V). The maximum power is 0.65 kW (output power 0.46 kW). The intelligent electronic transmission ensures the constant power function, which maintains performance even as the accumulated charge begins to decrease.

The stroke rate is adjustable in 3 stages:

• 2600 strokes/minute
• 3000 strokes/minute
• 3400 strokes/minute

The cutting length is 75 cm with a tooth spacing of 38 mm for handling robust branches. The double-sided blades are optimized to reduce friction. Conforming to the IPX4 splash water protection certification, this cordless hedge trimmer is ideal for working in the rain or adverse weather conditions.

The included AP 30 battery has 4 LEDs for charge status monitoring and provides a working autonomy of 168 to 235 minutes depending on the set stroke rate. The included STIHL AL 301.1 charger takes a maximum charging time of 295 minutes and integrates an active cooling system, as well as a practical cable winder with a wall-mounting bracket.

Battery Compatibility and Duration

Full list of compatibilities available on the official Stihl website

Battery and Charger FEATURES INCLUDED

This STIHL cordless hedge trimmer comes complete with the AP 30 Battery, code 48504006546 and the AL 301.1 Charger, code EA094305520.

AL 301.1 Charger

The Stihl AL 301.1 charger can recharge the AP 30 battery to 80% in just 55 minutes and to 100% in just 75 minutes.
This Stihl Fast Charger features an active battery cooling system to protect it during charging. The charging progress is displayed via an LED indicator. Additionally, with its integrated practical cable winder, the STIHL AL 301.1 charger can also be wall-mounted.

AP 30 Battery

The supplied battery ensures continuous operating times of up to 235 minutes (minimum 168 minutes at maximum power) on this HSA 140 R Hedge Trimmer. Its power is primarily designed for the base models of the AP system, just like the hedge trimmer in question. The STIHL AP 30 battery, with a nominal voltage of 36 V, is versatile, resistant, and durable over time.

Functional Features

Speed Adjustment and Ergonomic Maneuverability

Power control is managed directly on the multi-function rotating handle, which adapts to any angle thanks to its 90° rotation to the right and left. This feature allows both right-handed and left-handed users to operate with maximum comfort during vertical, horizontal, or overhead cuts. The ability to select three different cutting speeds ensures the ideal balance between impact force and energy consumption.

Double-Sided Blade for Rough Pruning

The 38 mm tooth spacing is specifically developed for more complex pruning tasks. The sharpenable and shaped blades designed to reduce friction cut effectively in both directions, preserving battery charge and extending the lifespan of the entire transmission mechanism.

Operational Safety and Component Protection

The presence of the screwed-on cutting guard reduces the risk of operator injury and is easily replaceable if worn. There is also a guide guard that prevents damage to the blade tip when working close to walls, low walls, or the ground.

Quiet Operation and Weather Resistance

Reduced vibrations and low noise emission allow the device to be used without mandatory hearing protection and in noise-sensitive areas such as hospitals, schools, and residential centers. IPX4 standard compliance ensures full operational functionality even during rainy days.

Fleet Management and Digital Connectivity

The tool is compatible with the optional Smart Connector 2 A (NOT INCLUDED). Once installed and connected to the STIHL connected app via Bluetooth, the connector records actual operating hours and notifies about maintenance deadlines, optimizing the management of company machinery.

Features

• Highly energy-efficient EC motor
• AP 36V battery system
• Constant power
• 90° rotatable handle
• 3-level stroke speed selection
• Double-sided blade
• 38 mm tooth spacing
• 75 cm blade length
• IPX4 splash protection
• Prepared for STIHL Smart Connector 2 A
• Battery and Charger included

Standard Equipment

• HSA 140 R Hedge Trimmer
• AP 30 Battery, code 48504006546
• AL 301.1 Charger
• Blade Cover
• User Manual
