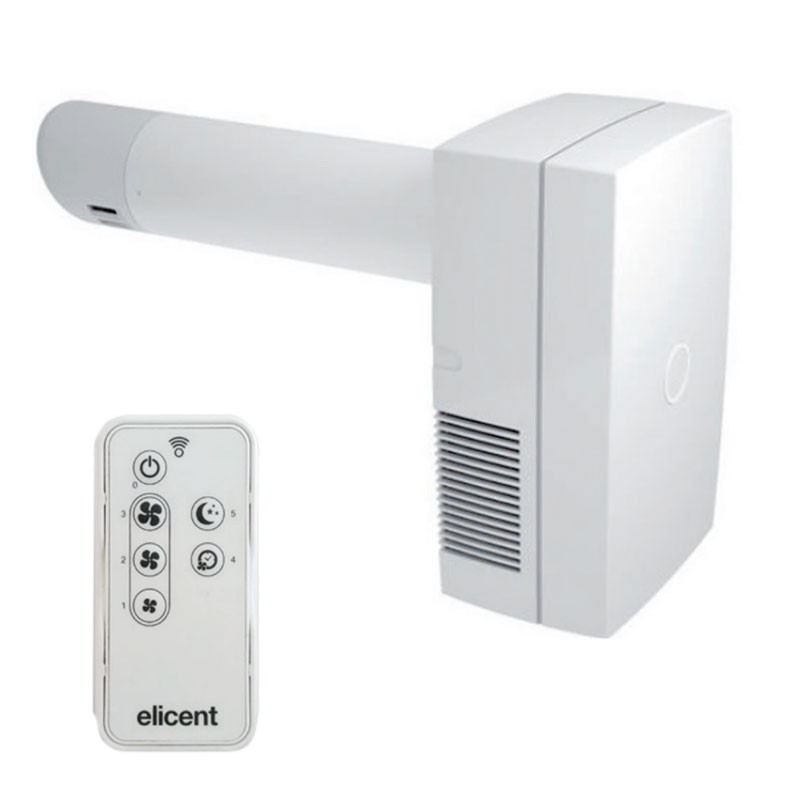

Elicent REC Smart Plus - Radio-Controlled Mechanical Ventilation Unit

Air exchange with heat recovery, without heat loss, for schools, offices, classrooms, homes and cellars.

Elicent REC Smart Plus is a controlled mechanical ventilation (CMV) system and is the ideal solution for air exchange in a single room or for localized humidity problems . Its operating principle is based on heat recovery via an exchanger, within which both flows (supply/extraction) pass simultaneously.

• Suitable for installation in any environment
• Particularly suitable for humid rooms

The Elicent REC Smart Plus is a decentralized air extraction and supply unit with heat recovery, equipped with radio control and designed to exchange and recirculate air within rooms and homes without the heat loss that would otherwise occur when opening windows. The Elicent REC Smart+, capable of recovering 75% of heat up to a maximum temperature of 50°C, is the perfect solution for maintaining a healthy environment while saving on heating costs and is an excellent alternative to the impossibility of installing a centralized system.

By installing a heat recovery mechanical ventilation unit (CMV) equipped with a highly efficient filtration system with a double HEPA + G4 filter , a healthy microclimate is created, eliminating up to 99.5% of harmful airborne particles and 100% of pollen. Furthermore, by maintaining the heat within the room where air is recirculated, heating and air conditioning costs are significantly reduced.

Elicent REC Smart Plus main features:

• Equipped with remote radio control
• Thermal efficiency of 75%
• Maximum wall thickness 40/60 cm
• Purification of environments
• Mold sanitization
• Eliminates up to 99.5% of airborne pathogens
• High energy efficiency EC motor
• Single room 27/53 m³/h

Functional Specifications

Radio Control

Elicent REC Smart Plus comes with a radio remote control for control, including night mode and extraction-only mode selection. These functions are also indicated by two different lights on the VMC unit, along with an indicator for any anomalies.
The following functions can be managed using the remote control:

• On/Off
• Speed regulation and relative air flow
• SLEEP mode (for extra quiet operation at minimum speed during night hours)
• TIMER mode (adjustable from 0 to 30 minutes designed to delay the automatic switch-off of maximum speed)

Installation

The Elicent REC Smart + is installed by simply drilling a 100 mm hole in the wall , without requiring complex masonry work. Thanks to an umbrella-like opening and closing system on the outer tube, the device can be easily installed without scaffolding or external intervention, even in buildings on upper floors. The cap is connected to a cable that, through a system, closes it and passes it inside the tube, allowing it to be repositioned easily.

Air circulation system

Taking advantage of direct access to the outside, the Elicent REC Smart+ exchanges polluted air inside a room with outside air by passing the new air through two highly efficient HEPA + G4 filters. While recirculating the air, heat is retained inside the room with a thermal efficiency of 75% . This method avoids opening windows, significantly reducing heating costs and the introduction of polluted outside air. The result is a healthy and purified environment, eliminating at least 98% of PM2.5 particles, 95.5% of PM10 particles and 100% of pollen.

Simple maintenance

This decentralized CMV ventilation system effectively solves humidity and condensation problems , making it the ideal option for renovations or new builds without a centralized ventilation system. Maintenance of the Elicent REC Smart is simple and requires only a few steps: the filters can be washed, even in the dishwasher, and replaced when necessary. The exchanger is easily inspected and removable for convenient cleaning.

Technical Specifications

The Elicent REC Smart Plus is wall-mounted with direct exhaust and can be installed vertically or horizontally, swiveling 360° to accommodate available space. Its air flow rate is 27/53 m³/h and it features an EC motor , a highly energy-efficient motor that combines the performance of an electric motor and a traditional one, thus offering extremely low consumption ranging from just 8 to a maximum of 28 W.

This is an internal ventilation system suitable for any room up to 40 m² and particularly suitable for:

• Schools
• Offices
• Classrooms
• Houses
• Cellars

Speed Regulation and Humidistat

The Elicent REC Smart Plus is designed for 24-hour continuous operation at minimum speed. The unit switches to maximum speed by selecting the mode on the included remote control. These models are equipped with the MHY Smart function, which progressively increases the speed based on the humidity level detected by the built-in humidistat. When the detected humidity level returns within the preset range (adjustable between 40% and 90% relative humidity), the unit automatically switches to minimum speed.

BOOST function

The BOOST function is the maximum speed of the VMC unit. This function generally lasts a maximum of 30 minutes before reactivating the minimum speed, but it can be managed via remote control, which allows you to set a timer from 0 to 30 minutes to extend its operation when necessary.

Bypass function

Equipped with a by-pass function, this decentralized ventilation unit is able to provide comfort in every season by using only the air filter function in the summer and hot periods, eliminating heat retention and purifying the incoming air, replacing it with polluted internal air.

Available versions

• REC Smart Plus L400 for walls up to 400 mm thick
• REC Smart Plus L500 for walls up to 500 mm thick
• REC Smart Plus L600 for walls up to 600 mm thick

Characteristics

• Extremely compact structure in high quality and resistant plastic material
• Perfect thermal and acoustic insulation
• Equipped with polypropylene filters for air filtration
• Equipped with By-pass function
• Equipped with double EC motorization
• Supplied with external cover and gasket
• Equipped with drip guard and condensation drain hole
