Elicent REC SanAir WALL
VMC Heat Recovery Unit
wall mounted only 2 holes

Elicent REC SanAir WALL - Decentralized Controlled Mechanical Ventilation Unit with Double Flow

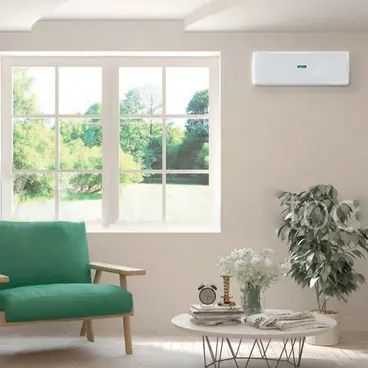

Elicent REC SanAir WALL is a decentralized controlled mechanical ventilation unit equipped with an advanced air filtration system and double air flow . With a compact and ultra-flat design, it is suitable for single rooms with a surface area of up to 40 m² , and for the residential or small tertiary sector.

This system is designed for the exchange and recirculation of air inside rooms and homes with heat recovery at thermal efficiency of up to 82% .

Elicent REC SanAir WALL can be installed on any type of wall or perimeter wall with only 2 holes of Ø 100 mm . This VMC is the perfect solution to maintain a healthy environment without having to open windows , risking the entry of pollutants, and is an excellent alternative to the impossibility of installing a centralized system .

Can be installed both horizontally and vertically on walls of any thickness and material

Technical Specifications

Elicent REC SanAir WALL is equipped with an enthalpic heat exchanger that allows the recovery, in addition to sensible heat, of the heat present in water vapour with a thermal efficiency of up to 82% .

This decentralized controlled mechanical ventilation unit is adjustable on 5 ventilation levels from 15 to 41 m³/h and has a remote control for remote control .

The VMC Elicent REC SanAir WALL also has an anti-freeze and free-cooling function with a programmable timer of up to 10 hours. Its operation is super silent with noise levels below 30 dB in night mode. Its consumption is 4 W.

Compliant with BT Directives 2014/35/EU, EMC 2014/30/EU. CE marking.

Functional Specifications

Easy Installation

Elicent REC SanAir WALL can be positioned both vertically and horizontally to best adapt to any style of environment. Furthermore, this ventilation unit is installed on the wall through two simple Ø 100 mm core drillings in the wall that do not require any particular demanding masonry work. The presence of an "umbrella" closing and opening system of the external grille allows the device to be easily installed without requiring scaffolding or interventions on the exterior of the buildings in the case of installation on upper floors.

Air Circulation and Filtration System

Direct access to the outside allows the polluted air inside a room to be exchanged with the outside air by passing the new air introduced through two filters: an F8 outlet and a G4 inlet which allows the retention of at least 98% of PM 2.5, 99.5% of PM 10 and 100% of pollen. These filters are also inspectable and easily removable for cleaning or replacement, the need for which is signalled by a warning light.

This way you avoid having to open windows, a system that allows you to significantly reduce the costs associated with heating and the introduction of polluted external air, keeping the heat inside the room and creating a healthy and purified environment.

Easy maintenance

This decentralized VMC system is able to solve humidity and condensation problems , an ideal solution in the case of renovations and/or new buildings where a centralized ventilation system is not foreseen. Elicent REC SanAir WALL requires little and simple maintenance, it is sufficient to wash the filters (even in the dishwasher).

Wall Compatibility

This Controlled Mechanical Ventilation unit can be installed on any type of wall or perimeter wall and of any thickness and material. The VMC Elicent SanAir WALL is supplied including 2 Pipes Ø 80 mm with a length of 48 cm .

Characteristics

Elicent REC Duo Evo main features:

• Thermal efficiency up to 82%
• Highly efficient filtering system
• Enthalpy recovery unit
• Compliant with ERP Directive 2009/125/CE and EU Regulation 1253/2014
• Ideal for rooms with a surface area of up to 40 m²
• Adjustment of the ventilation level between 5 selectable levels
• Free cooling (with programmable timer up to 10 hours)
• Single model for horizontal or vertical installation

5 different ventilation modes

Standard Equipment

• 1 x Fixing plate
• 1 x Aerator Group
• 1 x Lid
• 2 x Tubes Ø 80 mm - Length 48 cm
• 2 x Mouthpiece
• 1 x Electric cable 2+Tx0,5mm2 - Length 700 mm
• 2 x Fixed external grills
• 1 x Remote Control
