| IP | First digit – Protection against solid objects | Second digit – Protection against water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Solid objects ≥ 50 mm | Vertical dripping |
| 2 | Solid objects ≥ 12.5 mm | Dripping when tilted (15°) |
| 3 | Solid objects ≥ 2.5 mm | Water spray |
| 4 | Solid objects ≥ 1 mm | Water splashes |
| 5 | Dust protected (partial) | Water jets |
| 6 | Dust tight | Powerful water jets |
230V - 1.8÷2.4 kW
IP55 - Indoor/Outdoor
Non-visible light
With Remote Control
Basic equipment: Adjustable wall mount

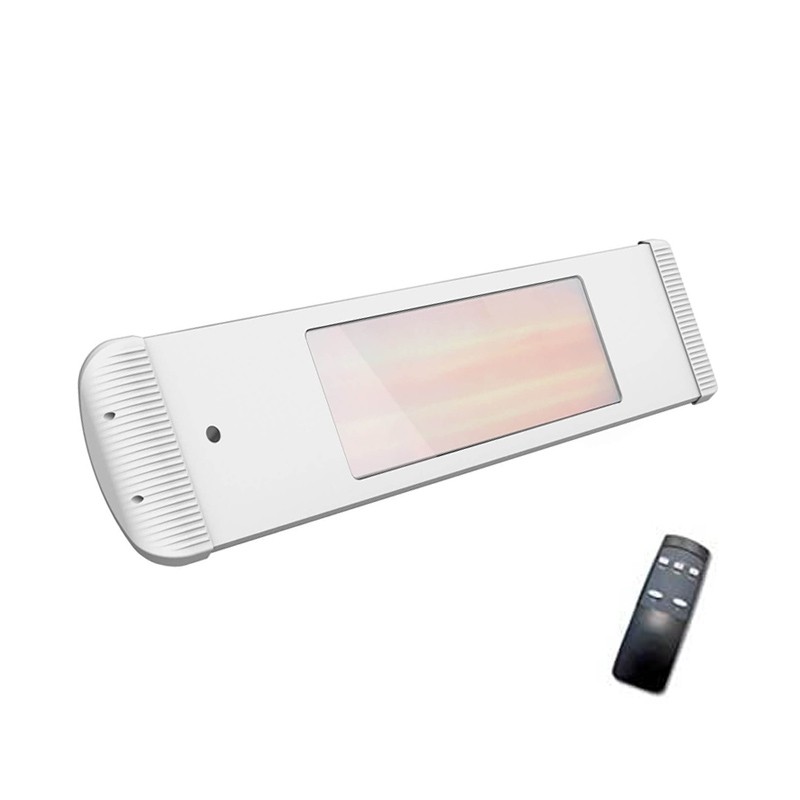

MO-EL Aaren Dimmer is a heating lamp that enriches the MO-EL Aaren range with a remote control included : it is possible to control multiple heaters simultaneously , or adjust the power of the hot air heater from 1/3 , 2/3 or full power .
MO-EL Aaren Dimmer, available in white and black , features an exclusive ceramic glass on all Dimmer devices to protect the lamp: Schott Nextrema technology, with a 4mm thick glass, resists thermal shock and makes the use of this infrared heating lamp possible in both indoor and outdoor environments . MO-EL AAren Dimmer is not afraid of rainwater, dust, or wear and tear caused by other atmospheric agents as it is protected by IP55 , a reliable protection that makes this dimmable heater absolutely reliable and designed for intensive use .

The peculiarity of the MO-EL Aaren heaters, also valid for the Aaron Dimmer with remote control, is the low visual impact: the light produced by the IR-B Carbon lamp is reduced to a minimum and 90% transparent to infrared rays of the IR-B band, while being opaque with respect to the frequencies visible to the naked eye.
Convector heaters that use short waves are ideal for providing even, pleasant heat that lasts over time without excessive heating power. This is why MO-EL Aaren Dimmer infrared lamps are designed for indoor use, both in homes and public spaces, as they enhance the relaxing effect and make the atmosphere not only warmer but also extremely comfortable .

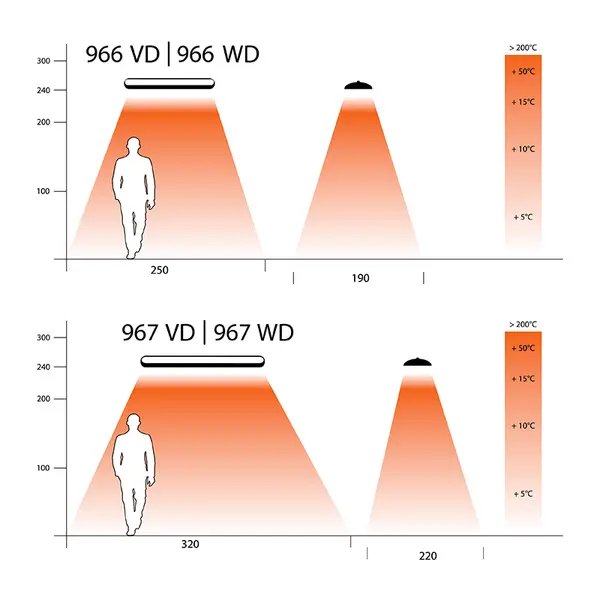

Below is a table showing the extent of the heated zone from 5°C to over 16°C . The closer you are to the lamp, the more the heat increases.
| MODELS | HEATED SURFACE | HEIGHT |
| 966VD | 2.5 x 1.8 m | 2 m |
| 966WD | 2.5 x 1.8 m | 2 m |
| 967VD | 3 x 2 m | 2 m |
| 967WD | 3 x 2 m | 2 m |


The MO-EL Aaren Dimmer models have a body in painted 6060 aluminum , with a weight varying from 7.1 kg to 8.0 kg , depending on the model.

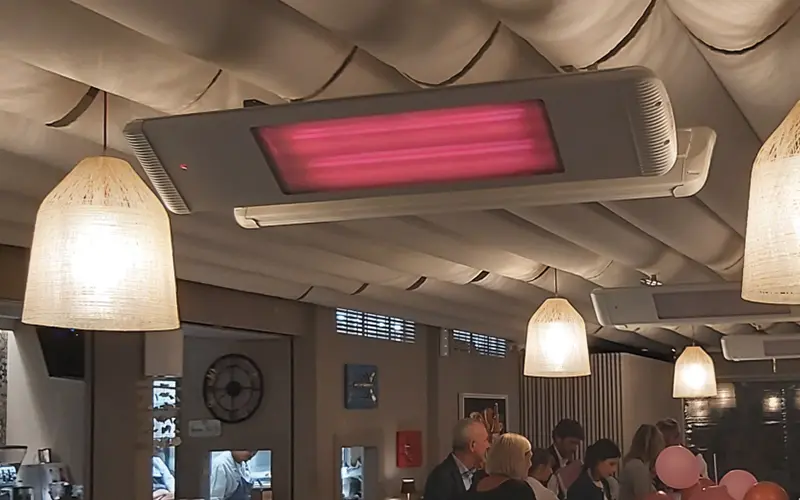

The swivel wall bracket is included : the installation of the Aaren Dimmer heating panels is suitable for all usage arrangements, from auxiliary heating for restaurants , bars and other places open to the public, to libraries , offices , but also for exhibition halls , petrol stations and airports .

Below is a short video showing the disassembly of the MO-EL Aaren Dimmer lamp.
| Model | 966VD | 966WD | 967VD | 967WD |
| Food | 230V | 230V | 230V | 230V |
| Power | 1.8 kW | 1.8 kW | 2.4 kW | 2.4 kW |
| Cavity | H05SS-F-4x1.5mm 3m | H05SS-F-4x1.5mm 3m | H05SS-F-4x1.5mm 3m | H05SS-F-4x1.5mm 3m |
| Infrared Radiation | Wave Media | Wave Media | Wave Media | Wave Media |
| Protection Class | IP55 | IP55 | IP55 | IP55 |
| Class Isolation | I | I | I | I |
| Materially Radiant | Carbon IR-B | Carbon IR-B | Carbon IR-B | Carbon IR-B |
| Remote control | YES | YES | YES | YES |
| Color | Nero | White | Nero | White |
| Dimensionally | 105 x 25 x 7.5 cm | 105 x 25 x 7.5 cm | 118 x 25 x 7.5 cm | 118 x 25 x 7.5 cm |
| Weight | 7.1 kg | 7.1 kg | 8 kg | 8 kg |
| Model | 966VD | 966WD | 967VD | 967WD |
| Food | 230V | 230V | 230V | 230V |
| Power | 1.8 kW | 1.8 kW | 2.4 kW | 2.4 kW |
| Cavity | H05SS-F-4x1.5mm 3m | H05SS-F-4x1.5mm 3m | H05SS-F-4x1.5mm 3m | H05SS-F-4x1.5mm 3m |
| Infrared Radiation | Wave Media | Wave Media | Wave Media | Wave Media |
| Protection Class | IP55 | IP55 | IP55 | IP55 |
| Class Isolation | I | I | I | I |
| Materially Radiant | Carbon IR-B | Carbon IR-B | Carbon IR-B | Carbon IR-B |
| Remote control | YES | YES | YES | YES |
| Color | Nero | White | Nero | White |
| Dimensionally | 105 x 25 x 7.5 cm | 105 x 25 x 7.5 cm | 118 x 25 x 7.5 cm | 118 x 25 x 7.5 cm |
| Weight | 7.1 kg | 7.1 kg | 8 kg | 8 kg |
On Request Accessories
