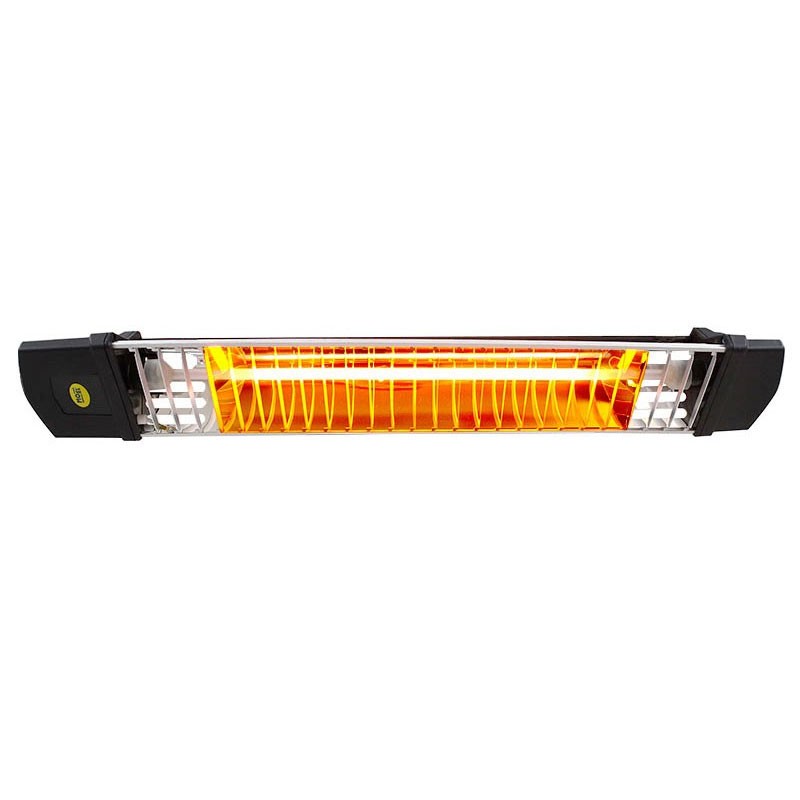

MO-EL Iris 866N and 866NRC - Infrared Heating Lamp for Rooms of 4-6 m²
Mo-El Iris is a shortwave infrared radiant panel made in Italy , designed for rapid, uniform, and efficient heating. The wall-mounted version optimizes space, while the remote control allows you to manage multiple units and program their use, reducing energy consumption and waste.
Iris combines professional technology, immediate comfort and sustainability , representing the ideal choice for those seeking high performance and energy savings in infrared heating.
45cm suspension chains and wall bracket INCLUDED.
Available models
- Iris 866 N - no remote control
- Iris 866 NRC - with remote control
Upon request, Iris is also available in the plug-free version ( 866NP ), for direct and professional installation.
Installation options
The Mo-El Iris 866N / 866NRC lamp is supplied with a wall bracket attachment . It can be equipped with additional optional attachments of your choice , depending on installation requirements:
Wall Mount / With Chain (Included)
The Standard version of Mo-El Iris 866N includes the wall support and 45 cm suspension chains, thus allowing you to immediately choose between two types of use depending on your needs.
Articulated Arm for Wall Installation (Optional)
It is possible to choose to add the 1 m articulated arm (code MOE4467) to the standard model, thus obtaining maximum flexibility of use, directing the heating light of the lamp to the areas of greatest need depending on the moment.
Furthermore, by adding the 50 cm extension (code MOE4469) you obtain an even greater arm length, gaining more heated space.
Hook for installation on umbrella (Optional)
Alternatively, you can choose to equip the standard model with an umbrella hook (code MOE868U) to attach the lamp to the arms of outdoor umbrellas, thus optimizing space and minimizing clutter. This solution allows heat to be radiated directly from above onto people.
Hook for pole installation (Optional)
Another option is to combine the standard model + the pole support hook (code MOE868P) . This solution allows you to attach the lamp to floor supports (not included) in the compatible versions: Tripode 2.10 m (code MOE2473) and Elegance 2.14 m (code MOE4464).
Functional specifications
Heat through radiation
Infrared heating systems exploit the principle of radiation, whereby heat transfer via electromagnetic waves, also known as thermal radiation, produces heat. In radiant heat transfer systems, the infrared part of the electromagnetic spectrum is responsible for the heating effects. The infrared band is divided into IR-A, IR-B, and IR-C, radiation that is not visible to the naked eye like UV rays, but which produces a change in temperature wherever it is irradiated.
In particular, the lamps in the Iris range use the short IR-A wave, allowing you to perceive a sensation of intense and immediate heat from the very first moments of use.
Low-consumption heating
The Iris 866N infrared wall heater is a low-energy electric heating system that's easy to install and requires minimal maintenance. The warm air can be directed wherever it's needed.
Indoor/outdoor heating lamp
The package includes a wall mount system and suspension chains for easy installation.
The MO-EL Iris models are equipped with an anti-dust and anti-rain protection system, making the use of these short-wave infrared panels ideal for indoor environments (restaurants, workplaces, places of worship) and outdoor environments .
Iris 866NRC: the convenience of remote control
In the Iris 866 NRC version, selectable from the drop-down menu, you can use an infrared lamp with remote control . Turning the heater on and off is even more convenient and quicker, limiting use of the heater to only the time necessary. With the infrared system, a single remote control can be used to control multiple appliances , simplifying heater management as much as possible.
Dimensions and irradiation
Main Features
- Professional quality
- Completely Made in Italy
- Short Wave Lamp with FROZEN Light
- Heated area of 4/6 m² with 1200 W
- For indoor or outdoor use even in the rain
- Remote control supplied for 866NRC
- Wall and suspension support with chains
- IP55 protection
Standard Equipment
- Heat lamp bulb - type IR-A FROZEN
- Suspension chains 45 cm
- Wall mount
Technical Data
| Modello | 866N | 866NRC |
| Food | 230V | 230V |
| Bulb | Frozen | Frozen |
| Power | 1.2 kW | 1.2 kW |
| Spectro Luce | IRAN | IRAN |
| Infrared Radiation | Short Wave | Short Wave |
| Protection Class | IP55 | IP55 |
| On/off switch | Yes | Yes |
| Stima Tempo Vita Bulb | 5000 h | 5000 h |
| Area di Riscaldamento | 4÷6 m² | 4÷6 m² |
| Remote control | NODE | SI |
| Catene per Sospensione | INCLUDES | INCLUDES |
| Wall Support | INCLUDED | INCLUDED |
| Dimensions | 72 x 12 x 8 cm | 72 x 12 x 8 cm |
| Weight | 1.0 kg | 1.0 kg |
Technical Data
| Modello | 866N | 866NRC |
| Food | 230V | 230V |
| Bulb | Frozen | Frozen |
| Power | 1.2 kW | 1.2 kW |
| Spectro Luce | IRAN | IRAN |
| Infrared Radiation | Short Wave | Short Wave |
| Protection Class | IP55 | IP55 |
| On/off switch | Yes | Yes |
| Stima Tempo Vita Bulb | 5000 h | 5000 h |
| Area di Riscaldamento | 4÷6 m² | 4÷6 m² |
| Remote control | NODE | SI |
| Catene per Sospensione | INCLUDES | INCLUDES |
| Wall Support | INCLUDED | INCLUDED |
| Dimensions | 72 x 12 x 8 cm | 72 x 12 x 8 cm |
| Weight | 1.0 kg | 1.0 kg |
