LEGENDA
| IP | First digit – Protection against solid objects | Second digit – Protection against water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Solid objects ≥ 50 mm | Vertical dripping |
| 2 | Solid objects ≥ 12.5 mm | Dripping when tilted (15°) |
| 3 | Solid objects ≥ 2.5 mm | Water spray |
| 4 | Solid objects ≥ 1 mm | Water splashes |
| 5 | Dust protected (partial) | Water jets |
| 6 | Dust tight | Powerful water jets |
GH SOL-1200XL / SOL-1800XL Carbon
Carbon Fiber Heat Lamps
230V - 1,2÷1,8 kW
IP24 - Interni
Luce Rossa Rubino
€429.00
- €100.00
€329.00
€269.67 tax excl.

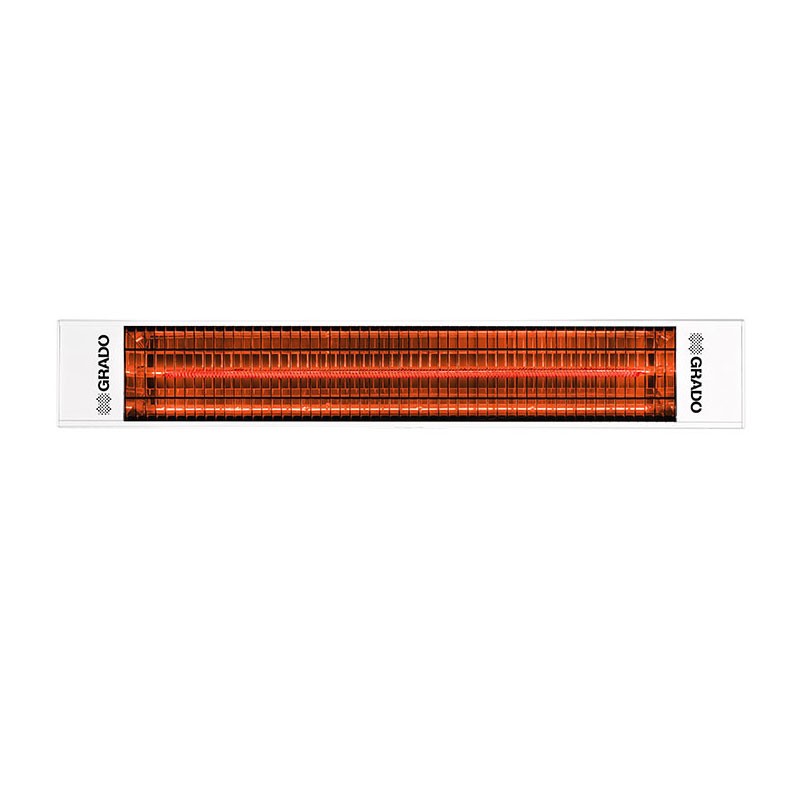

GH SOL-1200XL / SOL-1800XL Carbon - Carbon Fiber Heat Lamps
The SOL-1800XL CARBON and SOL-1200XL CARBON are professional infrared heaters designed for residential and commercial applications requiring high thermal efficiency, continuous reliability, and industrial-grade construction. These carbon fiber IR radiant heaters feature an extra-long XL lamp , designed to ensure uniform dual-lobe heat emission and superior performance compared to standard IR systems.
These professional infrared heaters are ideal for localized heating of rooms from 12 to 22 m² , suitable for fixed or semi-mobile indoor installations. The one-piece extruded aluminum reflector with a highly reflective Specular Tex® reflector is a distinctive feature that maximizes the conversion of electrical energy into useful heat, reducing heat loss.
Available Models
- SOL-1200XL CARBON - 1200 W - Current draw 4.5 A
- SOL-1800XL CARBON - 1800 W - Current draw 6.8 A
Both models are available in your choice of white or anthracite .
It is also available on request in Corten Steel .
CARBON FIBER LAMP
The carbon fiber lamp is an advanced heating element , characterized by rapid and uniform heating . It ensures targeted heat penetration , high energy efficiency, and a long operating life. This type of lamp is ideal for professional heating of residential and commercial spaces because it allows you to quickly warm people and surfaces without dispersing heat into the surrounding air, optimizing consumption and performance.
Technical Specifications
The SOL-1800XL CARBON and SOL-1200XL CARBON models operate on a single-phase 230V power supply and use an XL carbon fibre infrared lamp . The design complies with the regulations on reduced ROA emissions , in line with Legislative Decree 81/08 and Directive 2006/25/EC, making the product suitable for continuous professional installations.
The dual-lobe IR emission allows for effective and targeted heat distribution. The continuously polished and electro-polished aluminum reflector ensures high reflectivity , while the heavy-weight, scratch-resistant epoxy powder coating guarantees mechanical resistance and durability , even under intensive use. The structure is designed, built, and assembled by hand in Italy, using 60/40 extruded aluminum alloy, synonymous with industrial reliability.
Isotherm SOL-1200XL Carbon
Isotherm SOL-1800XL Carbon
Functional Specifications
High Efficiency Specular Tex® Reflector
The Specular Tex® polished aluminum reflector increases the concentration of the heat flow towards the useful area, improving the performance of infrared radiant heaters and reducing lateral heat dispersion.
Monoblock Structure in Extruded Aluminum
The interchangeable monoblock reflective body in extruded aluminum ensures structural strength, lightness and ease of maintenance, fundamental characteristics in professional heaters for commercial and residential use.
Scratch-resistant for intensive use
The smooth epoxy powder coating guarantees advanced surface protection, making SOL-XL CARBON infrared heaters suitable even for high-frequency use and installation under lightweight structures.
Professional Indoor Applications
The SOL-1800XL CARBON and SOL-1200XL CARBON are ideal for heating smoking areas, modular offices, containers, campers, gazebos, pergolas, verandas, bars, restaurants and residential environments, representing an efficient infrared heating solution for professionals in the sector.
Double Lobe Emission
Dual-lobe heating refers to a particular thermal emission configuration in which infrared heat is distributed across two symmetrical main beams , rather than concentrated in a single central point. This solution allows for wider and more uniform coverage of the heated area, reducing localized heat peaks and improving perceived comfort.
Installation Tips
Wall installation (heater tilted downwards with variable angle)
• DS* minimum distance from ceiling: SOL-1200XL 25 m / SOL-1800XL 30 cm
• DP* minimum distance from the side wall: 50 cm
• H* distance from the floor suggested: SOL-1200XL min 2 m max 2.8 m / SOL-1800XL min 2.2 m max 3 m
*Values refer to a single element in a typical environment. Values measured in the laboratory. Custom sizing is recommended for each specific application.
Dimensions
Technical Data
| Model | SOL-1200XL CARBON | SOL-1800XL CARBON |
| Power Supply | 230V | 230V |
| Nominal Power | 1200 W | 1800 W |
| Absorption | 4.5 A | 6.8 A |
| Lamp | Carbon Fiber | Carbon Fiber |
| Bulb Life Estimation | 6000 h | 6000 h |
| Degree of Protection | IP24 | IP24 |
| Dimensions | 80.6 x 7.7 x 13 cm | 80.6 x 7.7 x 13 cm |
| Weight | 3 kg | 3 kg |
Technical Data
| Model | SOL-1200XL CARBON | SOL-1800XL CARBON |
| Power Supply | 230V | 230V |
| Nominal Power | 1200 W | 1800 W |
| Absorption | 4.5 A | 6.8 A |
| Lamp | Carbon Fiber | Carbon Fiber |
| Bulb Life Estimation | 6000 h | 6000 h |
| Degree of Protection | IP24 | IP24 |
| Dimensions | 80.6 x 7.7 x 13 cm | 80.6 x 7.7 x 13 cm |
| Weight | 3 kg | 3 kg |
