GH BHM-1500 / BHM-3000
Infrared Heating Lamps
230V - 1,5÷3 kW
IP24 - Interni
Luce Rossa Rubino
GH BHM-1500 / BHM-3000 - Infrared Heating Lamps with Extended Length
The BHM-1500 and BHM-3000 infrared heaters are professional infrared heaters designed for industrial and commercial applications requiring highly efficient infrared heating. Both models use short-wave halogen IR lamps, ideal for professional direct heating of indoor or covered outdoor spaces, production processes, and workstations.
The interchangeable monoblock reflector in electro-polished Specular Tex® aluminum guarantees high thermal output and optimized symmetrical diffusion . BHM industrial infrared lamps are designed and handcrafted in Italy , with low ROA emission and a resistant finish for continuous professional use.
Available Models
- BHM-1500 - 1500 W - Current draw 6.4 A
- BHM-3000 - 2000 W - Current draw 11.3 A

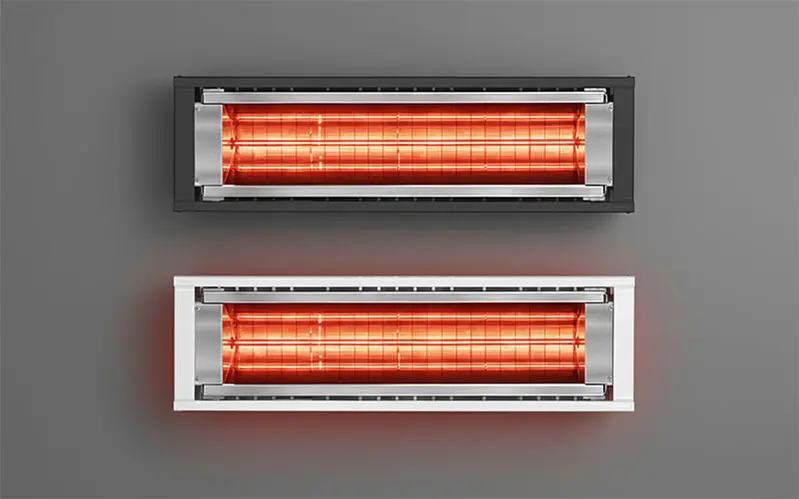

Both models are available in Marble White or Anthracite Grey and are sold complete with wall brackets .
Shortwave infrared
Shortwave infrared lamps are the most common type, capable of instantaneous heating (average response time 0.1/1 second) and with a high air penetration capacity . Shortwave lamps generally have a wavelength of 0.8–1.4 µm (very penetrating), thus penetrating the air better and making them ideal for open or ventilated environments such as factories, but also for the exteriors of bars and restaurants.
The heat produced is more superficial than that of medium wave lamps.
Technical Specifications
The BHM-1500 and BHM-3000 professional infrared lamps have a single-phase 230V power supply and are supplied with a Teflon cable coated in silicone fiberglass, suitable for high temperatures. Each industrial infrared heater comes complete with a 3-meter power cable and a German plug , for immediate installation.
Heating performance is guaranteed by the short-wave IR lamp combined with the high-reflectivity reflector , which maximizes the efficiency of professional infrared heating. The scratch-resistant embossed epoxy paint makes the product suitable for outdoor applications, in compliance with Legislative Decree 81/08 and Directive 2006/25/EC.
GHM-1500 Measured Isotherms
GHM-3000 Measured Isotherms
Functional Specifications
High Reflectance Specular Tex® reflector
The Specular Tex® electropolished aluminum reflector optimizes the performance of industrial infrared lamps, ensuring uniformity and control of heat radiation . The scratch-resistant epoxy-coated structure and interchangeable one-piece body make these infrared heating lamps suitable for demanding professional environments.
Diffusing or concentrating optics (on request)
BHM professional IR lamps are supplied with standard diffusing optics and can be configured with concentrating optics upon request, adapting the infrared heater to specific application needs.
Italian Production and Regulatory Compliance
Each BHM professional infrared heater is designed and assembled in Italy , with reduced ROA emission , standard color Marble White RAL 9003 and the possibility of color customization on request.
Installation Tips
Ceiling installation (heater facing downwards)
• DS minimum distance from the ceiling: 10 cm
• DP minimum distance from the side wall: 50 cm
Wall installation (heater tilted downwards with variable angle)
• DS* minimum distance from the ceiling: 20 cm
• DP* minimum distance from the side wall: 10 cm
• H* suggested distance from the floor: BHM-1500 min 3 m max. 4.5 m / BHM-3000 min 4 m max. 5.5 m
*Values refer to a single element in a typical environment. Values measured in the laboratory. Custom sizing is recommended for each specific application.

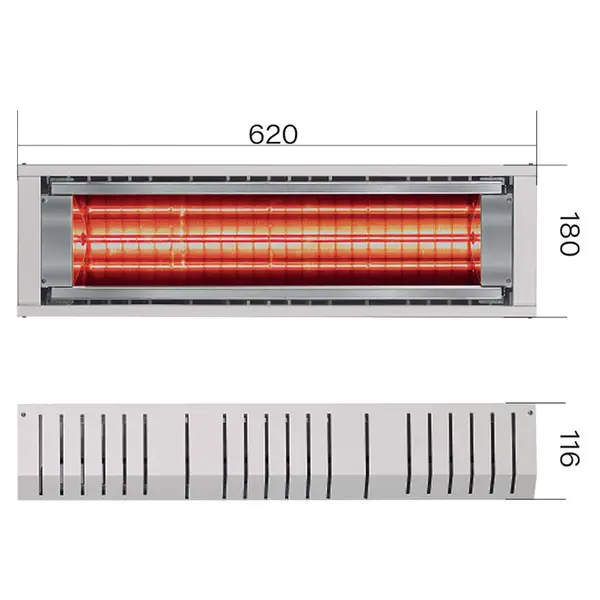

Dimensions
Technical Data
| Model | BHM-1500 | BHM-3000 |
| Power Supply | 230V | 230V |
| Nominal Power | 1500 W | 3000 W |
| Absorption | 6.4 A | 11.3 A |
| Emission Type | Short Wave | Short Wave |
| Bulb Life Estimation | 5000 h | 5000 h |
| Degree of Protection | IP24 | IP24 |
| Dimensions | 62 x 11.6 x 18 cm | 62 x 11.6 x 18 cm |
| Weight | 4 kg | 4 kg |
